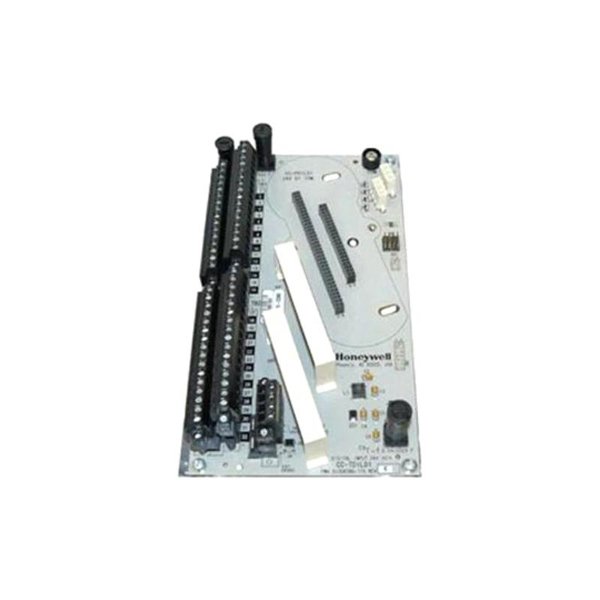

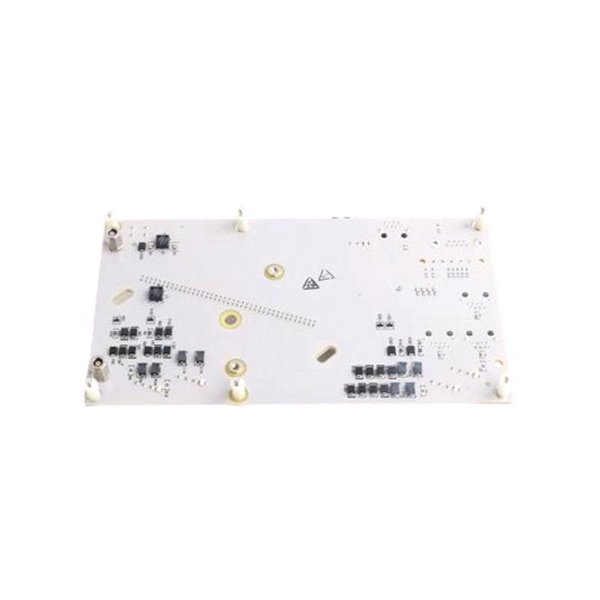

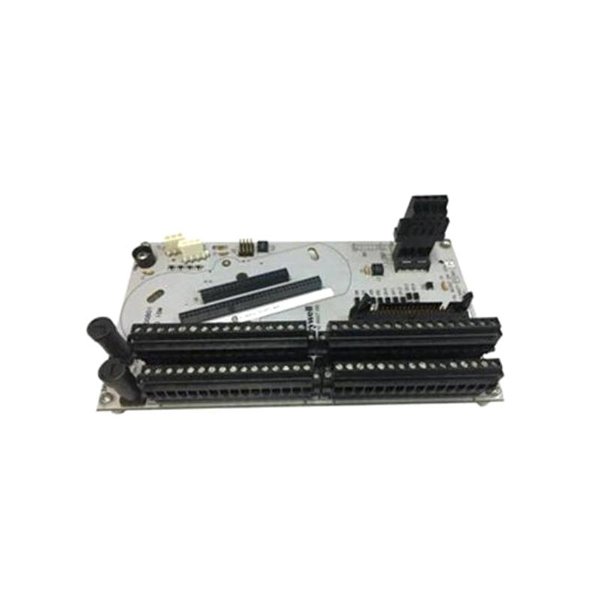

The Honeywell CC-GAOX21 is a Gas Insulated/Intrinsically Safe (GI/IS) Analog Output Module meticulously engineered for deployment in hazardous environments. It delivers a 4-20mA analog output signal proportional to the measured process variable, ensuring precise control and monitoring in industrial applications. This module is compatible with a range of Honeywell transmitters, including those for pressure, temperature, and flow measurements.

Product Specifications

Applications

The Honeywell CC-GAOX21 module is versatile and suitable for various industrial applications, including:

1. Industrial Safety: Provides reliable analog output signals for monitoring and controlling safety systems in hazardous environments.

2. Environmental Monitoring: Facilitates accurate data transmission for environmental sensors measuring variables like gas concentrations.

3. HVAC Systems: Ensures precise control in heating, ventilation, and air conditioning systems by delivering consistent analog signals.

4. Process Control: Integral in process industries for transmitting accurate control signals to actuators and control systems.

Advantages

• Intrinsically Safe Design: Engineered for use in hazardous locations, minimizing the risk of ignition.

• High Accuracy: Delivers output with an accuracy of ±0.5% of full scale, ensuring precise process control.

• Robust Construction: IP66-rated enclosure offers protection against dust and powerful water jets, suitable for harsh environments.

• Wide Operating Range: Functions effectively in extreme temperatures ranging from -40°C to 80°C.

• Compatibility: Seamlessly integrates with various Honeywell transmitters, including pressure, temperature, and flow devices.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Honeywell CC-GAOX21 Analog Output Module?

   • The module provides a 4-20mA analog output signal proportional to a measured process variable, facilitating accurate control and monitoring in industrial applications.

2. Is the CC-GAOX21 suitable for hazardous environments?

   • Yes, it features a Gas Insulated/Intrinsically Safe design, making it ideal for use in hazardous locations.

3. What types of transmitters are compatible with the CC-GAOX21?

   • It is compatible with various Honeywell transmitters, including those measuring pressure, temperature, and flow.

4. What is the accuracy of the CC-GAOX21 module?

   • The module offers an accuracy of ±0.5% of full scale, ensuring precise signal transmission.

5. What are the operating temperature limits for the CC-GAOX21?

   • It operates effectively within a temperature range of -40°C to 80°C (-40°F to 176°F).

6. What is the enclosure rating of the CC-GAOX21?

   • The module has an IP66 rating, indicating it is dust-tight and protected against powerful water jets.

7. How much does the CC-GAOX21 weigh?

   • The module weighs 1 kg.

8. What is the humidity tolerance of the CC-GAOX21?

   • It can operate in environments with 0% to 95% relative humidity, non-condensing.

9. Is the CC-GAOX21 easy to install and maintain?

   • Yes, it is designed for straightforward installation and maintenance.

10. What is the warranty period for the CC-GAOX21 module?

    • The module typically comes with a 12-month warranty.
