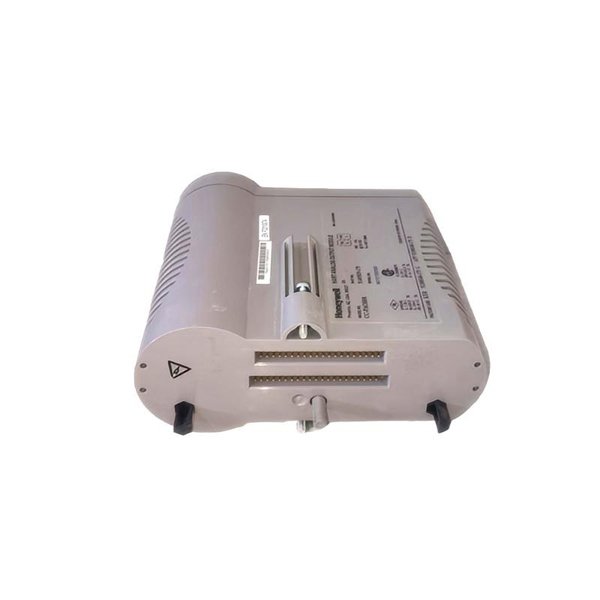

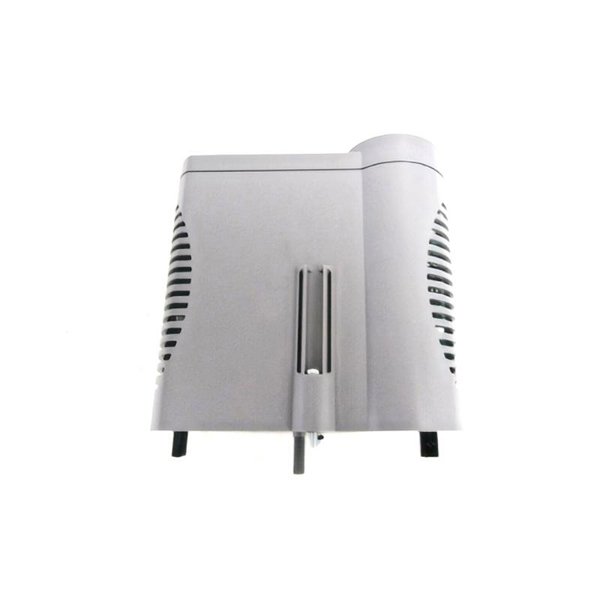

The Honeywell CC-PAOH01 51405039-175 Analog Output Module is a critical component designed for use in Honeywell’s Experion Process Knowledge System (PKS) and other industrial automation environments. This module converts digital control signals into precise analog output signals, which are essential for controlling actuators, valves, and other field devices.

Engineered to deliver high accuracy and reliability, the CC-PAOH01 supports multiple analog output channels with fine signal resolution, enabling tight process control and improved system responsiveness. Its rugged design is optimized for industrial conditions, with comprehensive diagnostics to detect output failures or signal deviations.

Thanks to its modular architecture, the CC-PAOH01 is easy to install, maintain, and integrate into existing control racks, making it an ideal choice for enhancing control system performance and reliability in a wide range of industries.

Product Specifications

Product Applications

• Process Control: Used to deliver precise analog control signals to valves, actuators, and other field devices in industrial process control systems.

• Power Plants: Regulates equipment like turbine controls and boiler feed pumps by providing accurate analog outputs.

• Chemical and Petrochemical Industries: Enables precise control of fluid flow, pressure, and temperature through analog signal modulation.

• Pharmaceutical Manufacturing: Facilitates fine-tuned control of manufacturing equipment to maintain product quality and compliance.

• Water and Wastewater Treatment: Supports control of pumps, mixers, and valves for optimized water processing.

• Oil and Gas: Controls process equipment in refineries and pipelines to ensure safety and efficiency.

Product Advantages

• High Precision Output: Offers ±0.1% accuracy, enabling fine control of process variables.

• Multiple Channels: 8 analog output channels increase system flexibility and reduce rack space requirements.

• Fast Response: Sub-10 ms response time ensures real-time control for dynamic processes.

• Robust Build: Designed to operate reliably under harsh industrial environments with high humidity and temperature variations.

• Diagnostic Features: Continuous monitoring of output circuits to detect faults and reduce downtime.

• Easy Integration: Compatible with Honeywell Experion PKS and other Honeywell control systems for seamless system expansion.

• Compact Modular Design: Space-saving form factor allows for efficient system configuration and easier maintenance.

• Stable and Noise-Resistant: Signal conditioning and filtering reduce interference for stable output signals.

Frequently Asked Questions (FAQ)

1. What type of output signals does the CC-PAOH01 module provide?

   It provides 4-20 mA analog current output signals.

2. How many output channels does this module support?

   The module supports 8 analog output channels.

3. What is the output signal accuracy?

   The accuracy is ±0.1% of the output span.

4. Is the module compatible with Honeywell Experion PKS?

   Yes, it integrates fully with Honeywell Experion PKS and related systems.

5. What power supply voltage is required?

   The module requires a 24 V DC power supply from the mainframe rack.

6. What is the operating temperature range?

   The module is rated to operate from 0°C to 60°C.

7. Does the module include diagnostics for fault detection?

   Yes, it features built-in diagnostics for output circuit monitoring.

8. What are the physical dimensions of the module?

   Dimensions are 139 x 114 x 45 mm.

9. What is the response time for output signals?

   The module has a response time of less than 10 milliseconds.

10. Can this module be used in safety-critical control loops?

    While reliable, its use in safety-critical loops depends on the overall system design and additional safety components.
