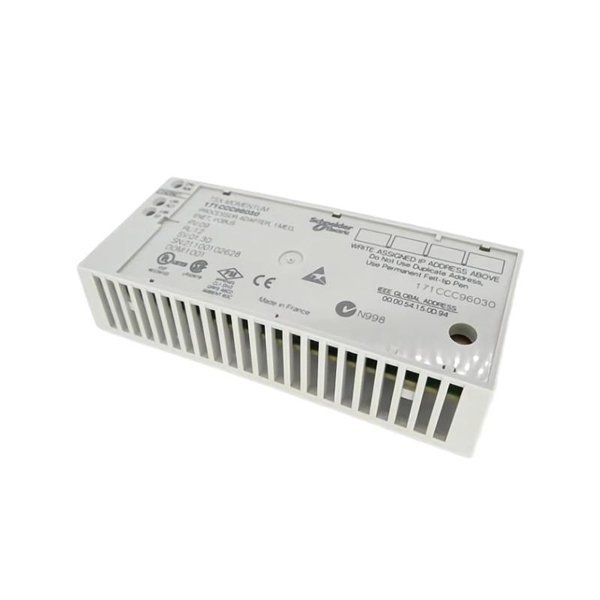

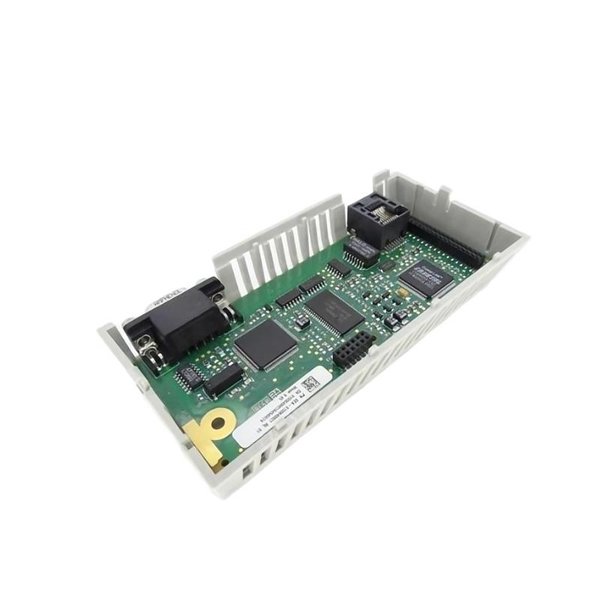

Manufacturer:Schneider
Product Number:171CCC96030
Product Type:M1/M1E Processor Adaptor
Origin:France
Dimensions:60 x 180 x 260 mm
Weight:0.042 kg
Views:47
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
The Schneider Electric 171CCC96030 is a high-performance M1/M1E Processor Adapter, designed to integrate and optimize Modicon M1/M1E controllers into your automation environment. This adapter plays a vital role in connecting the M1/M1E processors to various network and I/O modules, providing a smooth interface for communication and control within complex automation systems.
The 171CCC96030 processor adapter is typically used in combination with the Modicon M1 or M1E series of controllers, enabling users to extend functionality across industrial networks. With its robust design and reliable connectivity, the adapter ensures seamless operation in real-time applications that demand high-speed processing and accuracy.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Model | 171CCC96030 |
| Series | Modicon M1/M1E |
| Processor Compatibility | Modicon M1, M1E Controllers |
| Interface Type | Ethernet, Serial, or Proprietary (depends on configuration) |
| Data Rate | High-speed processing, network communication up to 1 Gbps |
| Communication Protocol | Modbus TCP/IP, Ethernet/IP, or Custom Schneider Protocol |
| Power Supply | 24 V DC |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 60 x 180 x 260 mm |
| Weight | 0.042 kg |
| Status Indicators | LED indicators for operational status and error monitoring |
| Certification | CE, UL, RoHS Compliance |
The 171CCC96030 M1/M1E Processor Adapter is widely used across various industrial automation systems, including:
Manufacturing Automation
Used in controlling robotic arms, conveyors, and assembly lines, ensuring precision and real-time performance.
Building Management Systems
Integrating HVAC, lighting, and security systems to enable centralized monitoring and control.
Energy Management Systems
Facilitates the collection and analysis of data from various energy sources to optimize energy consumption.
Process Control Systems
Ensures smooth, real-time control over manufacturing processes in industries like chemicals, pharmaceuticals, and food production.
Material Handling
Integrates with conveyor systems and warehouses for efficient inventory management and distribution.
Renewable Energy
Helps in managing solar or wind energy systems by collecting real-time data and controlling inverters and storage.
Seamless Integration
This adapter provides easy integration with Modicon M1/M1E processors, enabling enhanced communication with various field devices, including I/O modules, sensors, and actuators.
Flexible Communication
The 171CCC96030 supports multiple communication protocols such as Modbus TCP/IP, Ethernet/IP, and other proprietary protocols, making it versatile for different network environments.
High-Speed Data Processing
It ensures efficient data exchange between networked devices, processing data at high speeds to support demanding industrial automation applications.
Compact and Robust
The compact size makes it suitable for installation in environments where space is limited. Its robust design ensures reliable performance even in harsh industrial settings.
Enhanced Diagnostics
It provides detailed LED indicators for diagnostics, simplifying troubleshooting and maintenance.
Energy Efficient
Consumes low power while providing high-performance capabilities, making it an energy-efficient choice for industrial applications.
What is the main purpose of the Schneider 171CCC96030 Processor Adapter?
It is used to connect the Modicon M1/M1E processors to various network and I/O modules, enabling real-time communication and data exchange.
Is the adapter compatible with all Modicon processors?
No, it is specifically designed for use with Modicon M1 and M1E controllers.
What are the supported communication protocols?
It supports Modbus TCP/IP, Ethernet/IP, and Schneider Electric’s proprietary protocols.
What power supply does the adapter require?
The adapter operates on a 24 V DC power supply.
Can the 171CCC96030 be used with other brands of PLCs?
No, it is tailored for use with Modicon M1/M1E controllers from Schneider Electric.
What is the maximum data processing rate?
The adapter supports high-speed data transfer up to 1 Gbps, depending on the configuration.
What is the operating temperature range of the module?
It can operate within a temperature range of 0°C to 60°C.
How is the adapter mounted?
The 171CCC96030 can be easily mounted on a DIN rail.
Is the module IP-rated for industrial environments?
Yes, it has an IP20 rating, suitable for indoor use in typical industrial environments.
Is the adapter energy-efficient?
Yes, the adapter is designed to consume low power while offering high performance for automation systems.
