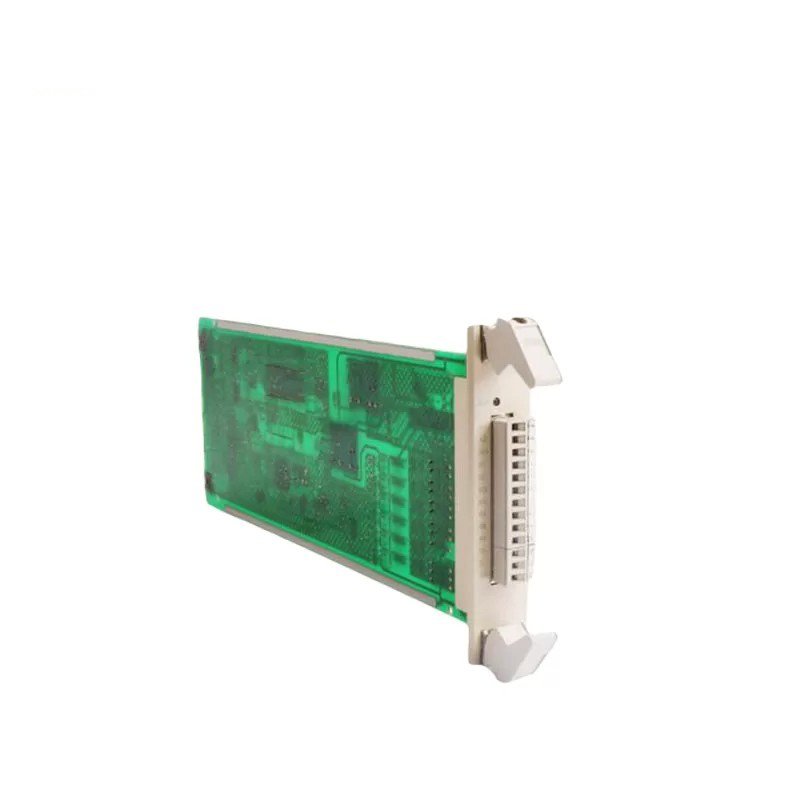

ABB 70BT01C Bus Transmitter

The ABB 70BT01C is a bus transmitter used within ABB’s PROCONTROL P bus system. It is specifically designed to integrate a PROCONTROL-PS protection system with the main PROCONTROL control system.

Features

• Connects seamlessly: Integrates protection system signals into the P bus.
• Signal conversion: Converts protection system signals for P bus compatibility.
• Isolation: Provides galvanic isolation between systems for safety.
• Signal versatility: Supports a wide range of protection system signals.
• Easy setup: Simple installation and configuration process.

Technical Specifications

• Power supply: 24 VDC
• Consumption: < 10 W
• Input signals: Up to 32 binary or analog
• Output signals: 32 PROCONTROL P bus signals
• Operating temperature: -20 to +60 °C
• Humidity: 0 to 95% RH (non-condensing)
• Dimensions: 190 x 130 x 60 mm
• Weight: 2 kg

Applications

• Power generation
• Oil and gas
• Chemical processing
• Pulp and paper
• Water and wastewater treatment

Benefits

• Improved system reliability and safety
• Reduced complexity
• Simplified maintenance
• Cost-effective solution
