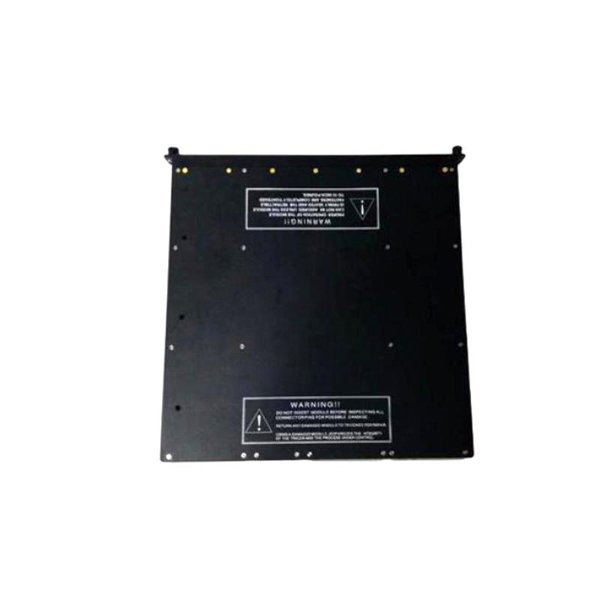

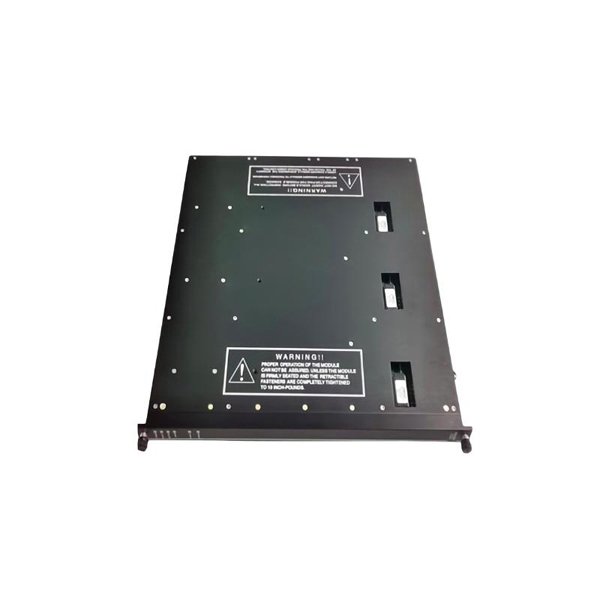

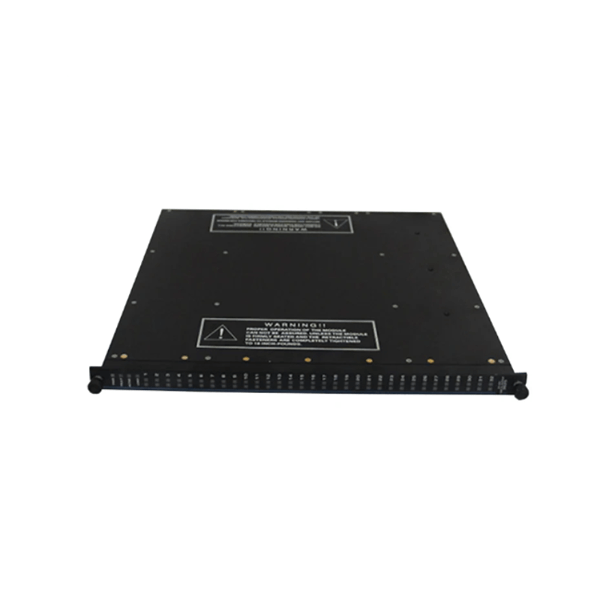

The Triconex 3564 Digital Input Module is a high-integrity input interface designed to serve critical control and safety applications in industrial automation environments. As part of the Triconex Tricon™ safety and control system, the 3564 module plays a vital role in collecting real-time digital signals from field devices and transmitting them securely to the central processing unit (CPU).

This module is engineered with a focus on fault tolerance, offering triple modular redundancy (TMR) to ensure uninterrupted operation even in the event of a hardware failure. Whether used in emergency shutdown systems (ESD), fire and gas systems (F&G), or turbine control, the 3564 provides unmatched reliability and long-term operational confidence.

Product Specifications

Product Applications

The Triconex 3564 is primarily deployed in industries where safety and uptime are critical. Key application domains include:

• Oil and Gas: Emergency shutdown, blowout preventer (BOP) control, and pipeline integrity monitoring.

• Power Generation: Boiler safety, turbine overspeed protection, and load shedding systems.

• Chemical and Petrochemical: Hazardous reaction control, tank level monitoring, and interlock safety.

• Water and Wastewater: Pump control and flood prevention in critical infrastructure.

• Pharmaceutical and Food Processing: Safety interlocks and production line emergency stops.

Product Advantages

• High Reliability: Triple Modular Redundancy (TMR) ensures no single point of failure can compromise system operation.

• Hot Swapping: Modules can be replaced without interrupting the system—ideal for 24/7 operations.

• Built-In Diagnostics: Continuous internal health checks with LED status indicators ensure real-time fault awareness.

• Certified Safety: Complies with international standards including SIL3, making it suitable for the highest safety integrity levels.

• Flexible Configuration: Debounce filtering and input range settings offer enhanced control adaptability.

• Wide Compatibility: Seamlessly integrates with other Triconex modules and programmable logic controllers (PLCs).

FAQ

1. What type of input signals does the Triconex 3564 accept?

   It accepts 0–32 VDC digital input signals, suitable for a wide range of field devices.

2. Can the 3564 module be hot-swapped?

   Yes, the module supports hot-swapping without affecting system uptime.

3. Is the Triconex 3564 SIL certified?

   Yes, it is certified for SIL3 as per IEC 61508 standards.

4. How many channels does it support?

   The 3564 module supports 32 independent input channels.

5. What safety systems is it compatible with?

   It’s compatible with ESD, F&G, BMS, and other mission-critical safety systems.

6. Does it support diagnostics?

   Yes, it features comprehensive diagnostics and real-time status LEDs.

7. What is the typical input current?

   2.5 mA per channel at 24 VDC input voltage.

8. What environmental conditions can it operate in?

   It operates within -20°C to +60°C and up to 95% RH.

9. Is the module isolated?

   Yes, each channel is isolated from the system bus by 1500 VDC.

10. How is the module mounted?

    It is mounted in a Tricon chassis, as part of a larger TMR architecture.
