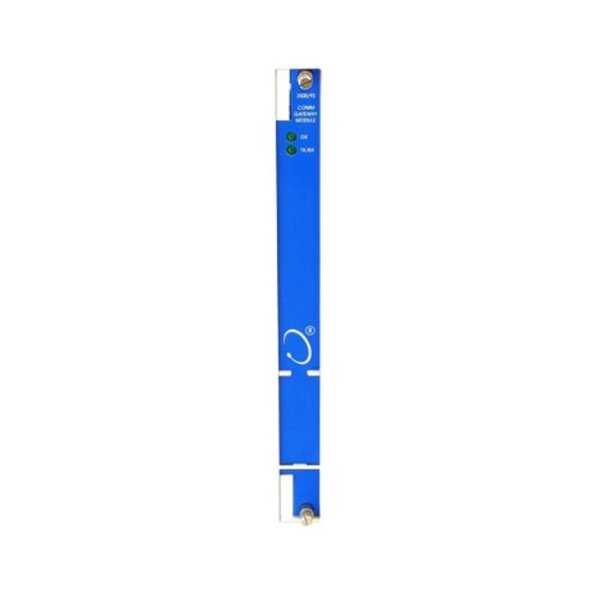

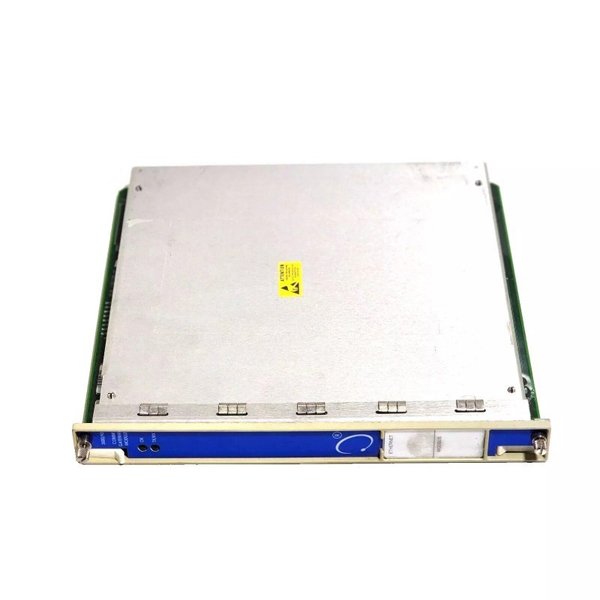

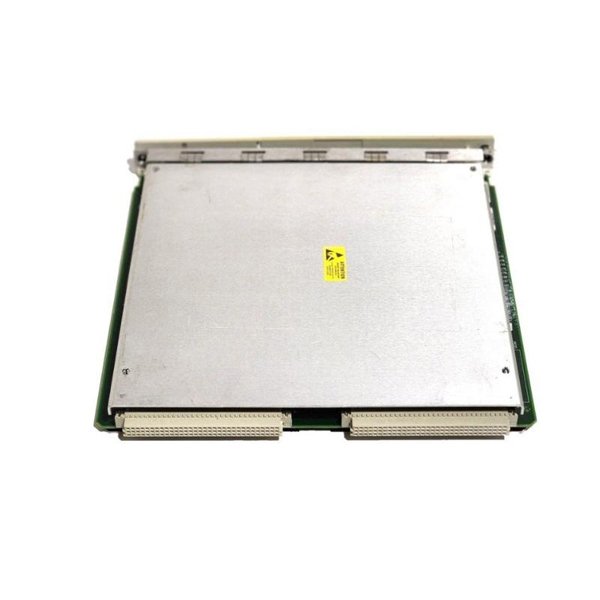

The Bently Nevada 3500/92-04-01 Communication Gateway Module enables the integration of 3500 Series system data into plant-wide monitoring and automation networks. Supporting Modbus serial, Modbus TCP/IP, and proprietary Bently Nevada Ethernet protocols, it facilitates real-time data exchange, status monitoring, and control system integration. It also connects with configuration and data acquisition software via Ethernet.

Applications

• Machinery protection and monitoring systems

• Integration with Distributed Control Systems (DCS)

• Data acquisition for rotating equipment

• Oil & gas, power generation, petrochemical plants

• Marine and offshore platforms

• Condition monitoring systems requiring Modbus TCP or Serial communication

Advantages

• Supports multiple communication protocols (Modbus RTU, TCP, Bently Ethernet)

• High-speed data access from all modules in the rack

• LED indicators for quick status verification

• Compatible with existing 3500/90 infrastructure

• Rugged design for harsh industrial environments

• Modular I/O options to meet varied installation requirements

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: What protocols are supported by the 3500/92-04-01?

A: It supports Modbus RTU (RS232/RS485), Modbus TCP/IP, and Bently Nevada Host Protocol.

Q2: Is the module compatible with older 3500/90 systems?

A: Yes, with the exception of the original primary value Modbus registers, which are now replaced by a Configurable Modbus Register Utility.

Q3: What are the communication interface options?

A: Ethernet (RJ-45, 10BASE-T), RS232, RS422, and RS485.

Q4: Can it connect directly to configuration software?

A: Yes, it communicates directly with Bently Nevada 3500 Configuration and Data Acquisition Software via Ethernet.

Q5: What’s the update rate of data acquisition?

A: It collects data from all rack modules in ≤1 second, depending on rack configuration.

Q6: What environmental conditions can it withstand?

A: Operating range from -30°C to +65°C; humidity up to 95% non-condensing.

Q7: What is the power requirement?

A: 5.0W for RS232/RS422, and 5.6W for RS485 configurations.

Q8: Does it have LED indicators?

A: Yes, there are OK and TX/RX LEDs for operational and communication status.

Q9: How much rack space is needed?

A: One full-height slot in the front and one in the rear.

Q10: Is it certified for hazardous area installation?

A: Yes, it has CSA, ATEX, IECEx, and marine certifications for use in hazardous areas.
