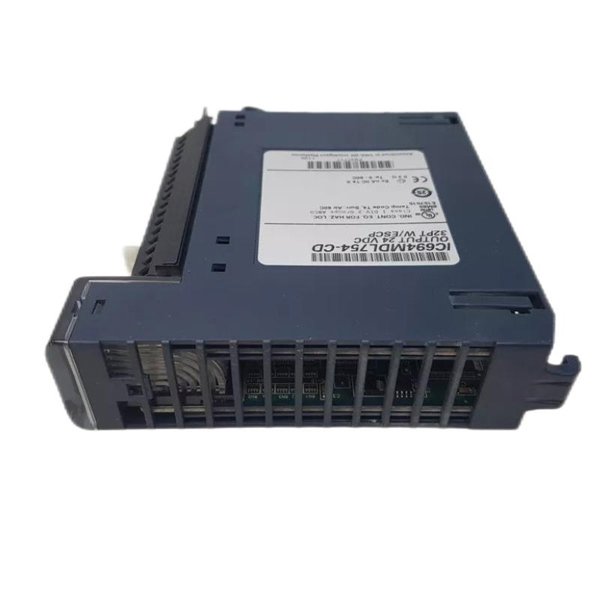

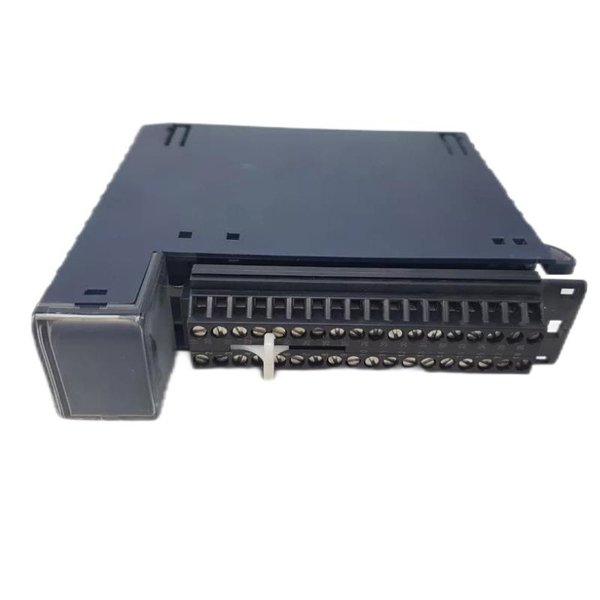

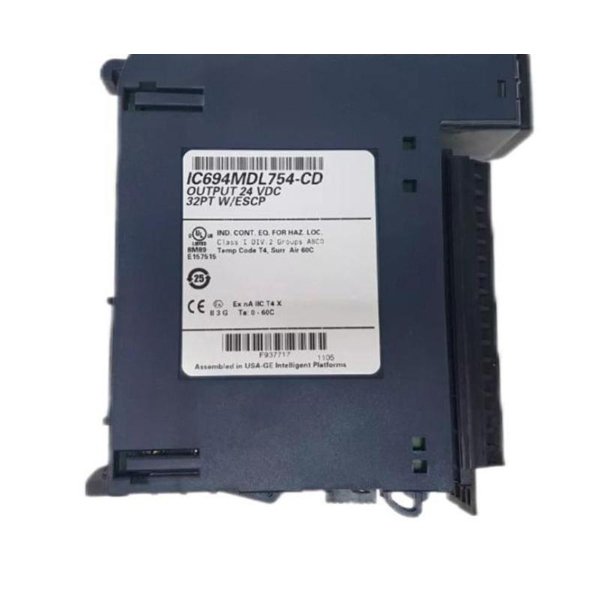

The GE Fanuc IC694MDL754-CD is a high-performance Voltage Output Module developed for the GE PACSystems RX3i programmable automation controller (PAC) platform. This module provides 8 analog voltage output channels, each capable of delivering precise voltage signals within industry-standard ranges. It is commonly used to control field devices such as valves, drives, dampers, indicators, and analog actuators that rely on analog voltage signals for operation.

Designed for precision, reliability, and integration flexibility, the IC694MDL754-CD features software-configurable output ranges, channel-to-channel isolation, and advanced diagnostics, making it suitable for demanding industrial control applications.

Key Features

• 8-channel analog voltage output for interfacing with voltage-driven devices

• Software-configurable voltage ranges (e.g., 0–10 V, ±10 V)

• High-resolution digital-to-analog conversion for precise signal output

• Channel-to-channel and channel-to-backplane isolation

• Supports hot-swap functionality in RX3i I/O racks

• Overvoltage and short-circuit protection on each output

• Removable terminal block for simplified installation and maintenance

• LED indicators for module status and per-channel fault monitoring

• Compatible with GE Proficy Machine Edition software for configuration

• Designed for long-term reliability in industrial automation systems

Technical Specifications

Industry Applications

The IC694MDL754-CD module is suitable for a variety of industrial sectors requiring high-precision voltage control:

• Manufacturing Automation – Analog control of production machines and robotics

• Oil & Gas – Signal output to valves and instrumentation in hazardous zones

• Power & Energy – Analog output for monitoring and controlling turbines and energy systems

• Water & Wastewater – Output control for dosing pumps, flow valves, and monitoring instruments

• HVAC & Building Automation – Voltage control for dampers, fans, and thermal systems

• Pharmaceuticals and Food Processing – Analog output for dosing and mixing operations

Product Advantages

• High-resolution analog output for fine-tuned process control

• Software-configurable ranges allow versatility across multiple applications

• Strong electrical isolation enhances signal integrity and equipment protection

• Diagnostic feedback per channel aids rapid fault identification

• Hot-swappable design simplifies maintenance and minimizes downtime

• Compact footprint conserves rack space in control panels

• Wide operational temperature range allows deployment in harsh environments

• Backed by GE’s industrial automation legacy for quality and support

Frequently Asked Questions (FAQ)

1. What devices can I control with the IC694MDL754-CD?

It can control any industrial device that accepts analog voltage input, such as actuators, VFDs, dampers, and valves.

2. How do I configure the output voltage range?

Use GE Proficy Machine Edition software to set the voltage range for each channel.

3. Can I hot-swap this module during operation?

Yes, the module is hot-swappable within RX3i systems, minimizing downtime.

4. Does each channel have its own isolation?

Yes, the module provides channel-to-channel isolation, improving signal integrity.

5. What happens if a channel experiences a short circuit?

The module has short-circuit protection and will flag the issue using diagnostic LEDs.

6. Can I mix voltage ranges on different channels?

Yes, channels can be independently configured for different voltage ranges.

7. What’s the resolution of the output signal?

The module offers 16-bit resolution, ensuring smooth and accurate signal control.

8. Is the terminal block field-removable?

Yes, for easy maintenance and replacement, the terminal block is removable.

9. Does this module support current output?

No, the IC694MDL754-CD is a voltage output-only module. For current outputs, other models are available.

10. Is it CE or UL certified?

Yes, it is certified under CE, UL, cUL, and RoHS standards.
