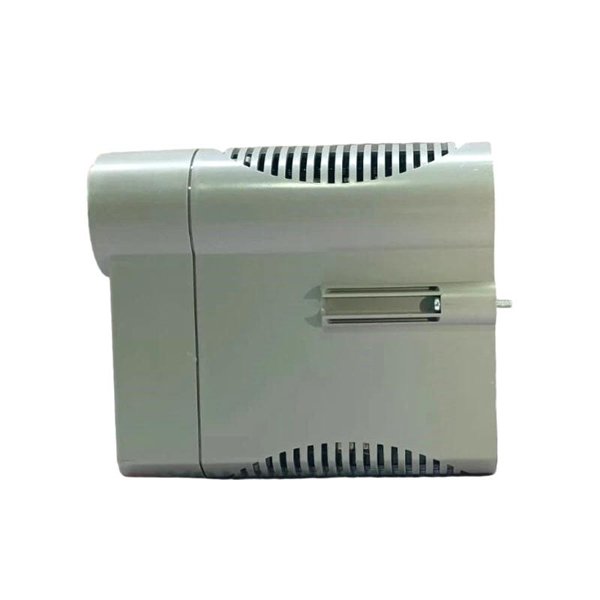

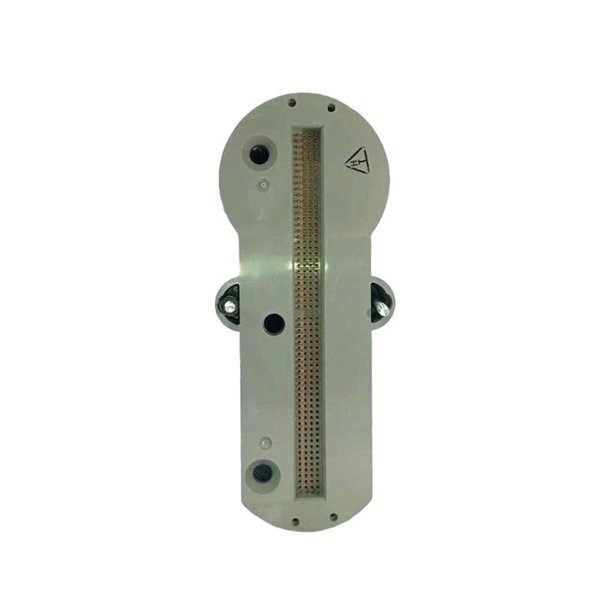

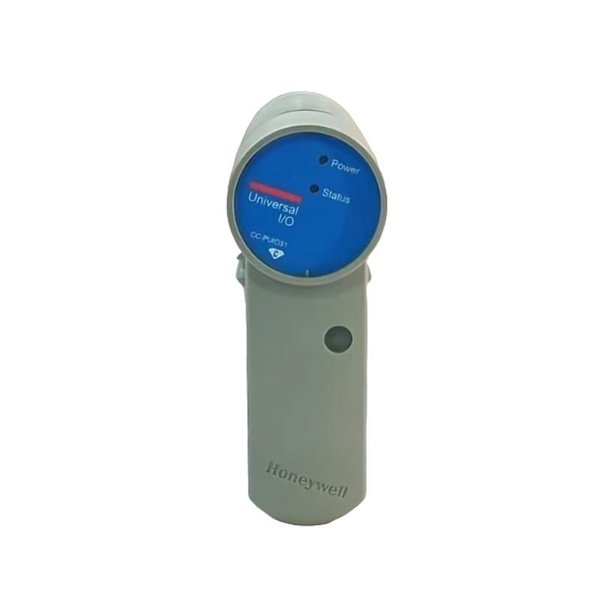

The Honeywell CC-PUI03 is a versatile Universal Input/Output (I/O) Module designed for industrial automation and process control applications. This module provides the capability to interface with a wide range of analog and digital signals, offering precise data acquisition, signal conditioning, and control flexibility.

Engineered for robust performance, the CC-PUI03 ensures reliable operation in demanding environments. Its universality allows seamless integration with Honeywell controllers, fieldbus networks, and distributed I/O systems. The module is widely adopted in industries such as oil & gas, power generation, chemical processing, and manufacturing for process monitoring and control.

Product Specifications

Product Applications

• Industrial Process Control: Interfaces analog and digital signals for process automation.

• Distributed Control Systems (DCS): Integrates with Honeywell and other DCS systems for flexible I/O expansion.

• Oil & Gas Industry: Monitors and controls flow, pressure, temperature, and other critical parameters.

• Power Generation: Connects sensors and actuators for turbine and generator monitoring.

• Chemical & Pharmaceutical Plants: Ensures accurate measurement and control of processing variables.

• Factory Automation: Facilitates modular and scalable I/O solutions for machinery and production lines.

Product Advantages

• Universal Signal Support: Handles analog, digital, thermocouple, and RTD signals.

• High Accuracy & Resolution: Ensures precise measurement and control with ±0.1% accuracy and 16-bit resolution.

• Flexible Configuration: Supports multiple input/output channels that can be configured for different applications.

• Robust Industrial Design: Designed to operate reliably in harsh temperature and humidity conditions.

• Diagnostics & Fault Reporting: Built-in LEDs and self-test routines enhance operational reliability.

• Seamless Integration: Compatible with Honeywell PLCs, DCS, and fieldbus systems.

• Scalable Solution: Suitable for both single-module installations and large distributed I/O networks.

FAQ

1. What signal types can the CC-PUI03 module support?

   It can handle analog signals (4–20 mA, 0–10 V), digital signals, thermocouples, and RTDs.

2. How many input and output channels does the module provide?

   The module provides 8 configurable analog/digital inputs and 4 configurable analog/digital outputs.

3. Can this module be integrated into Honeywell PLC systems?

   Yes, it is fully compatible with Honeywell PLCs and distributed control systems.

4. What is the accuracy and resolution of the module?

   The module provides ±0.1% of full-scale accuracy with 16-bit resolution.

5. Does the CC-PUI03 provide diagnostic features?

   Yes, it includes LED status indicators, self-test routines, and fault reporting capabilities.

6. Which communication protocols does the module support?

   The module supports RUSIO, Modbus, and other standard fieldbus protocols.

7. Is the module suitable for harsh industrial environments?

   Yes, it operates reliably in temperatures from -20°C to +60°C and 5–95% humidity.

8. Can input and output channels be reconfigured?

   Yes, the channels are fully configurable depending on the application requirements.

9. Can the module support both process control and safety-critical systems?

   Yes, it is designed for precise signal handling and integration into both standard and safety-critical applications.

10. What installation types does the module support?

    The module can be installed in rack-mounted or panel-mounted configurations for flexible deployment.
