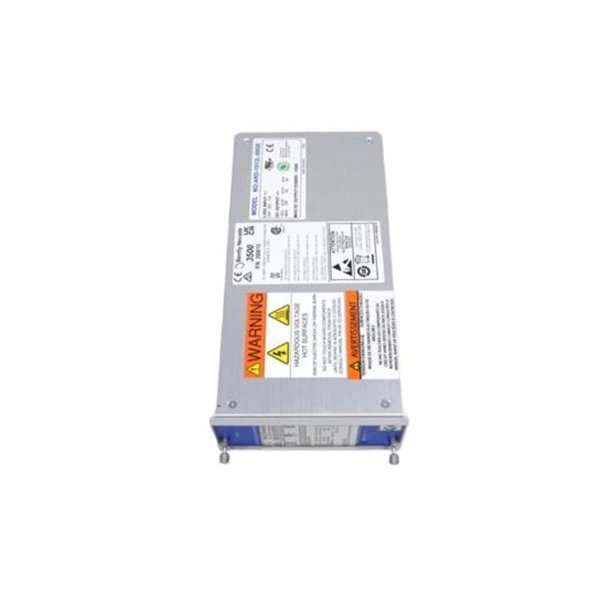

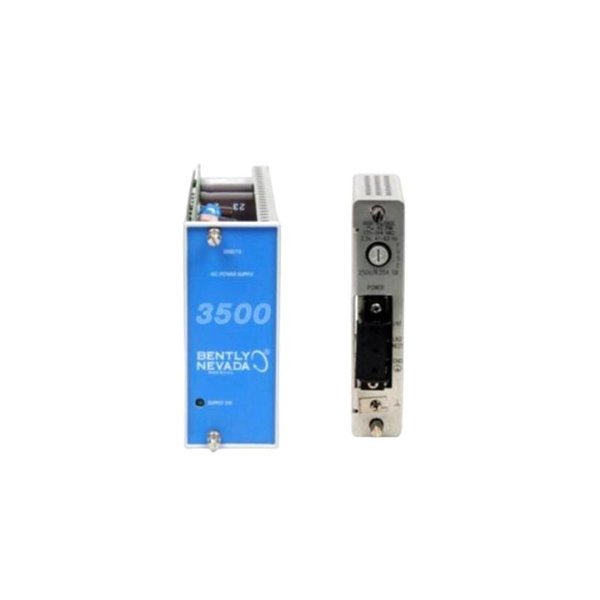

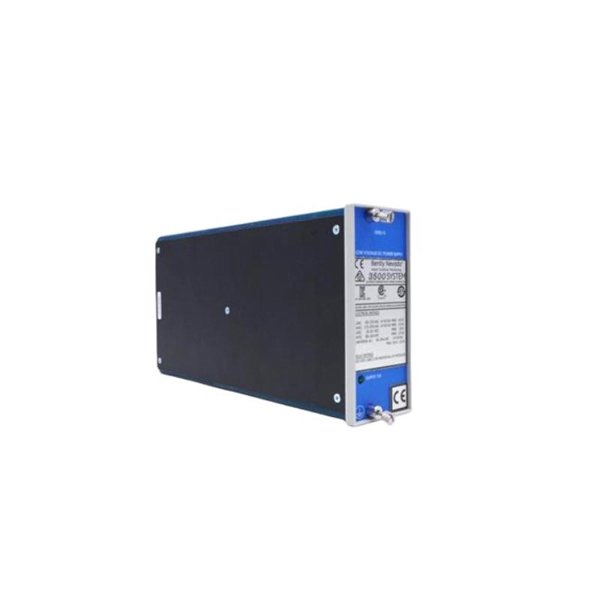

The Bently Nevada 3500/15-05-05-CN power supply module is designed to provide uninterrupted, reliable, and efficient power for the 3500 Series condition monitoring systems. This module plays a vital role in ensuring the operational integrity and accuracy of monitoring equipment, which is essential in industries that require high levels of precision and uptime.

The 3500/15-05-05-CN power supply module is built to handle demanding industrial environments, offering enhanced durability, high performance, and energy efficiency. It is optimized for industries such as power generation, oil and gas, chemical processing, and heavy manufacturing, where continuous and reliable power is crucial for maintaining operational efficiency and preventing costly downtimes.

This power supply module features a compact and lightweight design that allows easy integration into existing systems without taking up excessive space. Its advanced features and protections, including overvoltage and overcurrent protection, make it a safe and reliable component in the 3500 Series system.

Technical Parameters

Applications

The 3500/15-05-05-CN power supply module is widely used across various industries that require reliable and continuous power for their condition monitoring systems. The primary applications include:

• Power Generation: In power plants, this power supply module ensures the continuous operation of monitoring systems that monitor turbines, generators, and other critical equipment. By providing stable power, it helps to prevent system failures and optimizes overall plant efficiency.

• Oil & Gas: The 3500/15-05-05-CN module provides reliable power to monitoring systems in offshore rigs, refineries, and pipelines. These systems are crucial for ensuring the safety and efficiency of operations in harsh and remote environments.

• Chemical Processing: The power supply is essential in chemical plants where precise monitoring of production processes is critical. By providing stable and reliable power, it ensures the smooth operation of automated control systems, preventing errors and delays in production.

• Heavy Manufacturing: The module is widely used in manufacturing plants, ensuring that critical systems and machinery are continuously monitored. This helps in minimizing downtime and improving operational performance by detecting potential issues early.

Advantages

1. High Reliability: With a Mean Time Between Failures (MTBF) of 200,000 hours, the 3500/15-05-05-CN module ensures a long service life with minimal risk of failure, making it an ideal choice for industries that require high uptime.

2. Wide Input Voltage Range: This module supports an input voltage range of 85–264 VAC, making it versatile and compatible with a variety of global electrical systems.

3. Compact and Lightweight: With dimensions of 120.7 x 50.8 x 251.5 mm and a weight of only 1.39 kg, this module is compact enough to be installed in tight spaces without sacrificing its performance.

4. Energy Efficiency: The power supply module consumes only 90 W of power, ensuring minimal energy usage while maintaining stable and reliable performance for connected systems.

5. Temperature and Humidity Tolerance: The module operates in a wide temperature range of 0°C to +70°C and can handle humidity levels from 5% to 95% (non-condensing), ensuring its suitability for use in diverse industrial environments.

6. Built-In Protection: This power supply is designed with advanced protection features, including overvoltage, overcurrent, and short circuit protection, ensuring both the safety of the module and the connected equipment.

FAQ

Q1: What input voltage does the Bently Nevada 3500/15-05-05-CN power supply module accept?

A1: The 3500/15-05-05-CN module accepts an input voltage range of 85–264 VAC, 50/60 Hz, which ensures compatibility with electrical systems worldwide.

Q2: What output voltage does the module deliver?

A2: The module provides a stable 24 VDC output with an accuracy of ±1%, making it suitable for powering sensitive equipment in monitoring systems.

Q3: How much current can the 3500/15-05-05-CN supply?

A3: This power supply module can deliver up to 3.5 A of current, which is adequate for powering multiple modules and devices within the system.

Q4: What are the dimensions of this power supply module?

A4: The 3500/15-05-05-CN module has compact dimensions of 120.7 x 50.8 x 251.5 mm, which allows for easy installation in confined spaces.

Q5: What is the weight of this module?

A5: The module weighs 1.39 kg, making it lightweight and easy to handle during installation.

Q6: What is the operating temperature range of the 3500/15-05-05-CN module?

A6: The operating temperature range for this module is from 0°C to +70°C, ensuring reliable operation in a wide range of environmental conditions.

Q7: What is the relative humidity tolerance for this module?

A7: The 3500/15-05-05-CN module can operate in environments with a relative humidity range of 5% to 95% (non-condensing).

Q8: What is the MTBF of the Bently Nevada 3500/15-05-05-CN power supply module?

A8: The MTBF for this module is 200,000 hours, ensuring a long service life and minimal risk of failure over time.

Q9: Can the 3500/15-05-05-CN module be used in hazardous environments?

A9: While this module is durable and reliable, it is not rated for hazardous environments. It’s important to evaluate specific conditions and ensure compatibility with safety standards for hazardous locations.

Q10: How much power does the 3500/15-05-05-CN consume?

A10: The module consumes 90 W of power, making it energy-efficient while maintaining stable power delivery for the monitoring system.
