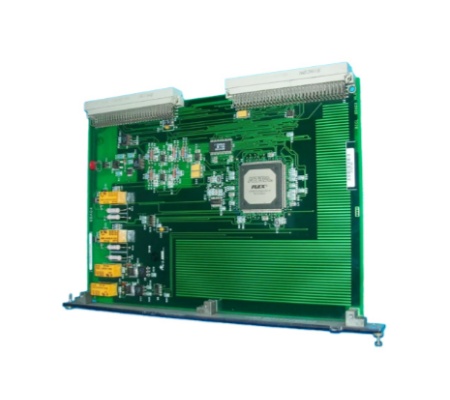

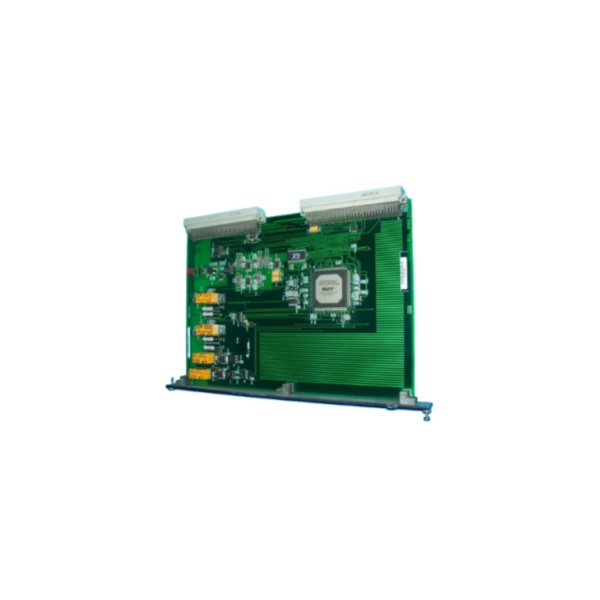

The GE IS200BICLH1AFD IGBT Bridge Interface Board is a power electronics application. The IS200BICLH1AFD board acts as an interface between a controller and an insulated gate bipolar transistor bridge, primarily used to power a motor or other electrical component. High power IGBTs are frequently used in modern inverters and motor drives, capable of efficiently handling high voltages and currents.

The IS200BICLH1AFD interfaces the Mark VI or Mark VIe control system with the IGBT bridge circuit to control the flow of high-power electrical signals to a motor or other electrically driven component.

In addition, it provides the necessary gate drive signals to the IGBT modules as they turn on and off and deliver the required power to the load.

It manages the timing and sequencing of the signals to ensure proper operation of the IGBT bridge and prevent damage from excessive voltage or current.

Frequently asked questions about the product are as follows:

-What is the IS200BICLH1AFD board used for?

High power control of motors, turbines or other electric drive systems.

-How does the IS200BICLH1AFD board protect the IGBT bridge?

Monitors voltage, current and temperature of the IGBTs. If a fault occurs, the board can shut down or signal the control system to take protective measures.

-Is the IS200BICLH1AFD compatible with all IGBT modules?

The board is designed to work with a range of IGBT modules used in Mark VI or Mark VIe systems.
