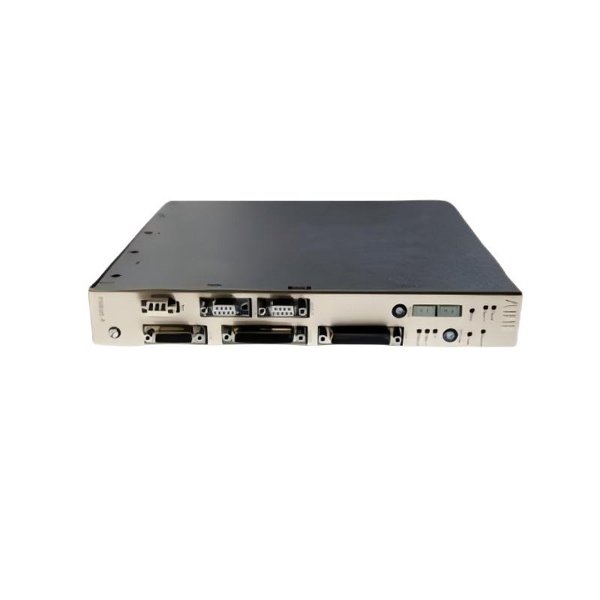

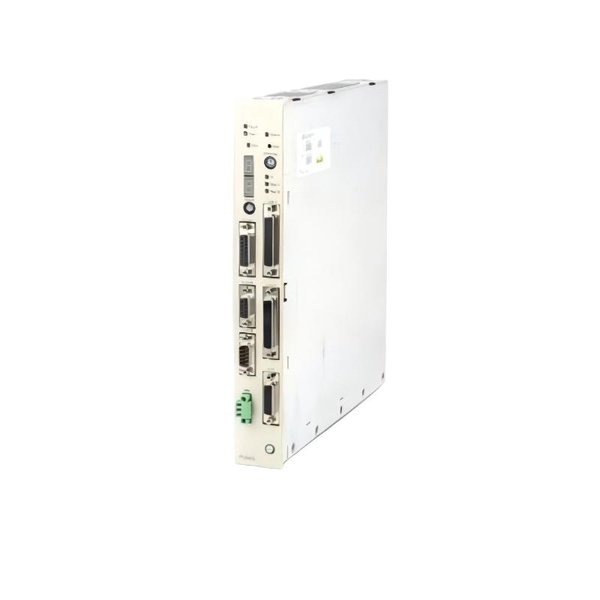

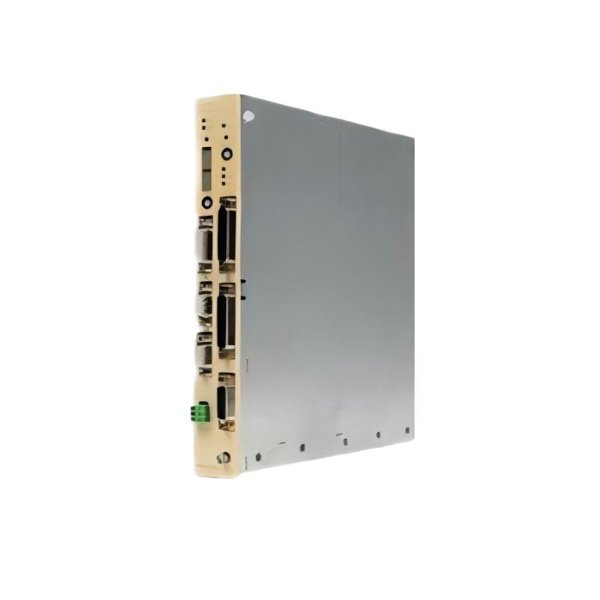

The ABB PM645A 3BSE010536R1 is a high-performance CPU processor unit designed to meet the demands of modern industrial control systems. Offering exceptional processing power and a wide range of communication interfaces, the PM645A is ideal for large and complex automation systems. It is engineered to support a variety of control tasks, including process automation, industrial robotics, and factory management systems.

With its robust design, this processor unit provides high availability, precision, and scalability, allowing it to handle both simple and complex tasks with ease. The PM645A integrates seamlessly with other ABB automation products, offering flexible communication options to optimize industrial control networks.

Product Specifications

Product Applications

The ABB PM645A 3BSE010536R1 CPU processor unit is designed for use in a wide range of industrial applications, including:

• Industrial Automation: Managing large-scale manufacturing systems, such as assembly lines, production cells, and process lines.

• Process Control: Ideal for industries such as chemicals, pharmaceuticals, food processing, and oil & gas, where precise control of manufacturing processes is critical.

• Building Management Systems (BMS): Utilized in managing HVAC, lighting, energy consumption, and other systems in commercial buildings, factories, and smart buildings.

• Robotics: Provides the computational power needed for controlling industrial robots, enabling automation in manufacturing, assembly, and packaging operations.

• Energy Management: Ensures efficient energy usage and distribution in energy-intensive industries such as power generation, renewable energy systems, and utilities.

• Safety and Monitoring Systems: The PM645A supports real-time monitoring, control, and feedback loops for critical safety applications in industrial environments.

Product Advantages

• High Processing Power: The PowerPC-based processor ensures high-speed computations and the ability to handle complex control tasks efficiently.

• Scalable Design: The PM645A can support up to 64 I/O modules, making it ideal for both small and large automation systems that require flexibility and scalability.

• Wide Communication Range: Equipped with two Ethernet ports supporting 10/100/1000 Mbps speeds, this unit ensures quick and reliable communication, allowing integration with various networks.

• Durability and Robustness: With an operating temperature range of -25°C to +60°C, the PM645A is designed to operate reliably even in harsh industrial environments.

• Compact Form Factor: Despite its powerful features, the PM645A is designed with compact dimensions (252 × 273 × 40 mm), making it easy to integrate into tight spaces within control cabinets or racks.

• Easy Integration: It supports a wide variety of communication protocols, including Modbus TCP, EtherNet/IP, and OPC UA, making it easy to integrate with existing systems and devices.

• Energy Efficiency: The unit is built with power efficiency in mind, ensuring reliable performance while minimizing energy consumption.

FAQ

1. Q: What is the input voltage range for the ABB PM645A 3BSE010536R1?

   A: The PM645A operates on a 24 V DC input voltage.

2. Q: How much memory does the PM645A CPU unit have?

   A: The PM645A features 1 GB of RAM and 512 MB of flash memory.

3. Q: What is the weight of the PM645A CPU processor unit?

   A: The weight of the PM645A is 1.75 kg.

4. Q: Can the PM645A handle large-scale industrial applications?

   A: Yes, it supports up to 64 I/O modules, making it suitable for complex and large-scale automation systems.

5. Q: What types of communication protocols are supported by the PM645A?

   A: The PM645A supports Modbus TCP, EtherNet/IP, and OPC UA protocols for flexible communication and integration.

6. Q: What is the operating temperature range for the PM645A?

   A: The PM645A operates within a temperature range of -25°C to +60°C.

7. Q: How is the PM645A mounted?

   A: The PM645A is designed for DIN rail mounting, which simplifies installation in control cabinets.

8. Q: Can the PM645A be used for robotics applications?

   A: Yes, the PM645A is ideal for controlling robotics applications in automated manufacturing systems.

9. Q: Does the PM645A support Ethernet communication?

   A: Yes, the PM645A has two Ethernet ports (10/100/1000 Mbps) for fast and reliable communication.

10. Q: Is the PM645A suitable for process control applications?

    A: Yes, the PM645A is widely used in industries requiring precise and reliable process control, such as chemicals, pharmaceuticals, and food processing.
