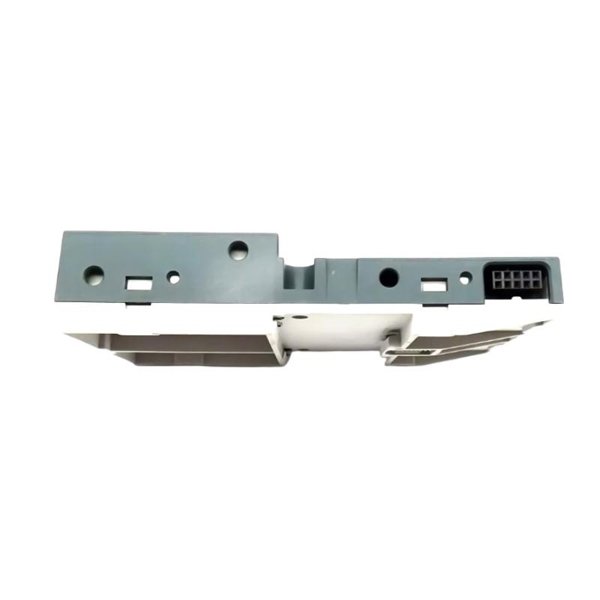

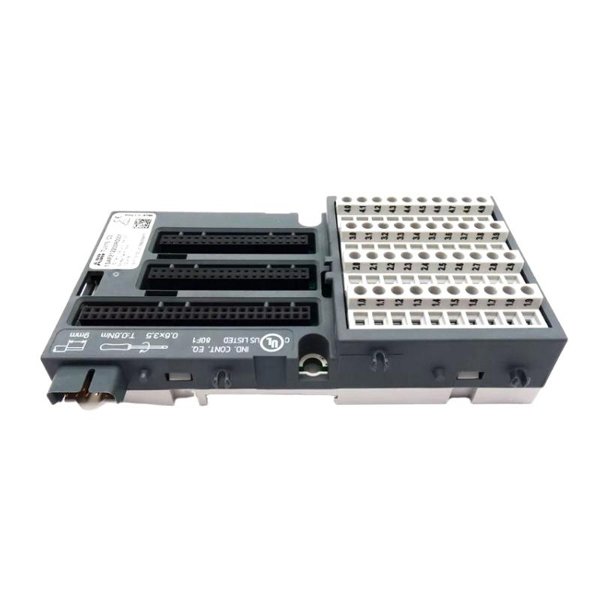

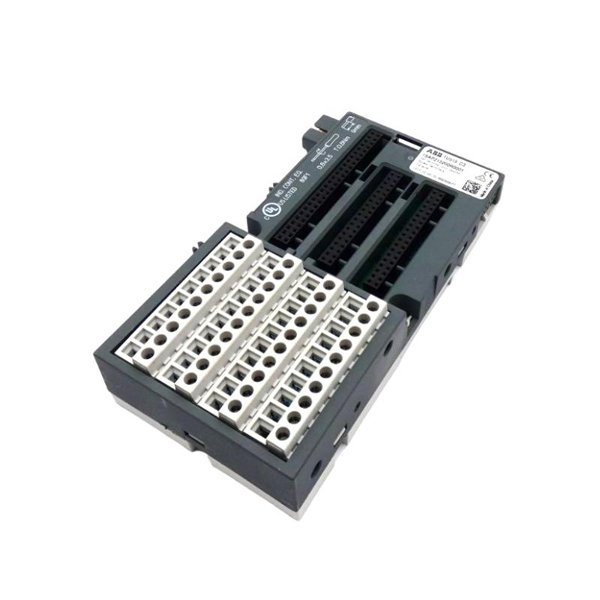

ABB TU515 1SAP212200R0001 I/O Terminal Unit

The ABB TU515 (1SAP212200R0001) is an I/O terminal unit designed as part of ABB’s renowned AC500 and S500 series automation systems. Functioning as a key interface between process field devices and the control module, the TU515 provides organized and efficient wiring connections for I/O modules. It is primarily used for mounting and interconnecting digital or analog input/output modules with the field wiring.

With its DIN rail mounting and robust structure, the TU515 simplifies the wiring process, reduces installation time, and enhances system modularity. The terminal unit supports hot swapping of I/O modules, provides built-in protection circuitry, and ensures signal integrity even in harsh industrial environments.

Its use in industrial automation, building control, energy systems, and machinery applications makes the TU515 a critical piece in scalable and reliable control solutions. The combination of high-quality terminal blocks and modular connection technology ensures ABB’s commitment to precision and performance.

Product Specifications

Product Applications

The TU515 terminal unit is used across various automation and control industries where reliability and clean wiring are essential:

• Industrial Automation: Enables secure connection of sensors, actuators, and control signals in factory automation.

• Energy & Utilities: Deployed in substations and grid control rooms for I/O interconnection.

• Water and Wastewater Management: Connects process control units with level, flow, and pressure sensors.

• Manufacturing Lines: Facilitates quick integration of control signals in discrete manufacturing environments.

• Building Automation: Interfaces HVAC, lighting, and security systems with automation modules.

• Renewable Energy Systems: Used in wind and solar farms to connect I/O modules managing turbines and inverters.

Product Advantages

• Efficient Wiring Layout: Neat terminal arrangement reduces wiring errors and simplifies troubleshooting.

• DIN Rail Mounting: Enables fast installation and modular expansion within standard enclosures.

• Robust and Reliable: Withstands industrial vibration and electromagnetic interference.

• Hot-Swappable Compatibility: Supports safe removal and replacement of I/O modules during operation.

• Universal Compatibility: Fully compatible with ABB’s S500 and AC500 series I/O modules.

• Safety-Enhanced Design: Offers insulation and dielectric protection suitable for industrial voltages.

• Compact Form Factor: Saves valuable cabinet space while maintaining terminal accessibility.

Frequently Asked Questions (FAQ)

1. What does the ABB TU515 terminal unit do?

   It serves as the interface between field devices and ABB S500 series I/O modules, organizing wiring and simplifying connections.

2. Is the TU515 compatible with all ABB I/O modules?

   It is specifically designed for S500 series I/O modules and AC500 systems.

3. Can the terminal unit be hot-swapped?

   Yes, it allows for hot-swapping of I/O modules under appropriate conditions without shutting down the system.

4. What type of terminal connections does it use?

   The TU515 uses screw terminal connections for secure and reliable wiring.

5. Is it suitable for harsh industrial environments?

   Yes, it is rated for a wide temperature range and provides protection against dust and humidity.

6. How is it mounted?

   It is DIN rail-mountable, suitable for standard control panels.

7. What is the maximum operating voltage?

   It supports up to 250 V AC, with 2.0 kV dielectric strength.

8. Does it meet international certifications?

   Yes, the TU515 is CE-marked and compliant with UL, RoHS, and other global standards.

9. What is the insulation resistance of the terminals?

   It offers insulation resistance greater than 100 MΩ at 500 VDC.

10. What tools are required for installation?

    Only standard screwdrivers are needed, making installation simple and fast.
