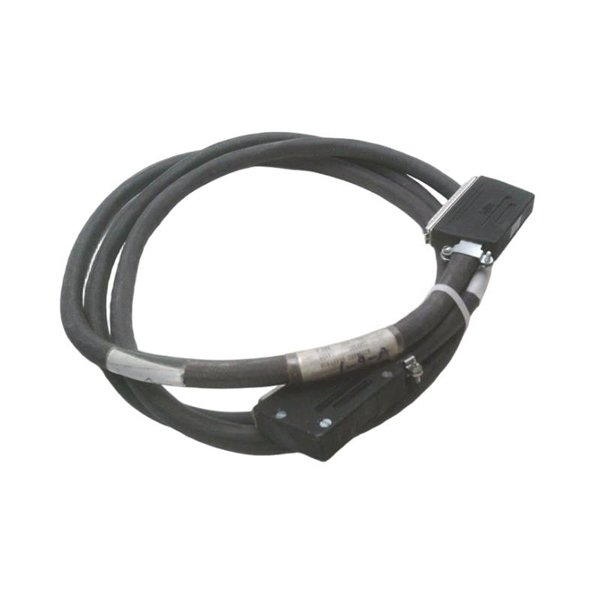

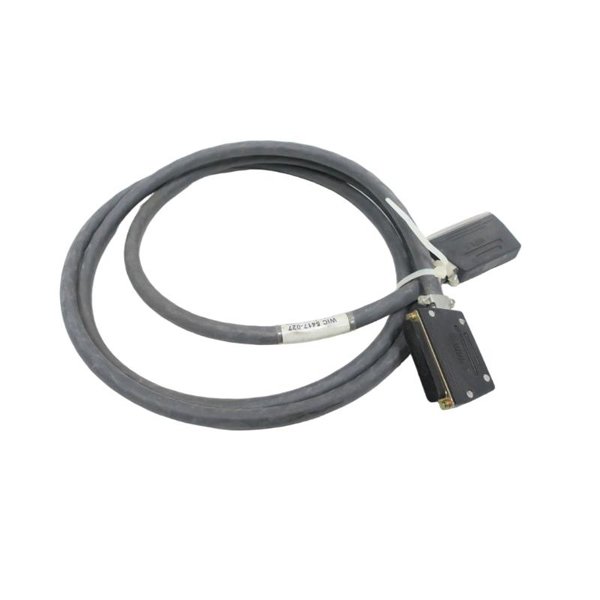

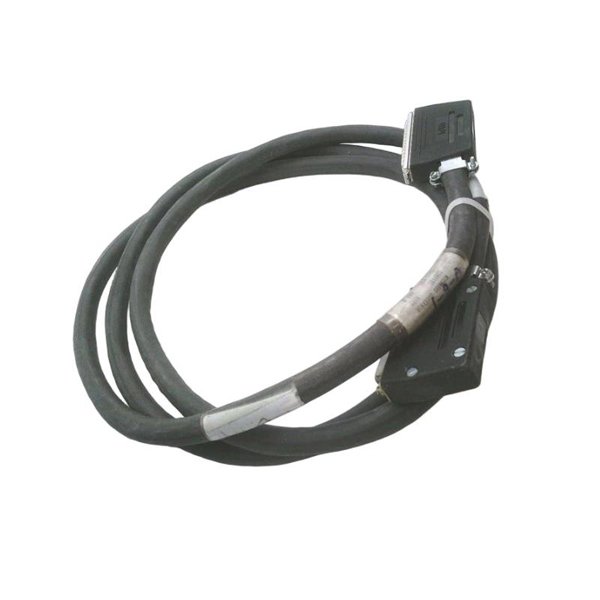

The Woodward 5417-027 Cable is a specialized interface cable designed for industrial automation and control systems, particularly used in applications involving Woodward control modules and governors. Precision-engineered to meet stringent electrical and mechanical requirements, this cable ensures secure communication, reliable signal transmission, and robust performance in mission-critical environments. It is commonly used in turbine control systems, generator controls, and engine management configurations.

Woodward has a long-standing reputation for quality in the field of energy control and optimization. This specific cable is manufactured under high-quality standards to deliver consistent performance even under challenging operational conditions.

Technical Specifications

Product Applications

The 5417-027 Cable is primarily used in the following application domains:

• Turbine Control Systems – Used to link governor and actuator modules.

• Generator Control Panels – Transmits control signals between power generation components.

• Engine Management Systems – Facilitates accurate communication for industrial engines.

• Test and Diagnostics – Enables connection of diagnostic tools to Woodward devices.

• Marine Propulsion Systems – Used in integration of engine controllers on marine vessels.

• Retrofit and Upgrades – An essential component when replacing or upgrading control systems.

Product Advantages

• Reliable Signal Transmission: Built with high-grade shielding to prevent EMI/RFI interference.

• Durable Construction: Withstands vibration, temperature variation, and mechanical stress.

• Seamless Integration: Custom-designed for Woodward products, ensuring plug-and-play compatibility.

• Flexible Deployment: Available in standard lengths, with potential for customization.

• Time-Tested Quality: Manufactured by a globally respected brand in industrial automation.

• RoHS Compliant: Meets global environmental and safety standards.

Frequently Asked Questions (FAQ)

1. What type of equipment is the Woodward 5417-027 Cable typically used with?

   It is primarily used with Woodward control modules and governors in turbine, engine, and generator systems.

2. Does the 5417-027 Cable require any calibration or setup before use?

   No calibration is needed; the cable functions as a plug-and-play interface with compatible devices.

3. What is the standard length of this cable?

   The standard length is 8 feet.

4. Is the cable suitable for environments with high electrical noise?

   Yes, it features robust shielding (foil and braid) to minimize interference from electromagnetic or radio frequency noise.

5. What materials are used in the insulation and outer sheath of the cable?

   It uses industrial-grade thermoplastic insulation, offering durability and resistance to wear, oils, and heat.

6. Can this cable be used in marine or offshore applications?

   Yes, as long as it is installed in a protected environment. The cable meets industrial specifications but should not be directly exposed to saltwater or harsh outdoor conditions without proper enclosure.

7. What is the recommended storage condition for the cable?

   Store it in a dry, cool environment between -10°C and +60°C to maintain its integrity and flexibility.

8. Is the 5417-027 Cable compatible with diagnostic equipment from Woodward?

   Yes, it is often used to connect control units with diagnostic tools for troubleshooting and firmware updates.

9. What is the typical installation method for this cable?

   The cable is routed through control panels or cable trays and terminated at predefined connectors or ports on the equipment.

10. How should the cable be maintained to ensure long-term reliability?

    Regular inspection for wear or connector corrosion is recommended. Avoid excessive bending or stretching to preserve signal integrity.
