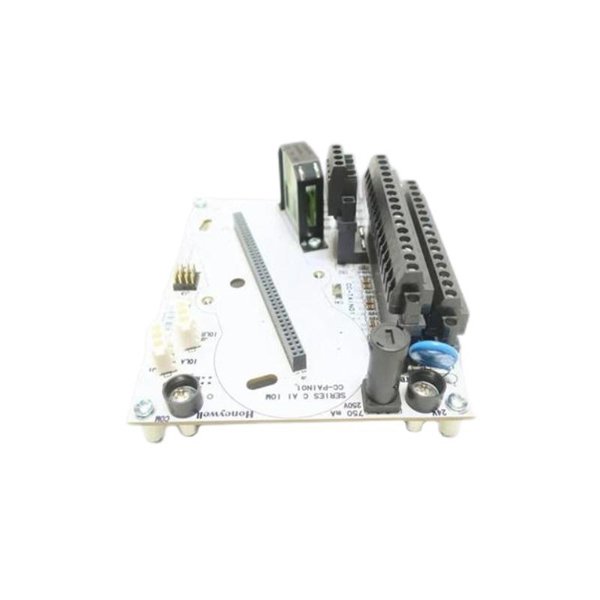

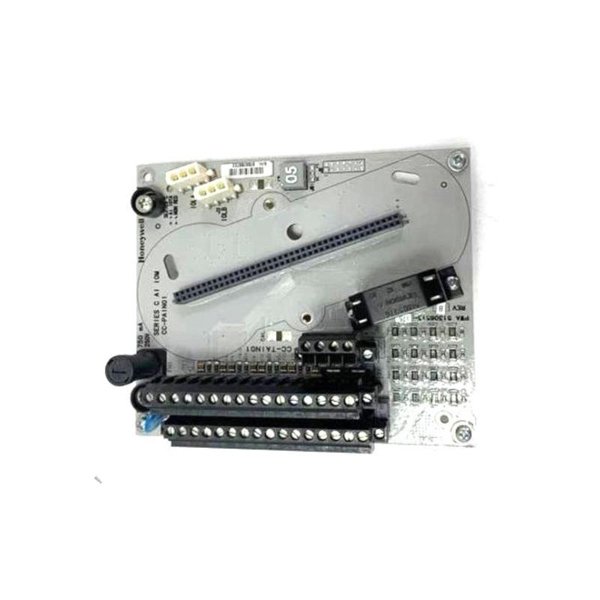

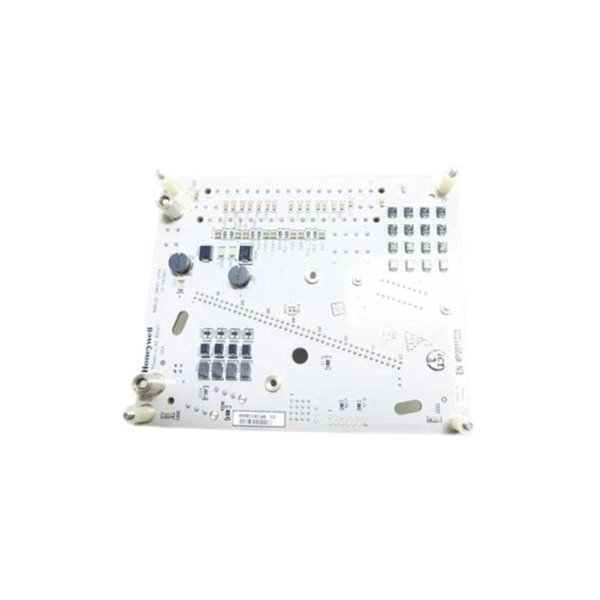

The Honeywell CC-TAIN01 51306513-175 is a high-performance temperature input module designed for industrial automation and process control systems. It is part of Honeywell’s Experion® PKS (Process Knowledge System) and is widely used in applications requiring precise temperature monitoring and data acquisition.

This module supports RTD (Resistance Temperature Detector) and thermocouple inputs, ensuring compatibility with various temperature sensors. Its rugged design and reliable performance make it suitable for harsh industrial environments.

Product Specifications

Applications

The Honeywell CC-TAIN01 51306513-175 is used in industries where high-precision temperature monitoring is critical. Key applications include:

• Oil & Gas – Monitoring pipeline and refinery temperatures.

• Chemical Processing – Ensuring safe reaction temperatures.

• Power Generation – Boiler and turbine temperature control.

• Pharmaceuticals – Maintaining strict temperature conditions in production.

• Food & Beverage – Pasteurization and sterilization processes.

• HVAC Systems – Building automation and climate control.

Product Advantages

1. High Accuracy & Resolution – Ensures precise temperature readings for critical processes.

2. Flexible Input Configurations – Supports multiple RTD and thermocouple types.

3. Robust Isolation – Prevents signal interference and enhances safety.

4. Wide Operating Range – Functions reliably in extreme temperatures.

5. Easy Integration – Compatible with Experion PKS and other Honeywell control systems.

6. Certified for Hazardous Areas – Meets ATEX and IECEx standards for explosive environments.

7. Low Power Consumption – Energy-efficient design.

8. Long-Term Reliability – Designed for continuous operation in industrial settings.

Frequently Asked Questions (FAQ)

1. What types of temperature sensors does the CC-TAIN01 support?

• It supports RTD (Pt100, Pt200, Pt500, Pt1000) and thermocouples (J, K, T, E, R, S, B, N).

2. Can this module be used in hazardous environments?

• Yes, it is certified for ATEX and IECEx standards for use in explosive atmospheres.

3. How many channels does the CC-TAIN01 have?

• It has 8 configurable channels, allowing different sensor types per channel.

4. What is the accuracy of this module?

• The accuracy is ±0.1% of full scale, ensuring high precision.

5. What communication protocols are supported?

• Depending on configuration, it supports Foundation Fieldbus, Profibus, or HART.

6. What is the operating temperature range?

• It operates from -40°C to +70°C (-40°F to +158°F).

7. Does it require external signal conditioning?

• No, it has built-in isolation and signal conditioning.

8. Is it compatible with Honeywell’s Experion PKS?

• Yes, it integrates seamlessly with Experion PKS and other Honeywell systems.

9. What is the power supply requirement?

• It operates on 24V DC with a maximum power consumption of 3.5W.

10. What is the warranty period for this module?

• Honeywell typically provides a 2-year warranty, subject to terms and conditions.
