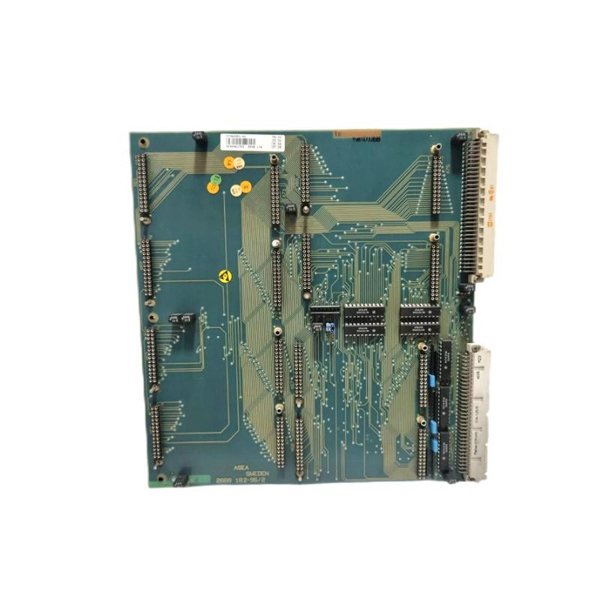

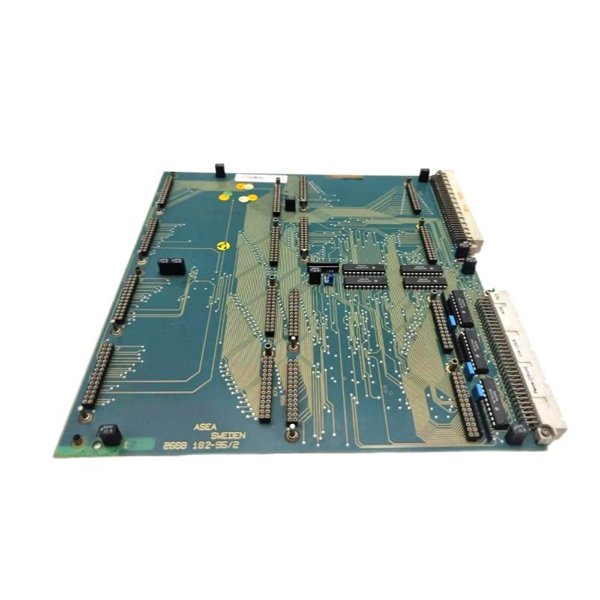

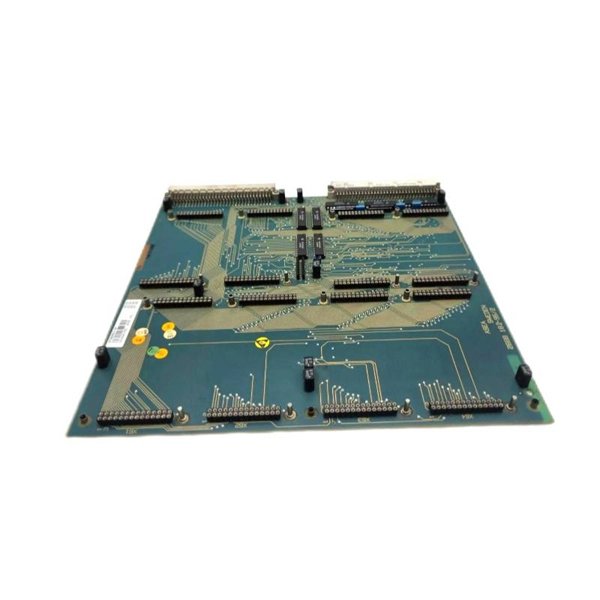

The ABB DSMB 176 57960001-HX DS Memory Module is an advanced data storage solution designed for ABB’s industrial control and automation systems. This memory module is engineered to provide reliable, fast, and secure data storage, ensuring seamless integration into ABB’s distributed control systems (DCS) and programmable logic controllers (PLC). The DSMB 176 57960001-HX offers high capacity, quick data access speeds, and low power consumption, making it an ideal solution for mission-critical applications that require robust data storage and protection. This product is part of ABB’s DSMB series of memory modules, which are designed to support the highest levels of reliability and data integrity in complex industrial environments.

Product Specifications

Below is a table listing the detailed specifications for the DS Memory Module:

Applications

The ABB DSMB 176 57960001-HX DS Memory Module is ideal for a range of industrial and automation applications that require high reliability and secure data storage. Key applications include:

• Industrial Control Systems: This module provides reliable data backup and restoration for complex control systems.

• Programmable Logic Controllers (PLCs): It supports PLC systems by ensuring data storage for control processes and program configurations.

• Process Automation: The memory module ensures secure data retention and quick access in continuous process control applications.

• Energy Management Systems: This module is used in energy monitoring and control systems, ensuring that critical data remains intact and easily retrievable.

• Machine Automation: It is a key component in machine automation systems, ensuring data integrity during machine control and monitoring.

• Manufacturing Execution Systems (MES): Supports the storage and retrieval of data in MES applications, where precision and reliability are crucial.

Advantages

1. High Capacity: With a storage capacity of 8 GB, the DSMB 176 57960001-HX module can handle larger amounts of data, making it ideal for complex industrial automation systems.

2. Wide Temperature Range: This module is designed to operate within a wide temperature range of -20°C to +75°C, making it suitable for harsh industrial environments.

3. Compact Design: The small form factor of 140 mm x 120 mm x 50 mm ensures that it can fit into tight spaces in control cabinets and systems.

4. Low Power Consumption: With a low power consumption of only 2.0 W, the module helps reduce energy costs in industrial systems.

5. Data Security: The DSMB 176 ensures that all critical data is securely stored and can be easily retrieved in case of system shutdown or failure.

6. High Reliability: Designed for long-term use, the module has a high MTBF (Mean Time Between Failures), ensuring minimal maintenance and downtime.

7. Industry Compliance: It meets RoHS and CE standards, ensuring that it adheres to the required environmental and safety regulations.

8. Durability: Built to withstand industrial stresses such as vibrations and shocks, the DSMB 176 module offers enhanced durability and longevity.

9. Seamless Integration: The module integrates effortlessly into ABB control systems, minimizing installation time and simplifying system upgrades.

10. Long-Term Performance: The DSMB 176 offers consistent performance over time, reducing the need for frequent replacements and ensuring continuous operations.

Frequently Asked Questions (FAQ)

1. What is the memory capacity of the DSMB 176 57960001-HX module?

   • The DSMB 176 57960001-HX has a memory capacity of 8 GB.

2. What voltage does the DSMB 176 memory module require?

   • The module operates with a voltage rating of 5V ±10%.

3. What is the operating temperature range of the DSMB 176 memory module?

   • It operates in temperatures ranging from -20°C to +75°C.

4. What are the dimensions of the DSMB 176 57960001-HX module?

   • The module measures 234 × 255 × 18 mm.

5. What is the weight of the DSMB 176 memory module?

   • The module weighs 0.34 kg.

6. Is the DSMB 176 module compatible with other ABB automation systems?

   • Yes, it is compatible with a variety of ABB control systems, including PLCs and DCS.

7. What is the power consumption of the DSMB 176 memory module?

   • The module consumes 2.0 W of power.

8. What is the warranty period for the DSMB 176 module?

   • We provide one year warranty.

9. Can the DSMB 176 module be used in outdoor environments?

   • It is designed for industrial environments but should be used in protected areas within its operating temperature range.

10. Does the DSMB 176 module meet industry standards?

    • Yes, the DSMB 176 module is RoHS compliant and CE marked, ensuring it meets environmental and safety standards.
