Manufacturer:Yokogawa
Product Number:NFAI141-S50
Product Type:Analog Input Module
Origin:Japan
Dimensions:130 x 107.5 x 32.8mm
Weight:0.2 kg
Views:47
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

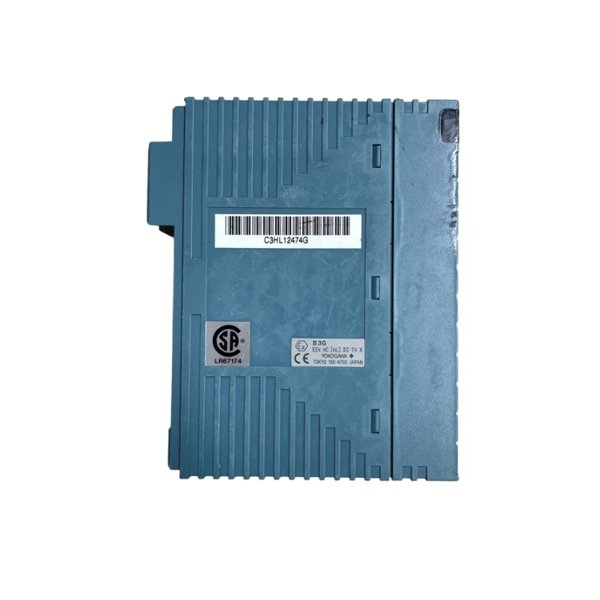

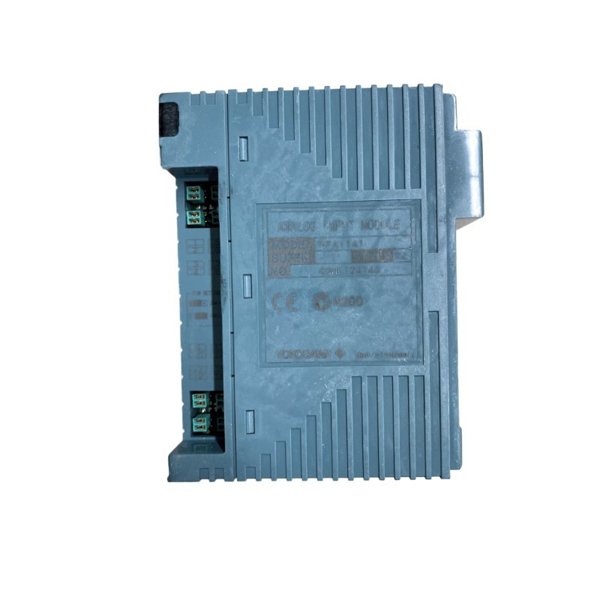

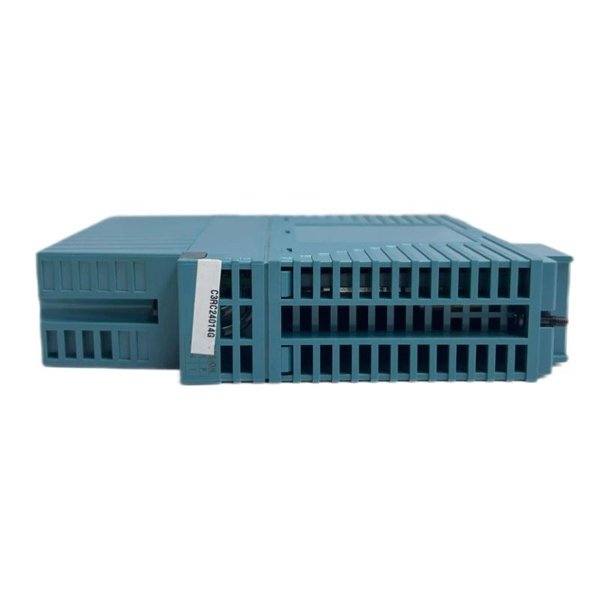

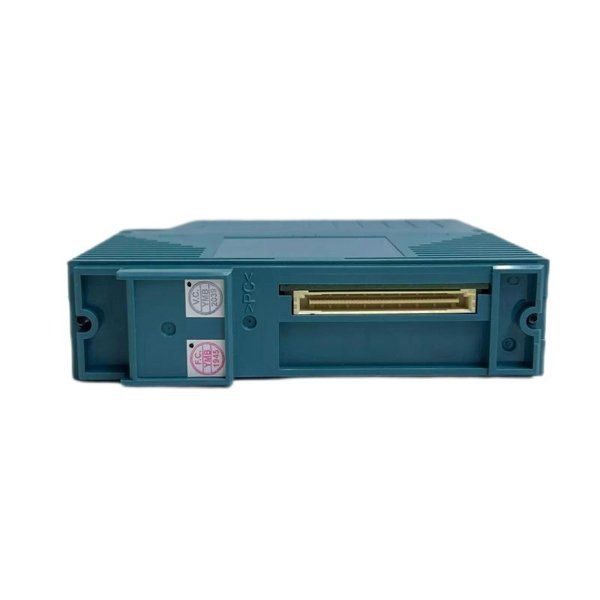

The Yokogawa NFAI141-S50 is a 16-channel analog input module designed to interface 4 to 20 mA signals from field instruments into the FCN Autonomous Controller platform of Yokogawa’s STARDOM control system. Engineered for high-density signal acquisition, it supports non-isolated current input channels and utilizes MIL 40-pin connectors for reliable field wiring.
| Parameter | Specification |
|---|---|
| Model Number | NFAI141-S50 |
| Input Signal Type | Analog Current (4 to 20 mA) |
| Number of Channels | 16 |
| Channel Isolation | Non-Isolated |
| Terminal Connection | MIL 40-pin Connector / Pressure Clamp |
| Input Wiring | 2-wire transmitter input |
| Applicable Terminal Block | NFTA4S |
| Power Supply | Supplied by the main FCN controller |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature Range | 0 to 55°C |
| Storage Temperature Range | -20 to 70°C |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 130 × 107.5 × 32.8 mm |
| Weight | 0.2 kg |
Process Automation Systems: Ideal for collecting analog signals from transmitters in oil & gas, petrochemical, and chemical plants.
Building Automation: Used for HVAC and energy monitoring systems.
Water Treatment Facilities: Captures instrumentation data such as flow, level, and pressure.
Power Generation: Analog input acquisition for turbine control and energy monitoring.
Manufacturing Plants: Integration with instrumentation like pressure sensors and flowmeters for process control.
High Channel Density: 16 analog input channels save space and cost per point.
MIL Connector Support: Ensures reliable signal integrity and easy field replacement.
Integration with STARDOM FCN: Seamless compatibility for automation architecture.
Compact Design: Fits easily into tight control cabinets.
Cost-Effective: Non-isolated design provides economical signal acquisition in non-critical zones.
Robust Terminal Options: Available in both MIL connector and pressure clamp terminal styles.
Q1: What is the input signal type supported by the NFAI141-S50?
A1: It supports 4 to 20 mA analog current input signals.
Q2: Are the analog input channels isolated?
A2: No, all 16 input channels are non-isolated.
Q3: What connector type is used for signal wiring?
A3: MIL 40-pin connector or pressure clamp terminals can be used.
Q4: Can this module be used with voltage inputs?
A4: No, it is designed exclusively for current (4–20 mA) input.
Q5: Is this module suitable for safety-critical applications?
A5: Not directly, due to the non-isolated nature of the channels.
Q6: What is the physical size of the module?
A6: The dimensions are 130 x 107.5 x 32.8 mm.
Q7: How many channels are available?
A7: The module supports 16 analog input channels.
Q8: What is the weight of the NFAI141-S50?
A8: It weighs approximately 0.2 kg.
Q9: What terminal block is recommended for use?
A9: The recommended terminal block is Yokogawa NFTA4S.
Q10: Is external power supply required for this module?
A10: No, the power is provided by the FCN base unit/controller.
