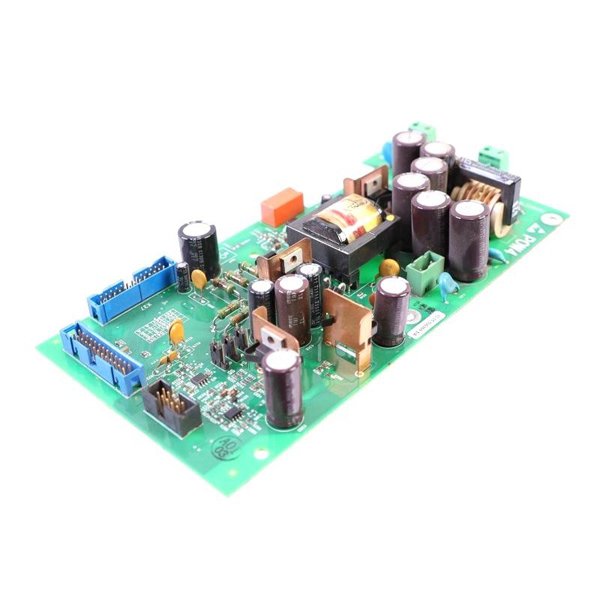

The ABB SDCS-POW-4-SD 3ADT315100R1012 Power Supply is a robust and efficient industrial power supply module engineered specifically for ABB DC drive systems, including the DCS400, DCS500, and DCS600 series. This module delivers regulated DC power to internal drive electronics and control boards, serving as a foundational element in the system’s power infrastructure.

Built for demanding industrial applications, this power supply unit offers high reliability, electrical isolation, and compact integration within ABB’s system racks. Its rugged design and field-tested performance make it an ideal choice for supporting continuous operation in mission-critical environments.

Product Specifications

Product Applications

The SDCS-POW-4-SD power supply is widely used across a range of industrial control and automation scenarios. It is particularly suited for:

• DC Motor Drive Systems: Provides core power for control electronics in DCS500/DCS600 drives.

• Manufacturing and Processing Plants: Ensures stable control voltage for automation hardware.

• Energy and Utilities: Used in turbine control or generator drive cabinets.

• Mining and Heavy Industry: Supports robust performance in vibration- and dust-prone environments.

• Transportation Infrastructure: Integrated into propulsion and winch systems in rail or marine sectors.

• Retrofit Projects: Replaces aging power modules in legacy ABB DC systems.

Product Advantages

• Stable and Regulated Output

  Supplies consistent 24V DC output under varying load conditions, supporting system reliability.

• Compact Form Factor

  Space-efficient size allows easy insertion into system racks without major layout changes.

• Industrial Durability

  Withstands temperature fluctuations, power surges, and high-humidity conditions.

• Low Maintenance

  Long lifecycle with minimal service requirements, reducing operating costs.

• Easy Replacement

  Plug-and-play compatibility with compatible ABB drives simplifies field service and commissioning.

• Integrated Safety Isolation

  Built-in galvanic isolation protects control logic from input-side transients.

Frequently Asked Questions (FAQ)

1. What is the primary role of the SDCS-POW-4-SD power supply in an ABB drive system?

   It provides regulated 24V DC control power to internal electronics within the DCS500 and DCS600 drive systems.

2. Can the module handle both 115V and 230V input power?

   Yes, it’s designed to work with both voltages. It detects and adjusts automatically to the input supply.

3. What signs indicate that the power supply is failing?

   If control boards aren’t powering up, system faults appear on startup, or the drive fails to respond, the power module could be the cause.

4. Should the unit be disconnected before replacement?

   Absolutely. This is not a hot-swappable component. Ensure the drive is completely powered down before removal.

5. Does this unit include built-in protection features?

   Yes. It includes overcurrent and short-circuit protection circuits to protect both itself and downstream components.

6. Is it compatible with legacy systems?

   It fits ABB’s DCS400, DCS500, and DCS600 systems. For older models, cross-referencing with the system manual is advised.

7. Does it require any regular maintenance?

   No active maintenance is needed, but it’s good practice to visually inspect the unit for dust or heat discoloration during scheduled maintenance intervals.

8. How should I clean the module if it’s exposed to dust?

   Use dry compressed air or a soft ESD-safe brush. Avoid any moisture or solvents.

9. What environmental conditions should I avoid?

   Avoid installing in areas with excessive vibration, high humidity above 95%, or temperatures beyond -10°C to +55°C.

10. Can I test the unit while it’s out of the rack?

    No, this unit is designed to function only when installed within the system. It requires proper bus and load connection for operation and cannot be bench-tested with just a power supply.
