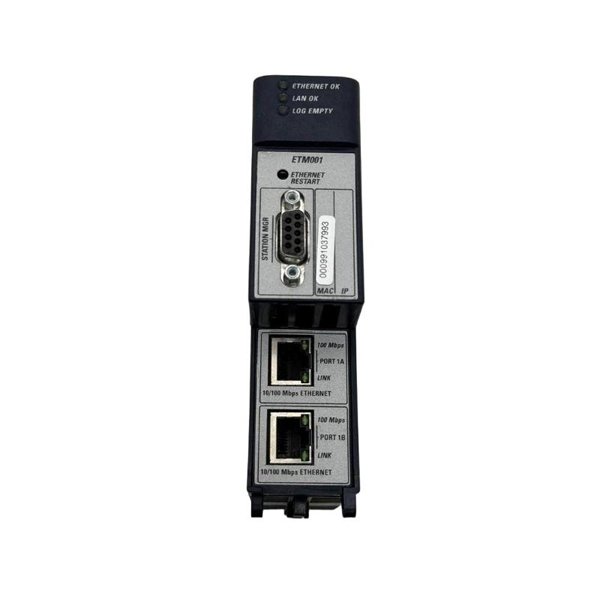

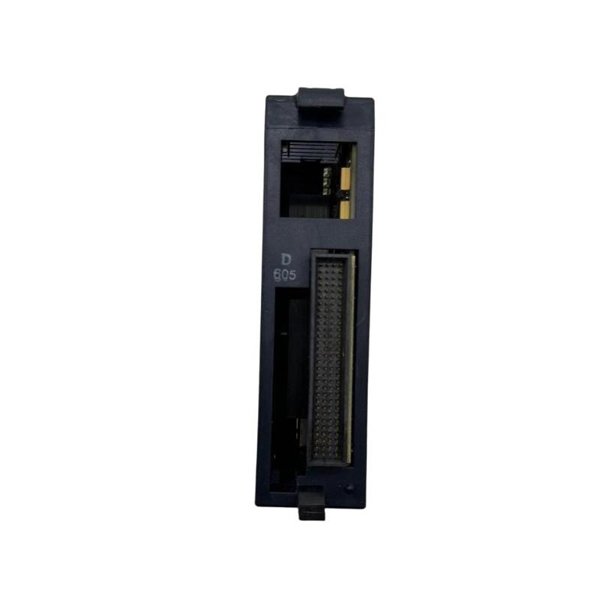

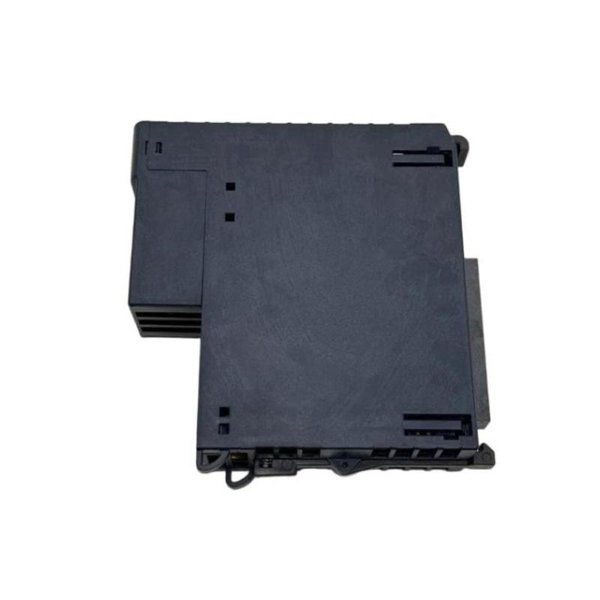

The GE Fanuc IC695ETM001-EP is a high-performance Ethernet Interface Module designed for use in GE PACSystems RX3i programmable automation controllers (PACs). This module provides dual 10/100 Mbps Ethernet ports that support real-time communication between the RX3i controller and external devices, including HMIs, SCADA systems, programming stations, and other PLCs.

Built for industrial environments, the IC695ETM001-EP supports a range of Ethernet-based protocols such as SRTP, Modbus TCP/IP, and EGD (Ethernet Global Data). With advanced diagnostics, built-in web server capabilities, and secure configuration, it enables fast, flexible, and robust communication essential for modern industrial automation systems.

Key Features

• Two independent 10/100 Mbps Ethernet ports with built-in switch functionality

• Supports multiple protocols: SRTP, Modbus TCP/IP, EGD, and configuration messaging

• High-speed data exchange with programmable logic controllers and SCADA systems

• Web-based diagnostics and status monitoring

• Configurable IP settings via software or hardware DIP switch

• Secure communication support including password protection

• LED status indicators for quick visual diagnostics

• Supports firmware upgrades via Ethernet

• Hot-swappable within RX3i rack systems

• Seamless integration with GE Proficy Machine Edition (PME)

Technical Specifications

Industry Applications

The IC695ETM001-EP Ethernet Module is ideal for a wide range of industries requiring real-time Ethernet communication and remote connectivity:

• Industrial Automation – Networking PLCs with remote I/O, sensors, and actuators

• Energy & Utilities – SCADA system integration for power generation and grid control

• Oil & Gas – Remote equipment monitoring and control over secure Ethernet links

• Manufacturing – High-speed data exchange between production lines and MES systems

• Water & Wastewater Treatment – Centralized monitoring and control of distributed systems

• Building Automation – Connectivity for HVAC, security, and lighting controls

• Pharmaceuticals & Food Processing – Real-time process monitoring and data logging

Product Advantages

• Dual Ethernet ports with switching simplify cabling and network architecture

• Supports industrial Ethernet protocols for wide interoperability

• Web diagnostics and firmware updates enhance maintainability and lifecycle support

• Hot-swappable for reduced downtime during maintenance

• Secure and configurable networking with IP filtering and access control

• Robust diagnostics and monitoring tools through PME and browser interface

• High throughput and low latency, ideal for time-sensitive control applications

• Certified for industrial use, ensuring reliable operation under demanding conditions

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC695ETM001-EP?

It serves as a network interface module that allows RX3i systems to communicate over Ethernet using protocols like SRTP, EGD, and Modbus TCP/IP.

2. How many Ethernet ports does the module have?

It has two 10/100 Mbps Ethernet ports, which act as a built-in Ethernet switch.

3. Can I assign the IP address manually?

Yes. IP addresses can be configured via Proficy Machine Edition, DIP switches, or DHCP.

4. Is this module hot-swappable?

Yes, the IC695ETM001-EP is hot-swappable when used within a compatible RX3i rack.

5. What protocols are supported for communication?

The module supports SRTP, Modbus TCP/IP, EGD, and standard TCP/IP services.

6. Can I use this module to upgrade firmware?

Yes, firmware can be updated via Ethernet using PME.

7. Does the module support diagnostics?

Yes, through a web interface, status LEDs, and Proficy software tools.

8. What is the typical application for this module?

Typical uses include SCADA integration, remote I/O networking, and controller-to-controller communication.

9. Can this module be used in redundant systems?

Yes, when paired with system-level redundancy configurations.

10. Is the module compatible with third-party Ethernet devices?

Yes, it supports standard Ethernet/IP communication, enabling interoperability.
