Manufacturer:Emerson
Product Number:VE4033S2B KJ3222X1-EA1
Product Type:Redundant AI Terminal Block
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.3 kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

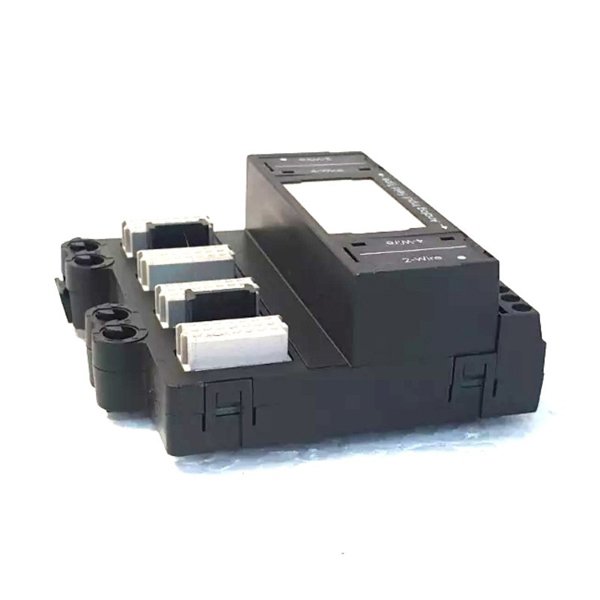

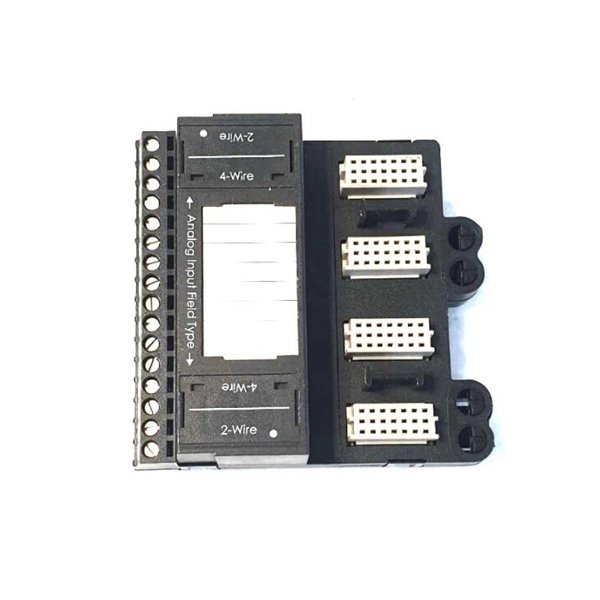

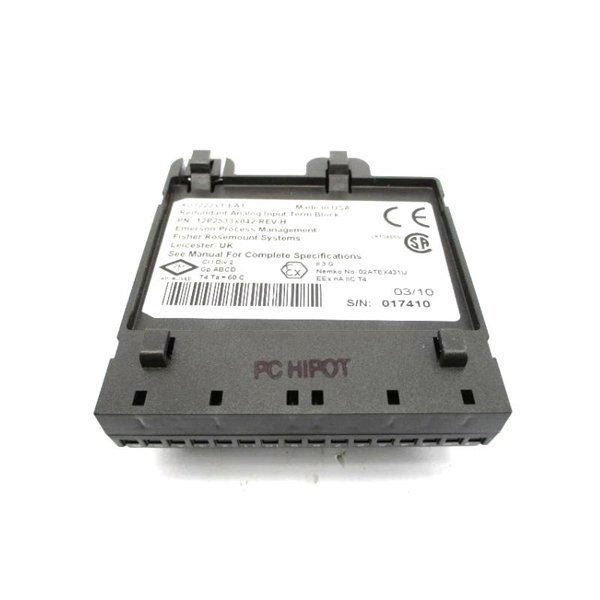

The Emerson VE4033S2B KJ3222X1-EA1 is a Redundant Analog Input (AI) Terminal Block designed for high-reliability data acquisition in process automation systems. It is part of the DeltaV™ Electronic Marshalling (CHARM I/O) system, offering redundancy for critical analog signals and enabling seamless integration within Zone 2 hazardous environments.
| Parameter | Description |
|---|---|
| Model Number | KJ3222X1-EA1 |
| Product Code | VE4033S2B |
| Input Power Rating | 30 VDC @ 200 mA |
| Operating Temperature | -40 °C to +70 °C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminants | ISA-S71.04 G3 Class |
| Relative Humidity | 5% to 95% non-condensing |
| Approvals | ATEX, IECEx, FM, UKEX (Zone 2, Div. 2) |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
This terminal block is utilized in safety-critical and redundant AI signal collection environments such as:
Oil & Gas production platforms
Petrochemical plants
Power generation facilities
Pharmaceutical processing
Hazardous industrial environments (Zone 2, Div. 2)
Supports redundant AI configurations for high system reliability
Compliant with multiple global safety standards (ATEX, IECEx, FM)
Suitable for harsh environments with wide temperature and vibration tolerance
Seamless integration with Emerson’s DeltaV™ CHARMs infrastructure
No calibration or maintenance required
Q1: What is the primary function of the KJ3222X1-EA1 terminal block?
A1: It provides redundant analog input connectivity within Emerson’s DeltaV™ CHARMs I/O system.
Q2: Can the module be inserted or removed under power?
A2: No, insertion or removal must be performed with system power off.
Q3: Is calibration required for this unit?
A3: No, calibration is not needed during its operational lifespan.
Q4: Which environmental standards does it meet?
A4: It meets ISA-S71.04 G3 for airborne contaminants and various vibration and shock resistance criteria.
Q5: Is it suitable for use in hazardous areas?
A5: Yes, it is certified for Zone 2 and Division 2 hazardous areas.
Q6: What power supply does it require?
A6: It requires 30 VDC at 200 mA.
Q7: What is the operating temperature range?
A7: It operates reliably between -40 °C to +70 °C.
Q8: Are there any user-serviceable parts?
A8: No, the unit is non-serviceable and should not be disassembled.
Q9: What kind of systems is it typically used in?
A9: It is used in redundant analog input setups within DeltaV™ Electronic Marshalling systems.
Q10: Is the module protected against vibration?
A10: Yes, it complies with vibration resistance standards from 2 to 150 Hz.
