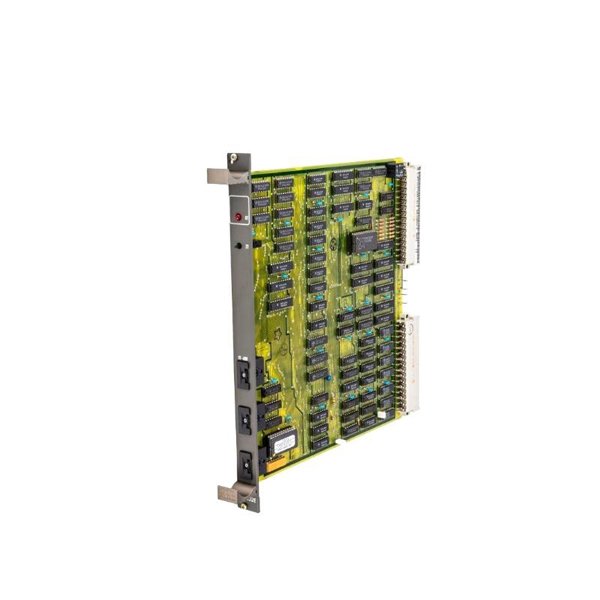

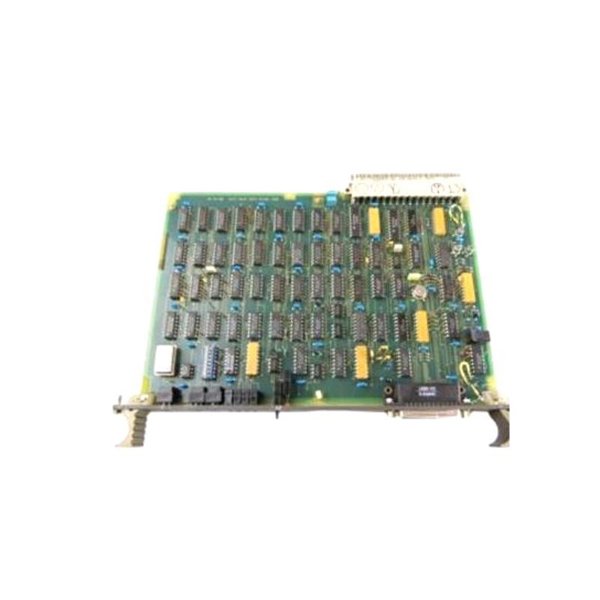

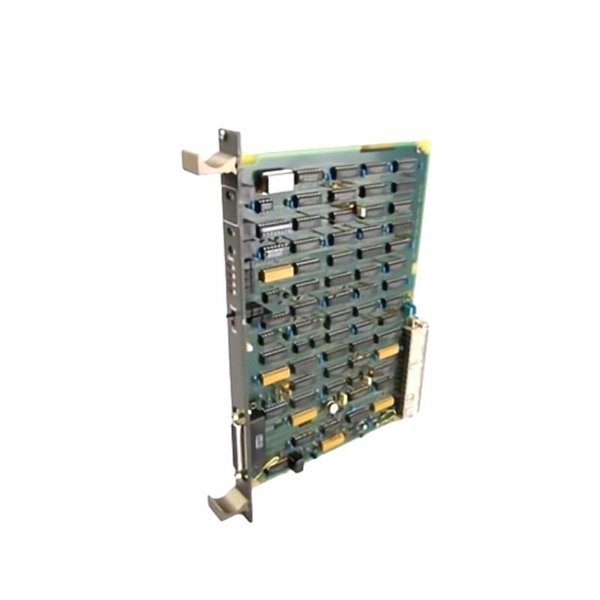

The ABB 88VA02A-E GJR2365700R1010 is a high-performance relay output module designed for integration within ABB’s Procontrol P14 automation system. This module provides reliable switching capabilities for various industrial applications, including motor control, solenoid operation, and lamp switching. Its robust design ensures dependable performance in demanding environments.

Technical Specifications

Applications

The ABB 88VA02A-E module is suitable for a wide range of industrial control applications, including:

• Motor Control: Managing the operation of motors in pumps, fans, and conveyors.

• Solenoid Control: Operating solenoids in valves and actuators.

• Lamp Control: Controlling lamps in signaling and indication systems.

Its high switching capacity and wide input voltage range make it versatile for various industrial environments.

Advantages

• High Switching Capacity: Capable of switching loads up to 8 A per channel, accommodating a variety of industrial devices.

• Wide Input Voltage Range: Operates across a broad voltage spectrum (24 VDC to 250 VAC), ensuring compatibility with different power systems.

• LED Status Indicators: Provides clear visual feedback on the status of each relay output, facilitating monitoring and diagnostics.

• Test Button: Allows manual operation of the relay outputs for testing purposes, enhancing maintenance efficiency.

• Protection Features: Equipped with safeguards against short circuits and overloads, promoting safe and reliable operation.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ABB 88VA02A-E module?

   It serves as a relay output module for switching various loads in industrial control applications.

2. How many channels does this module have?

   It features 2 independent relay channels.

3. What is the maximum load current per channel?

   Each channel can handle up to 8 A.

4. What is the input voltage range?

   The module operates within a range of 24 VDC to 250 VAC.

5. What type of output does it provide?

   It offers Form A (SPST) relay outputs.

6. Is there any indication for relay status?

   Yes, it has LED indicators for each relay output.

7. Can the relays be tested manually?

   Yes, the module includes a test button for manual operation.

8. What are the mounting options?

   It is designed for DIN rail mounting.

9. What is the operating temperature range?

   The module operates between -25°C and +55°C.

10. What protections are included?

    The module is protected against short circuits and overloads.
