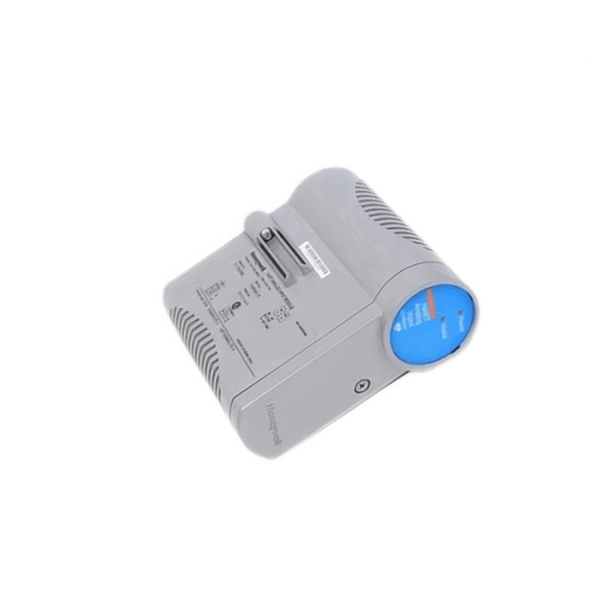

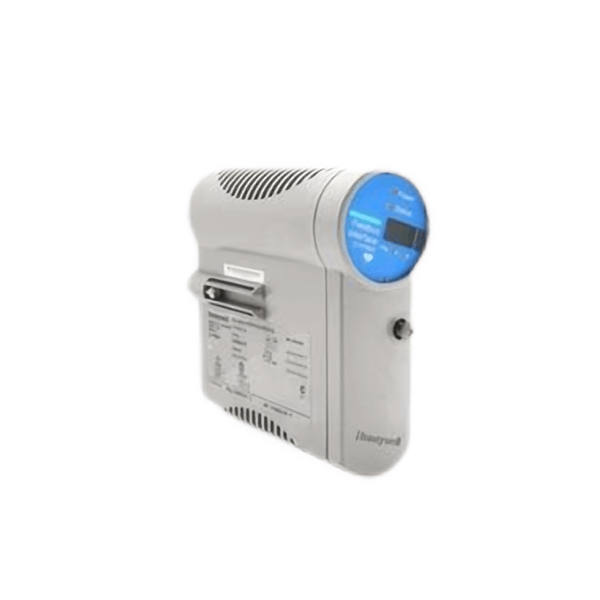

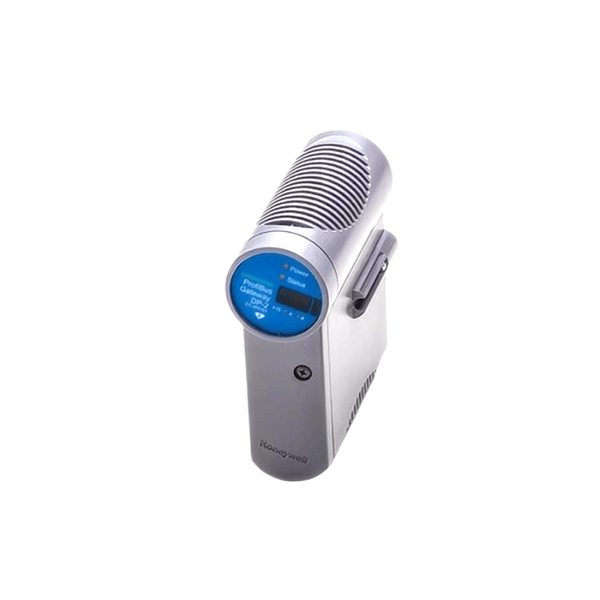

The CC-IP0101 Profibus DP Gateway Module is utilized across various industrial sectors to integrate Profibus DP devices into Honeywell’s control systems. Key application areas include:

• Manufacturing: Facilitates communication between production equipment and control systems.

• Process Control: Enhances data exchange between sensors, actuators, and controllers in process industries.

• Oil and Gas: Supports pipeline monitoring and SCADA systems.

• Water and Wastewater Treatment: Optimizes treatment plant automation.

• Building Automation: Integrates building management systems with industrial controls for improved energy efficiency.

Product Advantages

• Seamless Integration: Enables efficient communication between Profibus DP devices and Honeywell Experion systems.

• High Device Support: Supports up to 127 Profibus DP devices, allowing for extensive network integration.

• Flexible Communication: Supports baud rates from 9.6 kbps to 12 Mbps, accommodating various network requirements.

• Robust Design: Constructed with industrial-grade materials, ensuring durability in harsh environments.

• Compact Form Factor: The slim design facilitates easy installation in space-constrained settings.

• Diagnostic Capabilities: Includes features for monitoring network traffic and diagnosing network issues.

• Versatile Mounting: DIN rail mounting allows for straightforward installation and maintenance.

• Compliance and Certification: Meets CE and RoHS standards, ensuring adherence to international regulations.

FAQ

1. What is the primary function of the CC-IP0101 module?

   It serves as a gateway to connect Profibus DP devices to Honeywell’s Experion control systems, facilitating seamless communication and integration.

2. How many devices can the CC-IP0101 support?

   The module supports up to 127 Profibus DP devices, allowing for extensive network integration.

3. What are the supported baud rates?

   The CC-IP0101 supports baud rates ranging from 9.6 kbps to 12 Mbps, accommodating various network requirements.

4. Is the module compatible with both master and slave operations?

   Yes, it supports both master and slave operations, providing flexibility in network configurations.

5. What are the power requirements for the CC-IP0101?

   The module operates on a 24V DC power supply with a power consumption of 10 W.

6. What are the environmental operating conditions?

   It operates within a temperature range of -40°C to +85°C and a humidity range of 5% to 95% non-condensing.

7. What mounting options are available?

   The CC-IP0101 is designed for DIN rail mounting, facilitating easy installation in control panels.

8. Does the module have diagnostic capabilities?

   Yes, it includes features for monitoring network traffic and diagnosing network issues, enhancing maintenance and troubleshooting.

9. What materials are used in the construction of the module?

   The module is constructed from aluminum alloy, providing durability and resistance to industrial environments.

10. What certifications does the CC-IP0101 hold?

    It is certified with CE and RoHS standards, ensuring compliance with international safety and environmental regulations.
