Manufacturer:ABB
Product Number:BAMU-11 3AUA0000109935
Product Type:Auxiliary Measurement Unit
Origin:Sweden
Dimensions:200 x 150 x 100 mm
Weight:0.11 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

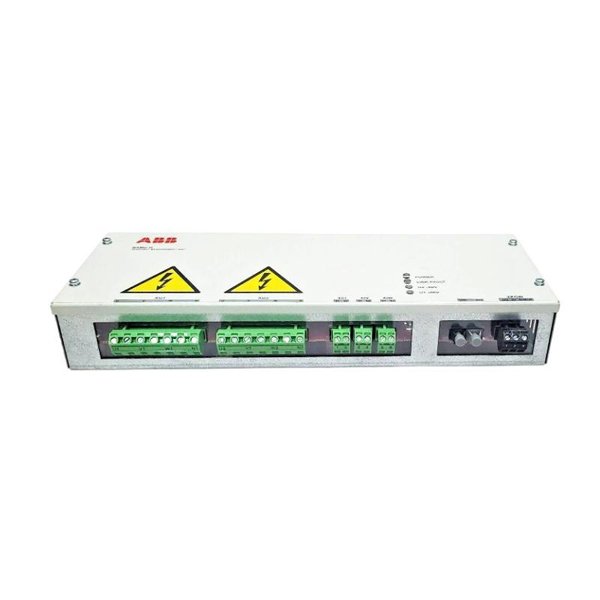

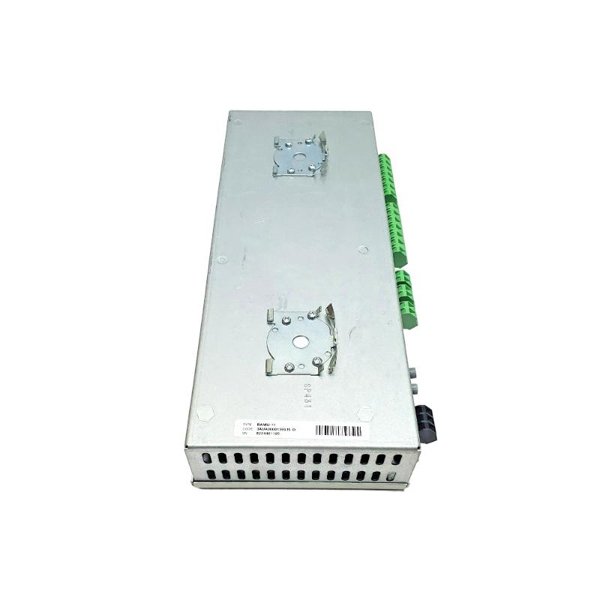

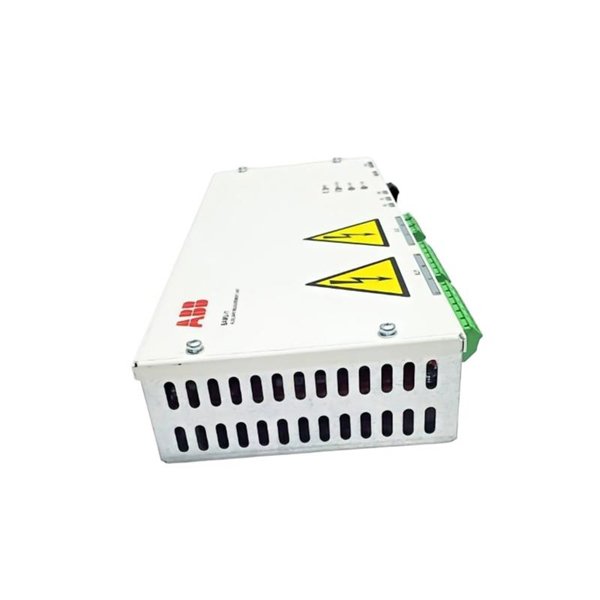

The ABB BAMU-11 (3AUA0000109935) Auxiliary Measurement Unit is a precision auxiliary module designed for use within ABB’s ACS800 and ACS880 industrial drive systems and broader automation platforms. The BAMU-11 is built to provide accurate and real-time measurement of key electrical and process parameters, enhancing control accuracy, diagnostics, and operational safety.
Primarily intended to work alongside variable speed drives (VSDs), motor controllers, and industrial automation equipment, the BAMU-11 expands the measurement capabilities of existing control systems by acquiring additional electrical signals such as voltage, current, temperature, or feedback signals from external sensors. The unit is a key component in ensuring closed-loop control, advanced monitoring, and protection functions within high-reliability automation environments.
Its robust design, compact DIN rail housing, and easy integration with ABB industrial drives make the BAMU-11 an ideal choice for OEM machine builders, system integrators, and industrial plant operators seeking to optimize drive performance and monitoring.
| Parameter | Specification |
|---|---|
| Model Number | BAMU-11 3AUA0000109935 |
| Product Type | Auxiliary Measurement Unit |
| Compatibility | ACS800, ACS880, ABB industrial drives |
| Measurement Channels | Multiple configurable (voltage, current, temp, feedback) |
| Measurement Type | Analog, digital, configurable |
| Input Voltage Range | 0 – 10 VDC (typical for analog channels) |
| Input Current Range | 0 – 20 mA (standard for process sensors) |
| Input Impedance | High impedance (>100 kΩ) |
| Measurement Accuracy | ±0.5% FS typical |
| Sampling Rate | 1000 samples per second |
| Signal Isolation | 500 V galvanic isolation |
| Communication Interface | RS-485 / Modbus RTU, ABB proprietary bus |
| Diagnostics | Self-diagnostics and signal verification |
| Power Supply Voltage | 24 VDC ±10% |
| Power Consumption | 3 W |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting Method | DIN rail mounting |
| Enclosure Rating | IP20 |
| Dimensions (H x W x D) | 200 x 150 x 100 mm |
| Weight | 0.11 kg |
| Certifications | CE, UL, RoHS compliant |
Variable Speed Drive Systems: Precise measurement of motor and system parameters in ACS800 / ACS880 installations
Process Industries: Measurement of flow, temperature, and pressure signals in complex process control systems
OEM Machine Building: Enhanced diagnostics and measurement in packaging, bottling, textile, and printing machines
Renewable Energy: Accurate signal acquisition in wind and solar inverter applications
Water Treatment: Monitoring of pump systems, sensors, and process feedback in water/wastewater treatment plants
HVAC & Building Automation: Advanced measurement of environmental and equipment parameters
Metals & Mining: Integration with ABB drives for conveyor, crusher, or mill applications
Chemical & Pharmaceutical: Real-time process variable acquisition to support batch control and monitoring
Marine & Offshore: Signal measurement in ship propulsion and auxiliary machinery systems
Energy Management: Monitoring in substation automation, distributed generation, or grid-interactive systems
Enhanced Measurement Capabilities: Adds flexible measurement functions to ABB drive systems
High Accuracy: Delivers precision readings for better control and diagnostics
Wide Sensor Compatibility: Supports multiple sensor types (analog and digital)
Robust Design: Built for demanding industrial environments with wide temperature and humidity tolerance
Flexible Integration: Seamlessly integrates with ABB drives and automation platforms
Compact Footprint: Small size suitable for installation in control cabinets with limited space
Galvanic Isolation: Ensures safe signal separation and prevents ground loops
User-Friendly: Easy configuration and diagnostics through ABB tools
Cost-Effective: Improves system performance without needing extensive hardware upgrades
Global Compliance: Certified for industrial use worldwide
What types of sensors can the BAMU-11 measure?
It can interface with voltage, current, temperature, and feedback sensors.
Which ABB drives are compatible with the BAMU-11?
The BAMU-11 works with ABB ACS800, ACS880, and similar industrial drives.
What is the measurement accuracy of the BAMU-11?
Typical measurement accuracy is ±0.5% full scale.
How is the unit mounted?
The BAMU-11 is designed for DIN rail mounting.
What communication protocols does it support?
It supports RS-485 / Modbus RTU and ABB proprietary communication buses.
Does the unit offer signal isolation?
Yes, it provides 500 V galvanic isolation on input channels.
Can I use the BAMU-11 in outdoor environments?
The unit is IP20 rated and should be housed in a protective enclosure for outdoor use.
What is the power supply requirement?
The unit requires a 24 VDC ±10% power supply.
Is firmware upgradeable?
Firmware upgrades are supported via ABB’s configuration software.
Does it support diagnostics?
Yes, self-diagnostics and signal verification features are included.
