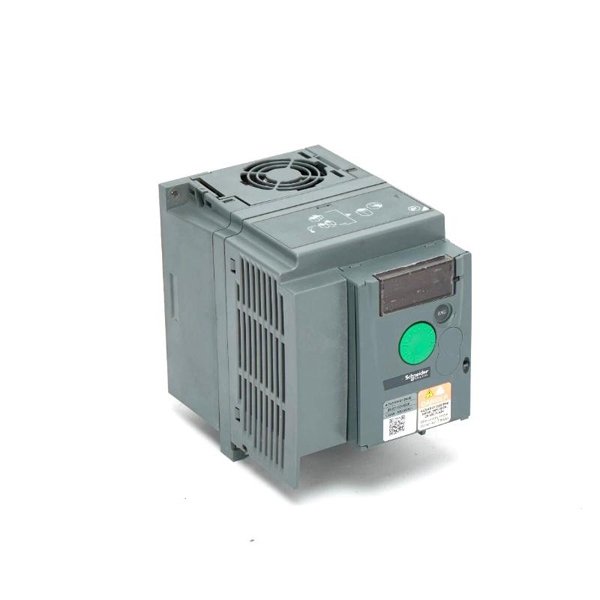

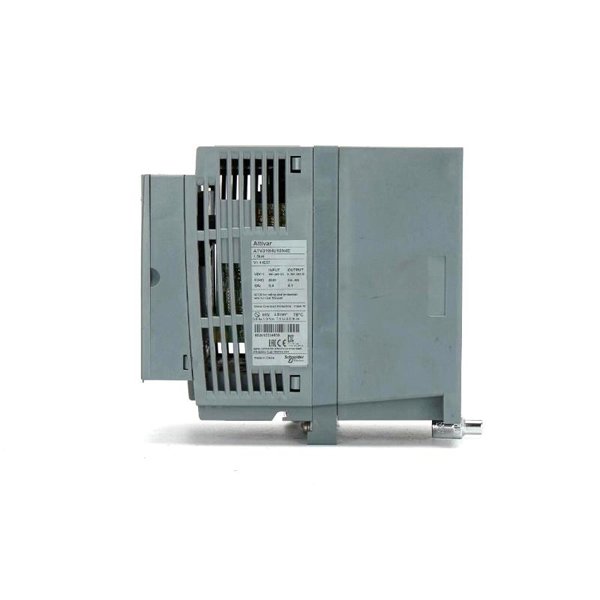

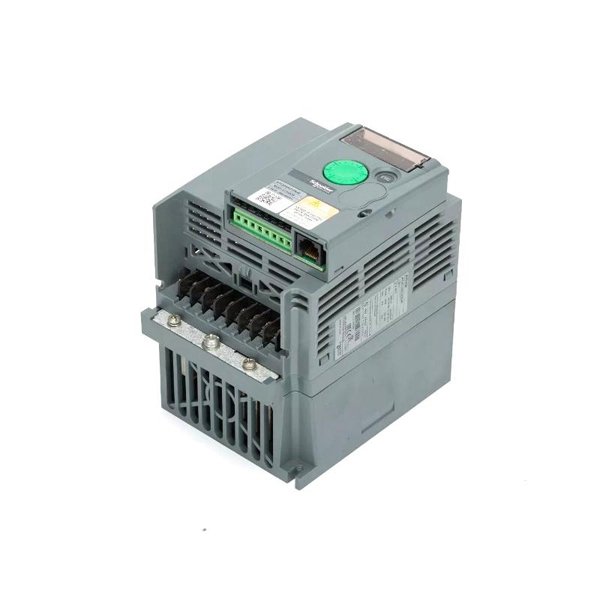

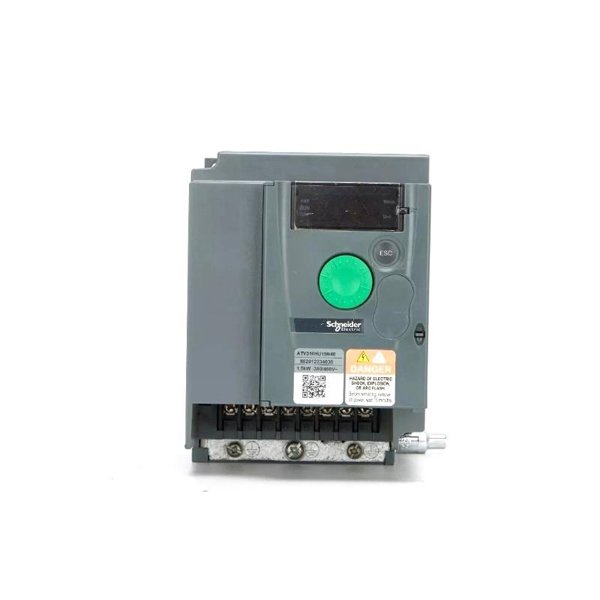

Schneider ATV310HU15N4E Variable Speed Drive

The Schneider ATV310HU15N4E is a compact, reliable variable speed drive designed for asynchronous motors. It offers precise motor control for industrial and commercial applications, supporting energy efficiency and ease of integration with Modbus communication.

Technical Specifications

Applications

• Conveyor systems

• Fans and pumps

• Packaging machinery

• HVAC systems

• Light-duty material handling

• General industrial automation

Advantages

• Compact design for easy installation

• Integrated Modbus communication for seamless control and monitoring

• High reliability in demanding environments

• Energy-efficient motor control

• User-friendly configuration and operation

FAQ

Q1: What type of motors can the ATV310HU15N4E control?

A1: It is designed for asynchronous (induction) motors.

Q2: What is the power rating of this model?

A2: The rated power is 1.5 kW (2 HP).

Q3: Does it support fieldbus communication?

A3: Yes, it has integrated Modbus RTU over RS485.

Q4: What is the degree of protection?

A4: The drive has an IP20 protection rating.

Q5: Can it operate in high-temperature environments?

A5: It can operate in ambient temperatures up to +50°C.

Q6: What is the maximum output frequency?

A6: The maximum output frequency is 400 Hz.

Q7: Is it suitable for fan and pump applications?

A7: Yes, it is ideal for such variable torque applications.

Q8: How compact is the drive?

A8: It measures only 143 x 105 x 151 mm and weighs 1.1 kg.

Q9: Is there an integrated braking resistor?

A9: No, an external braking resistor is required if braking is needed.

Q10: Can it handle overload conditions?

A10: Yes, it has overload protection features built in.
