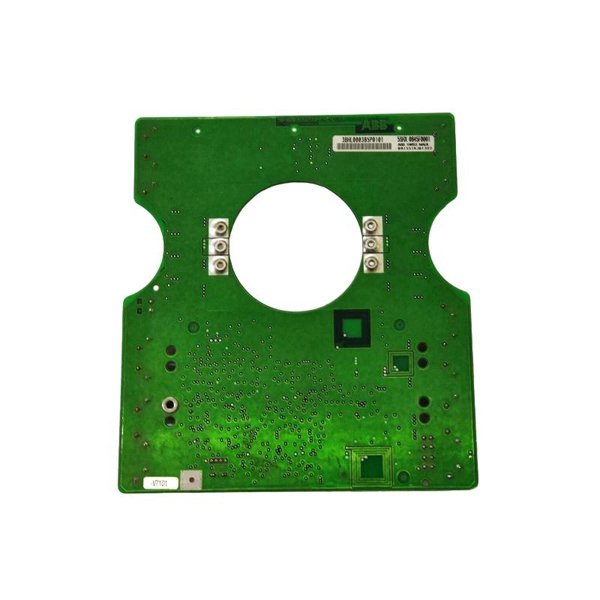

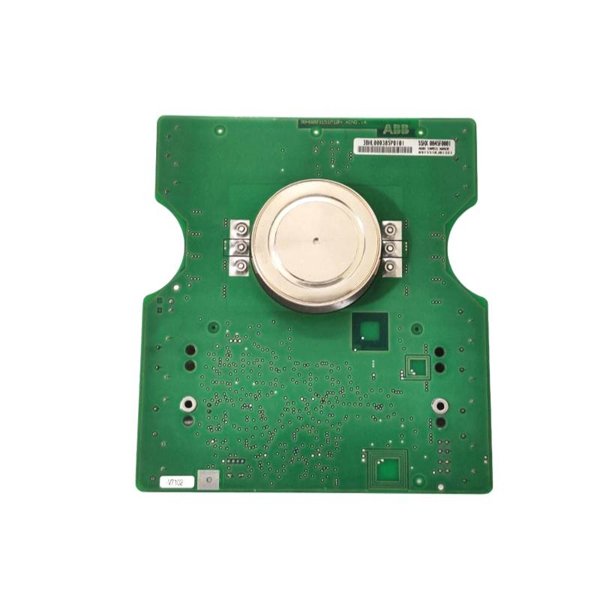

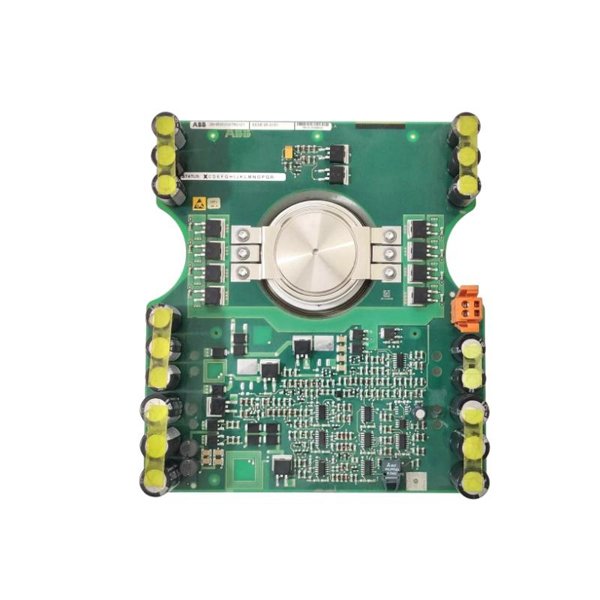

ABB 5SHX0845F0001 3BHL000385P0101 IGCT Module
Manufacturer:ABB
Product Number:5SHX0845F0001 3BHL000385P0101
Product Type:IGCT Module
Origin:Sweden (SE)
Dimensions:128 × 115 × 65 mm
Weight:1.2 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHX0845F0001 3BHL000385P0101 is an Integrated Gate-Commutated Thyristor (IGCT) designed for high-power industrial applications. Engineered for efficiency and rugged operation, it delivers reliable performance in demanding environments such as drives, power converters, and energy systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | IGCT Module |
| Part Number | 5SHX0845F0001 |
| ABB Order Code | 3BHL000385P0101 |
| Maximum Voltage | 4500 V |
| Maximum Current | 4000 A |
| Switching Frequency | Up to 1 kHz |
| Application | High-Power Converters, Drives |
| Cooling Type | Forced Air or Liquid |
| Dimensions (W × H × D) | 128 × 115 × 65 mm |
| Weight | 1.2 kg |
Product Applications
-
Medium-voltage motor drives
-
Static synchronous compensators (STATCOM)
-
Traction and railway systems
-
High-power industrial inverters
-
HVDC and FACTS systems
Product Advantages
High Power Density: Supports high current and voltage in compact size
Fast Switching: Low turn-on and turn-off losses
Long Service Life: High thermal cycling and mechanical durability
Reduced Downtime: Robust against failure and harsh conditions
Low Maintenance: Integrated design minimizes external circuitry
Frequently Asked Questions (FAQ)
Q1: What is the voltage rating of the ABB 5SHX0845F0001?
A1: The device has a voltage rating of 4500 V.
Q2: What is the current handling capability of this IGCT?
A2: It can handle up to 4000 A.
Q3: What kind of cooling does the module require?
A3: It supports both forced air and liquid cooling.
Q4: Is this IGCT suitable for traction applications?
A4: Yes, it is widely used in railway traction systems.
Q5: What are the module’s dimensions and weight?
A5: The module measures 128 × 115 × 65 mm and weighs 1.2 kg.
Q6: Can this module operate in high-frequency applications?
A6: Yes, it supports switching frequencies up to 1 kHz.
Q7: Is this module compatible with ABB’s HVDC systems?
A7: Yes, it is suitable for HVDC and FACTS-based installations.
Q8: Does the module integrate gate drive functions?
A8: Yes, it comes with an integrated gate driver.
Q9: What are the typical industries using this module?
A9: Heavy industries, power transmission, and transportation sectors.
Q10: What is the life expectancy of this module?
A10: Designed for long-term operation with high reliability under tough conditions.
