Manufacturer:Woodward
Product Number:5464-643
Product Type:Discrete Input Modules
Origin:USA
Dimensions:180 × 120 × 25 mm
Weight:0.5kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

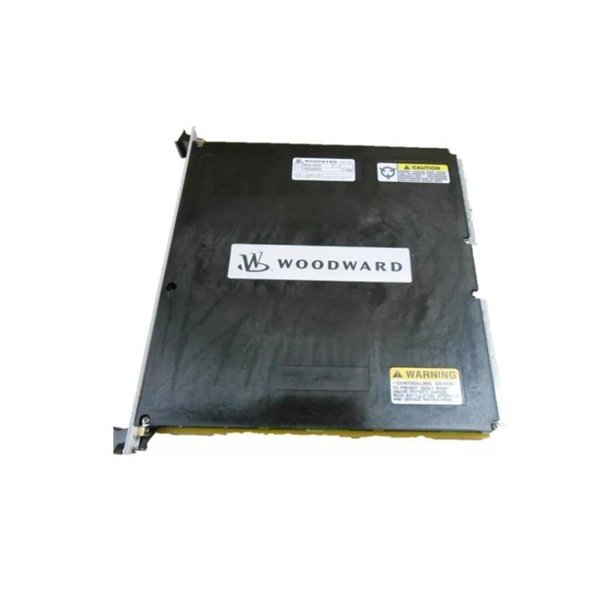

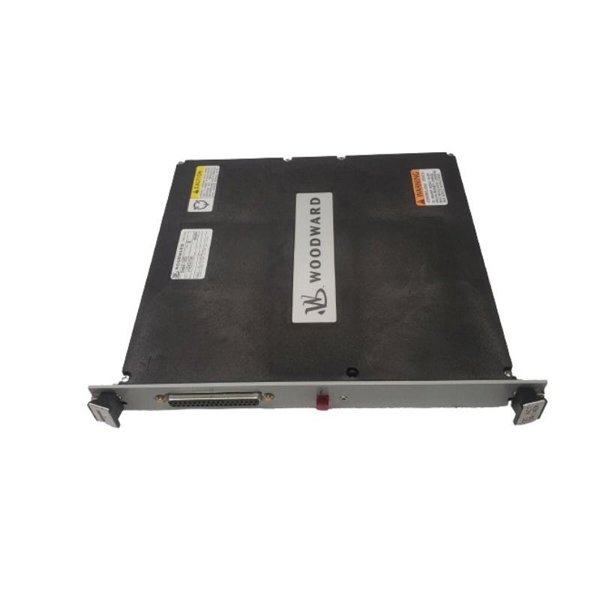

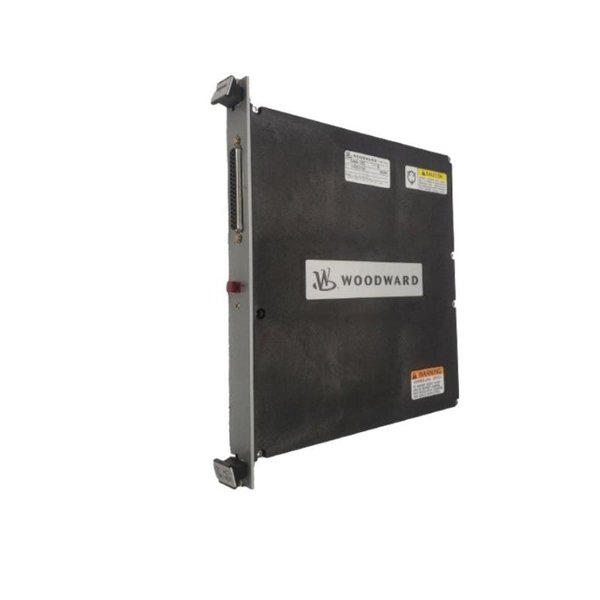

The Woodward 5464-643 Discrete Input Module is a reliable and high-performance component designed to collect digital signals from field devices such as switches, sensors, and relays in industrial control systems. Built for compatibility with Woodward’s MicroNet™ and NetCon™ platforms, this module provides real-time digital signal acquisition for monitoring and control applications in demanding industrial environments.
32-channel discrete input module
Fast signal response time for critical control systems
Designed for robust industrial applications
LED indicators for channel status diagnostics
Isolated input channels for enhanced signal integrity
Plug-and-play integration with Woodward systems
DIN rail or chassis mount installation
| Parameter | Specification |
|---|---|
| Model Number | 5464-643 |
| Module Type | Discrete Input Module |
| Number of Channels | 32 discrete input channels |
| Input Voltage Range | 18–32 VDC (typical) |
| Input Signal Type | Dry contact or active DC signals |
| Input Isolation | Optical isolation between channels and system bus |
| Status Indication | Per-channel LED indicators |
| Scan Time | <1 ms typical |
| Diagnostics | Input state and fault detection |
| Mounting Style | Rack or chassis-mounted |
| Dimensions | 180 × 120 × 25 mm |
| Weight | 0.5 kg |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –55 °C to +85 °C |
| Designed For | Woodward MicroNet™, NetCon™, and compatible systems |
| Country of Manufacture | United States of America |
Turbine control systems
Engine and generator monitoring
Industrial automation and safety systems
Power plant instrumentation
Manufacturing process control
What does the 5464-643 module do?
It collects 32 discrete input signals for use in industrial control systems.
Which systems is it compatible with?
It is designed for Woodward MicroNet™ and NetCon™ platforms.
Are the input channels isolated?
Yes, each channel features optical isolation.
Does it support signal diagnostics?
Yes, it includes input status and fault detection features.
What kind of signals can it accept?
Both dry contacts and active 24 VDC signals.
How is it mounted?
It can be rack-mounted or integrated into chassis systems.
Is it hot-swappable?
This depends on system design—refer to specific platform documentation.
What is its operating temperature range?
From –40 °C to +70 °C.
Is it suitable for safety applications?
Yes, when implemented within a certified safety system.
Where is it manufactured?
In the United States.
