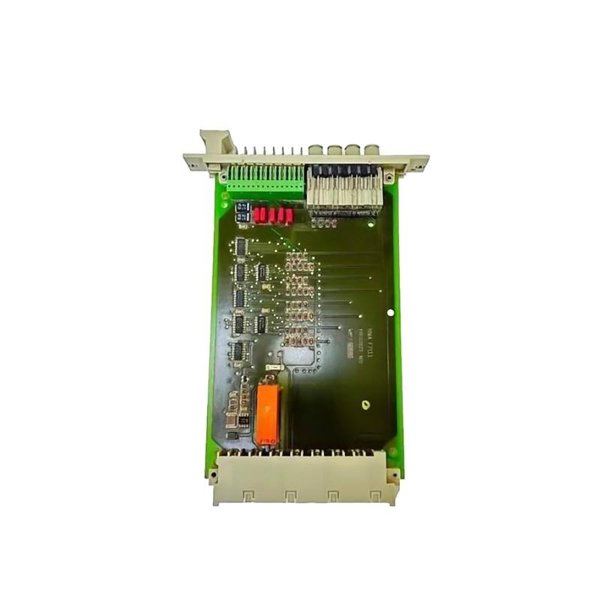

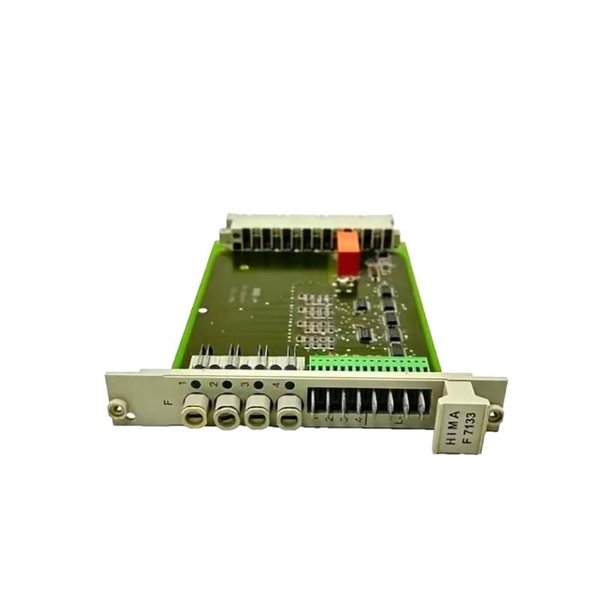

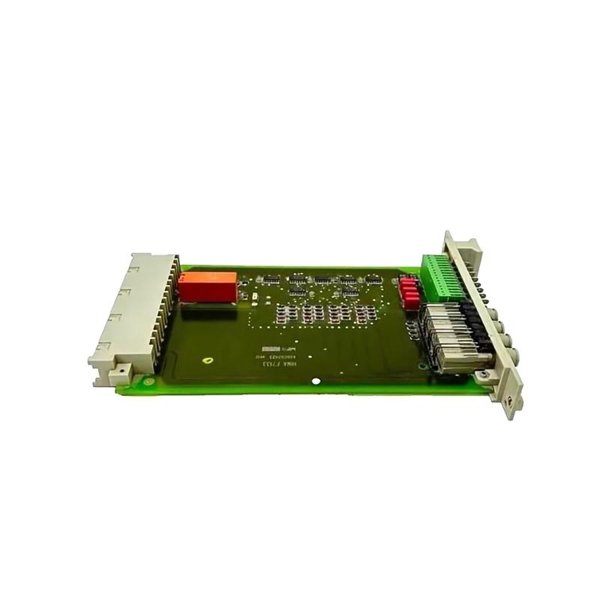

The HIMA F7133 Power Distribution Module is a vital component designed to efficiently manage and distribute electrical power within safety-related control systems. This module provides a reliable and secure method for supplying power to multiple system components while maintaining the highest standards of safety and operational integrity.

Engineered to meet the stringent requirements of safety instrumented systems (SIS), the F7133 ensures uninterrupted power distribution with built-in redundancy and fault detection capabilities. It acts as a centralized hub for power routing and protection, facilitating system stability and reducing risks associated with power failures or disturbances.

The module’s robust construction and flexible configuration options allow it to be seamlessly integrated into various industrial environments, ranging from process automation to critical infrastructure. The F7133 supports a wide input voltage range and offers precise monitoring of output circuits, thus enabling proactive maintenance and enhanced safety performance.

Product Specifications

Product Applications

• Safety Instrumented Systems (SIS): Centralized power distribution with fault detection to safeguard emergency shutdown systems.

• Process Control: Reliable power routing for chemical, petrochemical, and manufacturing plants.

• Energy Sector: Power management in power generation and distribution plants.

• Oil & Gas Industry: Safe power distribution in hazardous and remote locations.

• Transportation: Power supply distribution for signaling and control systems in railways and mass transit.

• Infrastructure Automation: Power monitoring for critical infrastructure including water treatment and utilities.

Product Advantages

• Safety Certification: Fully compliant with SIL 3, ensuring suitability for high-integrity safety applications.

• Fault Detection: Early identification of overloads, short circuits, and other power anomalies to prevent system failure.

• Modular Design: Flexible configuration with multiple output channels to meet diverse system requirements.

• Robust Construction: Designed for harsh industrial environments, including explosive atmospheres with ATEX and IECEx approvals.

• Efficient Power Management: Optimizes power distribution, reducing downtime and increasing system availability.

• Integrated Communication: Enables easy integration into industrial networks for remote monitoring and diagnostics.

• Compact Size: Saves space in control cabinets, allowing more efficient system design and maintenance.

Frequently Asked Questions (FAQ)

1. What is the maximum current per output channel on the F7133?

   Each output channel supports up to 10 A maximum current.

2. Can the module detect faults such as overload or short circuit?

   Yes, it provides continuous monitoring and detection of overloads and short circuits on all output channels.

3. Is the F7133 suitable for use in hazardous areas?

   Yes, it carries ATEX and IECEx certifications for use in explosive environments.

4. How many output channels does the module support?

   The standard configuration supports up to 8 independently monitored outputs.

5. What kind of communication interfaces does it support?

   PROFIBUS DP and Modbus TCP communication interfaces are available optionally for integration into control systems.

6. What are the installation requirements for the module?

   It is designed for DIN rail mounting inside standard control cabinets.

7. What are the environmental limits for operating temperature and humidity?

   The device operates reliably between -20 °C and +70 °C and can tolerate 5% to 95% relative humidity, non-condensing.

8. Does the module provide status feedback for each power channel?

   Yes, it provides detailed status and fault information for each individual output.

9. Is the module compliant with safety standards?

   Yes, it is SIL 3 certified, meeting rigorous safety requirements for industrial safety systems.

10. What are the physical weight of the F7133?

    The module weighs 1.5 kg.
