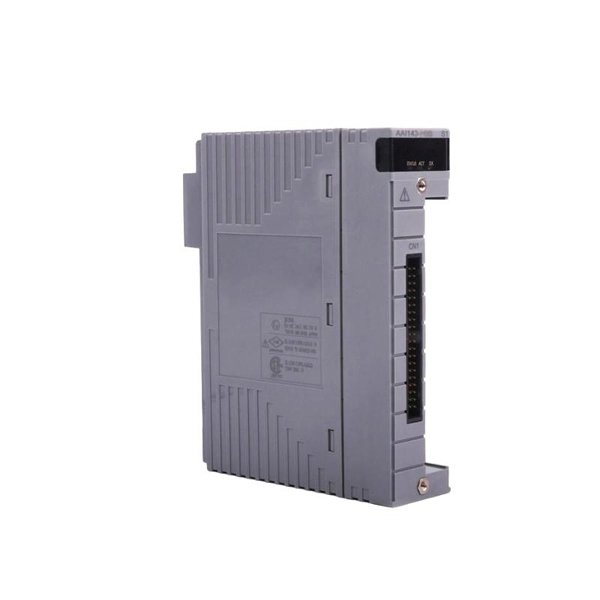

The Yokogawa AAI143-S03/A4S00 Analog Input Module is a key component in Yokogawa’s advanced industrial automation systems. This module is part of Yokogawa’s Centum CS 3000 and ProSafe-RS control systems, providing high-precision analog signal processing for a wide range of industrial applications. The AAI143-S03/A4S00 module is designed to convert analog input signals into a digital format that can be processed by the control system, ensuring accurate and reliable data acquisition.

The module supports multiple types of input signals, including 4-20mA, 0-10V, thermocouples, and RTDs. This versatility makes it suitable for use in a variety of industries, including chemical plants, power generation, water treatment facilities, and manufacturing plants. Its robust construction ensures it performs reliably even in harsh industrial environments.

This model is designed for ease of installation and maintenance. It features LED indicators for each input channel, providing real-time status information. The module is compact and space-efficient, making it easy to integrate into existing systems.

Product Specifications

Below are the detailed specifications of the Yokogawa AAI143-S03/A4S00 Analog Input Module:

Product Applications

The Yokogawa AAI143-S03/A4S00 Analog Input Module is used in a wide variety of industrial applications due to its ability to handle multiple types of analog inputs. Some key application areas include:

• Process Control Systems: In chemical, pharmaceutical, and petrochemical industries, the module plays a vital role in monitoring and controlling process variables such as temperature, pressure, and flow.

• Energy Management: The module can be used to monitor energy consumption and optimize energy flow in power plants and manufacturing facilities.

• Water and Wastewater Treatment: It interfaces with various sensors in water treatment plants to measure parameters such as pH, temperature, turbidity, and pressure.

• Automation in Manufacturing Plants: Used to monitor and control machines and systems, ensuring optimal operation of production lines.

• Environmental Monitoring: In systems that require the monitoring of air and water quality, the AAI143-S03/A4S00 is used to gather data from various environmental sensors.

• Building Automation Systems: The module can be employed in HVAC systems, lighting controls, and other building management applications to maintain efficiency and comfort.

Product Advantages

The Yokogawa AAI143-S03/A4S00 Analog Input Module provides numerous advantages, making it a preferred choice for industrial automation:

• High-Precision Signal Conversion: With a 16-bit resolution, the module offers highly accurate signal processing, ensuring that the data passed to the control system is reliable and precise.

• Multiple Signal Types: The module is compatible with a wide range of signal types, including 4-20mA, 0-10V, thermocouples, and RTDs, making it versatile for various industrial applications.

• Compact and Space-Saving Design: Measuring just 107.5 × 32.8 × 130 mm, the AAI143-S03/A4S00 is designed to be compact, making it suitable for installations where space is limited.

• Fast Signal Conversion: The module performs signal conversion in just 100ms per channel, ensuring quick data acquisition for time-sensitive applications.

• Easy Integration with Yokogawa Systems: The module seamlessly integrates with Centum CS 3000 and ProSafe-RS systems, simplifying installation and operation within existing Yokogawa infrastructures.

• Reliable Performance in Harsh Environments: The module is engineered to function reliably in challenging industrial environments, with a wide temperature operating range and robust construction.

• Built-In Status Indicators: The inclusion of LED indicators for each input channel provides clear, real-time feedback on the status of the inputs, which helps with troubleshooting and maintenance.

• Low Power Consumption: Operating on a 24V DC power supply, the module consumes low power, making it cost-effective for large-scale industrial setups.

Frequently Asked Questions (FAQ)

1. What types of signals does the AAI143-S03/A4S00 module support?

   • The module supports 4-20mA, 0-10V, thermocouple, and RTD signals.

2. How many input channels does the AAI143-S03/A4S00 have?

   • The module provides 4 independent analog input channels.

3. What is the resolution of the AAI143-S03/A4S00 module?

   • It offers 16-bit resolution for each channel, ensuring high precision.

4. How long does it take to convert signals with this module?

   • Signal conversion takes approximately 100ms per channel.

5. What is the operating temperature range of the AAI143-S03/A4S00 module?

   • The module operates within the temperature range of -10°C to +60°C.

6. What is the power supply required for the AAI143-S03/A4S00 module?

   • The module requires a 24V DC power supply.

7. How is the module mounted?

   • It is designed for DIN rail mounting, making installation easy and secure.

8. What feedback does the module provide on input status?

   • The module has LED indicators for each channel that display real-time status.

9. Is this module compatible with other Yokogawa systems?

   • Yes, it is fully compatible with Centum CS 3000 and ProSafe-RS systems.

10. Can the AAI143-S03/A4S00 be used outdoors?

    • While the module is designed for industrial environments, it should be used in controlled environments with proper enclosures to protect it from harsh outdoor conditions.
