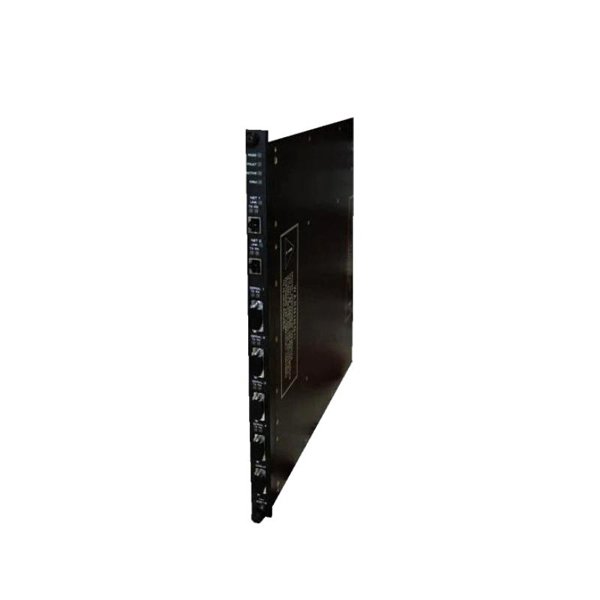

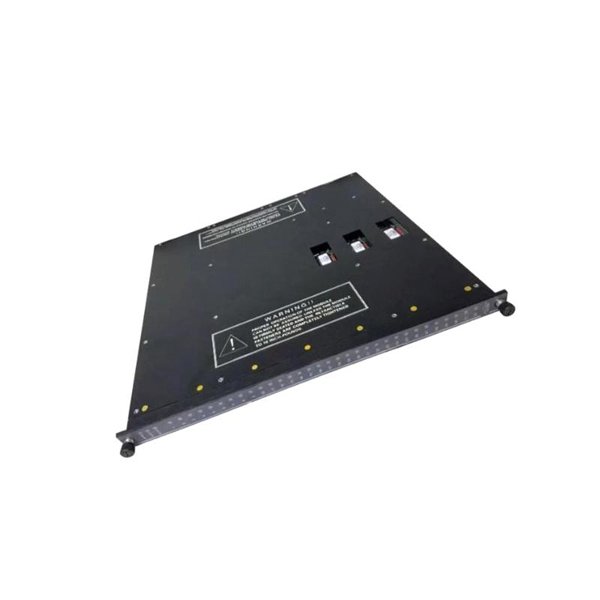

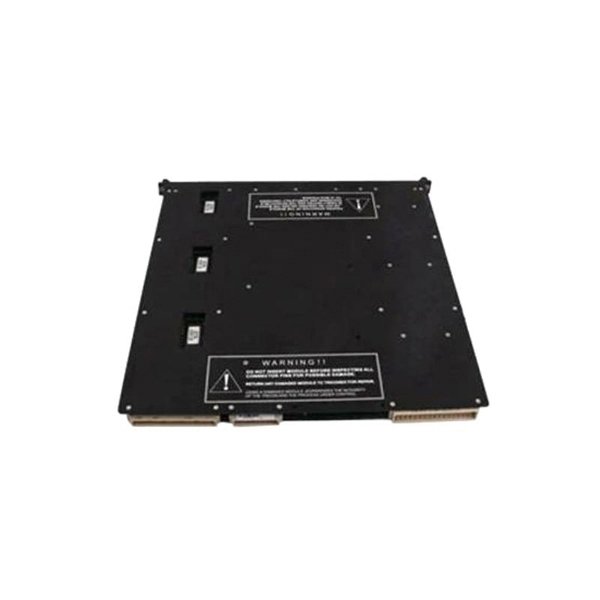

The Invensys Triconex 3674 Digital Output Module is part of the Triconex system, offering a reliable and safe solution for managing digital output signals in critical industrial applications. The Triconex 3674 module is designed to deliver high performance in safety-critical environments, particularly in industries such as oil and gas, chemical, and power generation. It is an essential component in the Triconex safety system, offering a fail-safe, high-integrity solution for controlling various processes.

The module provides 16 independent digital output channels, which can be used to control equipment like valves, actuators, and alarms. These outputs are designed to interface with other systems, providing necessary feedback in control and safety applications. As part of the Triconex Triple Modular Redundancy (TMR) architecture, it ensures that safety functions are maintained even during component failures, ensuring the highest level of reliability and availability.

The 3674 module integrates seamlessly into Triconex systems, supporting both standard and high-availability configurations. It is designed for quick installation and offers excellent flexibility in I/O configuration, making it suitable for both small and large systems. With built-in diagnostics, it helps to maintain operational uptime and reduce system downtime.

Product Specifications

Applications

The Invensys Triconex 3674 Digital Output Module is widely used in critical industries where safety, control, and reliability are paramount. Its key applications include:

1. Safety Instrumented Systems (SIS): In SIS applications, the 3674 module controls the digital output of safety functions such as emergency shutdown (ESD) and fire and gas detection systems.

2. Process Automation: The module plays a crucial role in the automation of industrial processes by controlling valves, actuators, and other equipment in process control loops.

3. Control of Actuators and Valves: The digital output channels control actuators and valves in systems that require high precision and reliability.

4. Shutdown Systems: Used in shutdown systems where fail-safe operations are required to quickly stop processes and prevent accidents.

5. Emergency Shutdown Systems (ESD): In safety-critical applications such as oil & gas, power plants, and chemical industries, the module is used to activate emergency shutdown mechanisms, preventing hazardous incidents.

6. Gas Turbine Control: The 3674 module is used in the precise control of gas turbines, providing reliable output signals to ensure smooth and safe operation.

7. Industrial Alarm Systems: It can be used for triggering alarms in response to faults or dangerous situations, providing immediate control actions to safeguard assets.

Advantages

• High Integrity and Reliability: The 3674 module is part of the Triconex TMR system, which is designed to maintain system integrity even in the event of component failures. This makes it suitable for safety-critical applications that demand continuous operation.

• SIL 3 Certified: The module is SIL 3 certified, ensuring that it meets the highest standards of safety and is compliant with international functional safety regulations.

• 16 Independent Channels: With 16 channels, the 3674 module offers flexibility and high output capacity, supporting a wide range of industrial control applications.

• Easy Integration: The module integrates seamlessly into Triconex’s architecture, reducing installation time and providing ease of maintenance.

• Built-in Diagnostics: The 3674 includes comprehensive diagnostics features that allow for early fault detection and help reduce system downtime.

• Wide Temperature Range: It operates effectively within a temperature range of -20°C to +60°C, making it suitable for a variety of environments, including harsh conditions.

• Compact and Efficient: Despite its robust functionality, the 3674 module is compact, saving space in control panels and cabinets while delivering high performance.

• Flexible Mounting Options: It is designed for DIN rail mounting, allowing easy and standardized installation in control systems.

FAQ

1.What is the primary function of the Triconex 3674 Digital Output Module?

The 3674 module is used to provide digital outputs for controlling equipment like valves and actuators in critical industrial safety and control systems.

2.How many output channels does the 3674 module have?

The module has 16 independent output channels.

3.What is the maximum current rating for each output channel?

Each channel can handle up to 0.5A of current.

4.What certifications does the Triconex 3674 module have?

The module is UL, CE, and CSA certified and is SIL 3 certified for functional safety.

5.What is the voltage range for the digital outputs?

The module operates with a 24V DC supply for the digital outputs.

6.What is the operating temperature range for the 3674 module?

The module operates effectively in a temperature range from -20°C to +60°C.

7.How is the 3674 module mounted?

The module is mounted on a DIN rail, providing a standardized and secure installation method.

8.Can the 3674 module be used in hazardous environments?

Yes, the 3674 is designed for use in industrial environments, including hazardous and demanding applications.

9.What diagnostic features are included with the module?

The module has built-in diagnostic capabilities for early fault detection, ensuring high uptime and reliability.

10.What industries typically use the Triconex 3674 Digital Output Module?

The 3674 is used in industries such as oil & gas, chemical processing, power generation, and other sectors where safety and control are critical.
