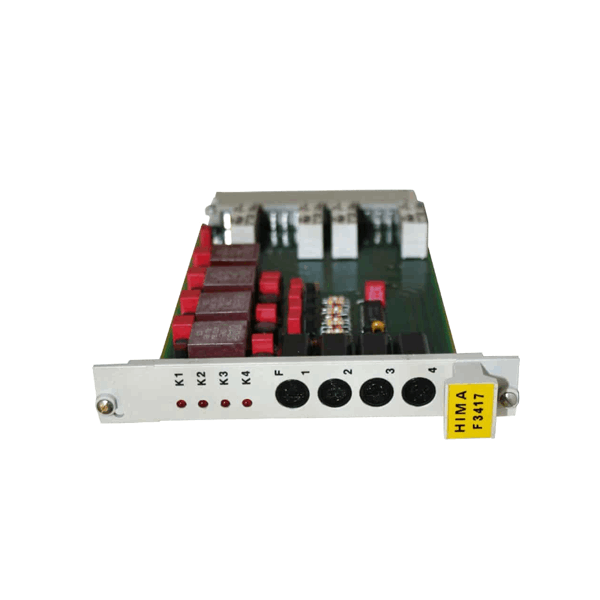

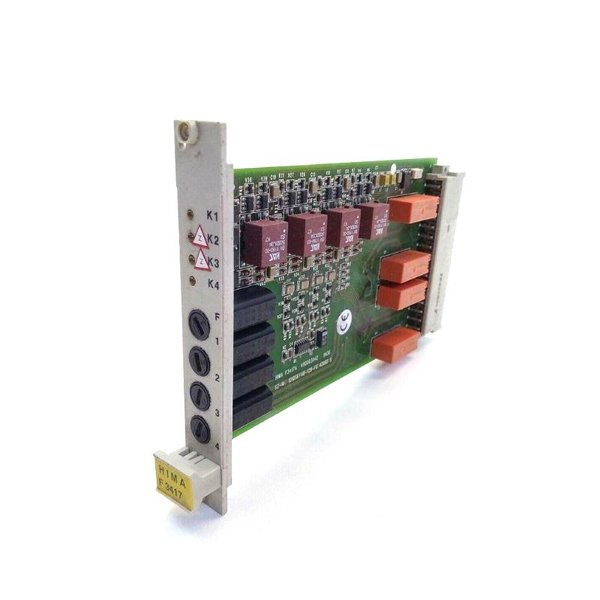

The HIMA F3417 4-Fold Relay Amplifier Module is a high-performance, safety-critical component used in industrial control and automation systems. It is specifically designed for use in safety applications where reliability and precision are paramount. The F3417 module features four independent relay outputs, which are controlled by safety-rated signals from the system’s control logic.

This module is part of the HIMA family of safety components and is designed to meet rigorous international safety standards such as IEC 61508 and ISO 13849. It is widely used in critical processes in industries like oil and gas, chemical processing, and power generation, where maintaining system integrity and ensuring the safe operation of machinery are of the utmost importance.

The F3417 is engineered to provide a high level of flexibility and scalability, making it a vital component in achieving the required safety functions in complex control systems. The design ensures ease of installation, integration, and maintenance, making it an ideal choice for applications that require a reliable relay solution.

Product Specifications

Applications

The HIMA F3417 4-Fold Relay Amplifier Module is widely used in the following applications:

1. Safety Instrumented Systems (SIS): In process industries, such as oil and gas, chemical plants, and power generation, where safety functions must be monitored and controlled to prevent hazards.
2. Control Systems for Hazardous Environments: The module ensures safe operation in critical control systems where failures can lead to safety risks or catastrophic events.
3. Emergency Shutdown Systems (ESD): Used in systems that require quick and reliable relay actions to shut down processes safely in emergency situations.
4. Fire and Gas Systems: Integrated into safety systems designed to detect and respond to hazardous conditions such as fire or gas leaks.
5. Process Automation: It is used in various automated processes that require precise relay actions for control of mechanical systems, valves, and other critical machinery.

Advantages

• High Reliability: Designed for SIL 3 applications, ensuring maximum safety and reducing the risk of failure in mission-critical systems.
• Independent Relay Outputs: Four independent relay outputs provide flexibility for controlling different devices or safety systems simultaneously.
• Compact and Flexible: The compact size of the F3417 allows for easy installation on DIN rails, saving space and simplifying system integration.
• Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the module performs reliably in both harsh industrial and outdoor environments.
• Low Power Consumption: The module operates efficiently with a low power consumption of just 3W, making it an energy-efficient component in control systems.
• Easy Integration: The module is easily integrated with HIMA’s safety systems, ensuring a seamless and straightforward setup.
• Certified Safety Standards: The module is certified for SIL 3, guaranteeing that it meets the highest standards for functional safety.
• Durable Construction: The ABS housing ensures durability, providing a long service life even in challenging industrial environments.

FAQ (Frequently Asked Questions)

1.What is the purpose of the HIMA F3417 4-Fold Relay Amplifier Module?

The F3417 module is designed to provide reliable relay outputs for safety functions in industrial control systems, meeting SIL 3 safety standards.

2.How many relay outputs does the F3417 module have?

The F3417 features four independent relay outputs, offering flexibility for controlling different devices.

3.What is the supply voltage of the F3417 module?

The module operates with a supply voltage of 24V DC.

4.What is the temperature range in which the F3417 can operate?

The F3417 can operate in temperatures ranging from -20°C to +60°C.

5.What safety certification does the F3417 module meet?

The F3417 is certified for SIL 3, ensuring it meets the highest safety standards for industrial applications.

6.What is the weight of the F3417 module?

The F3417 weighs 0.5 kg.

7.How is the F3417 mounted?

The F3417 is designed for mounting on a DIN rail, which makes installation easy and straightforward.

8.Can the F3417 module be used in hazardous environments?

Yes, the F3417 is suitable for use in hazardous environments and meets safety standards required for such applications.

9.What is the power consumption of the F3417 module?

The F3417 module consumes 3W of power during operation.

10.What industries typically use the F3417 module?

The F3417 is used in industries such as oil and gas, chemical processing, power generation, and other safety-critical applications.
