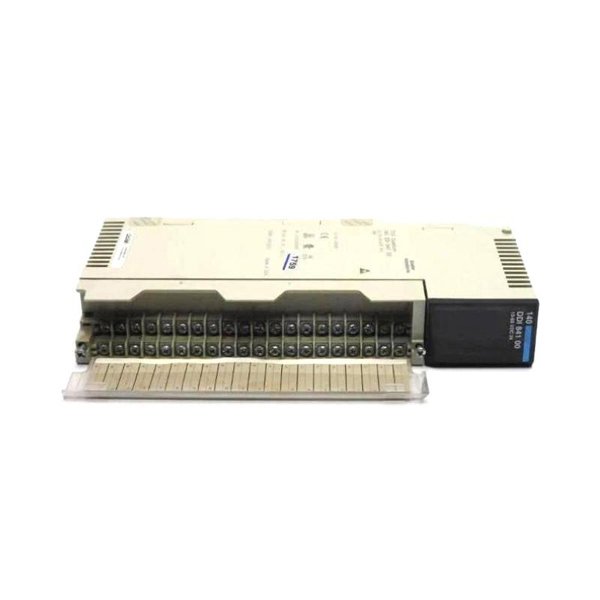

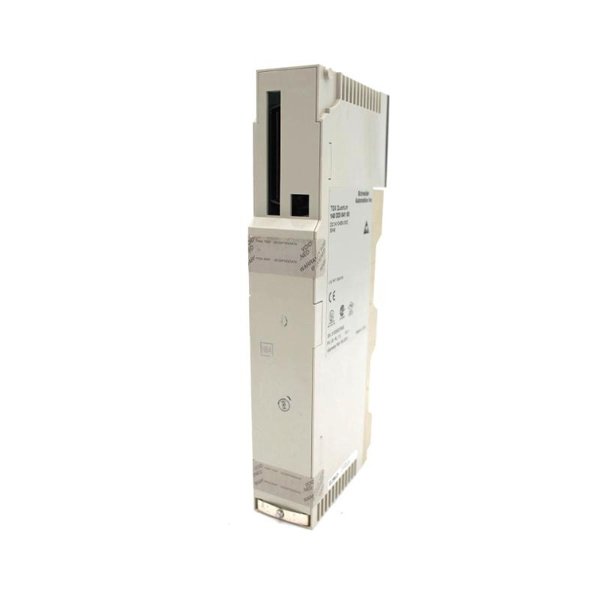

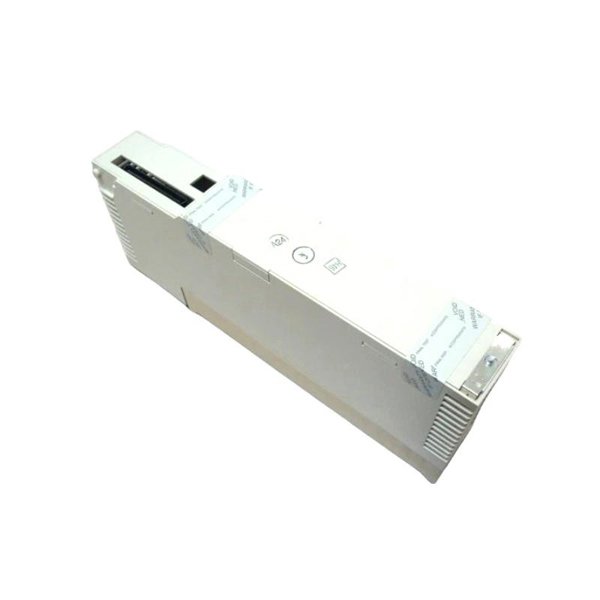

Schneider 140DDI84100C Discrete Input Module
Manufacturer:Schneider
Product Number:140DDI84100C
Product Type:Discrete Input Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.3 kg
Views:57
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
Schneider 140DDI84100C is a high-density discrete input module designed for Modicon Quantum automation platforms. It provides reliable and fast input signal acquisition, making it ideal for industrial automation systems requiring precise and robust discrete input handling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Input Module |
| Manufacturer | Schneider Electric |
| Model | 140DDI84100C |
| Input Type | 32-point, 24V DC Positive Logic |
| Input Voltage Range | 19…30V DC |
| Input Current | 6 mA per point at 24V DC |
| Input Delay | < 4 ms |
| Isolation | 1500V RMS |
| Backplane Current | 270 mA at 5V DC |
| Mounting | Rack-mounted (Quantum Rack) |
| Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0…60°C |
| Storage Temperature | -40…85°C |
Applications
Schneider 140DDI84100C is widely used in:
-
Factory automation systems
-
Process control industries
-
Packaging and material handling
-
Water treatment plants
-
Power generation and distribution control
Advantages
-
High input density, saving panel space
-
Fast and reliable input response for critical processes
-
Excellent electrical isolation for protection
-
Compatible with Modicon Quantum PLCs
-
Easy integration and maintenance
FAQ
Q1: What is the input voltage of the 140DDI84100C?
A1: It operates at 24V DC, with a range of 19–30V DC.
Q2: How many input points does it have?
A2: It features 32 discrete input points.
Q3: What logic does it use?
A3: It uses positive logic.
Q4: What is the input current per point?
A4: Approximately 6 mA at 24V DC.
Q5: What is its isolation voltage?
A5: 1500V RMS isolation.
Q6: Is it hot-swappable?
A6: Yes, it supports hot-swapping in Quantum racks.
Q7: What are the module dimensions?
A7: 103.9 × 40.3 × 250 mm.
Q8: How much does it weigh?
A8: About 0.3 kg.
Q9: Can it operate in high-temperature environments?
A9: Yes, within 0…60°C.
Q10: Which PLC series is it designed for?
A10: It is designed for Schneider Modicon Quantum PLCs.
