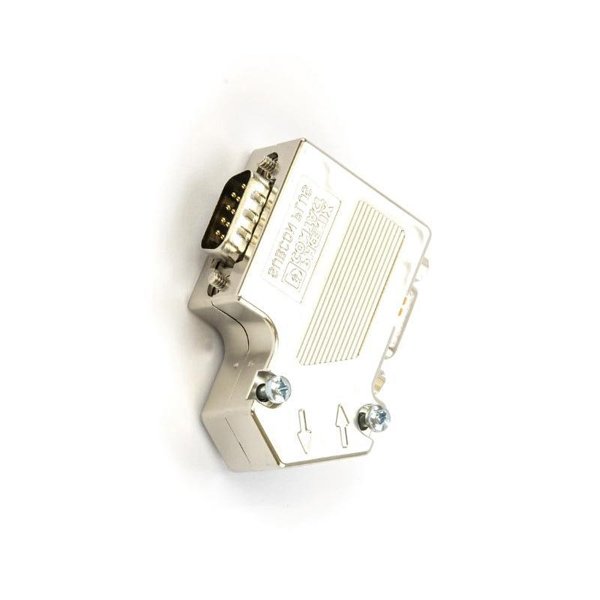

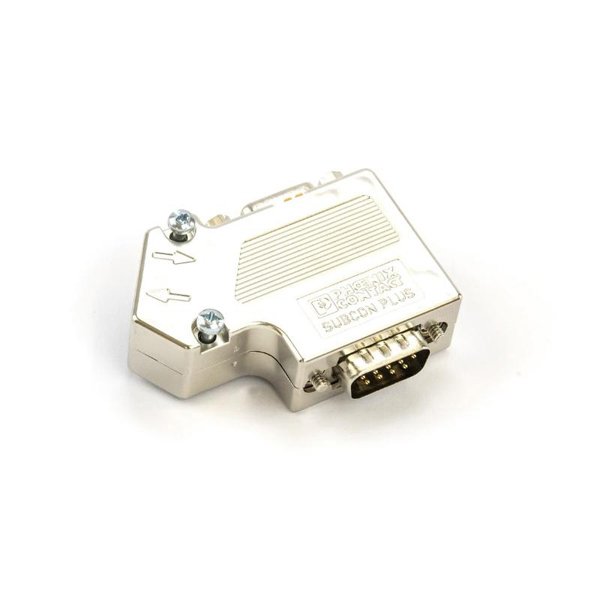

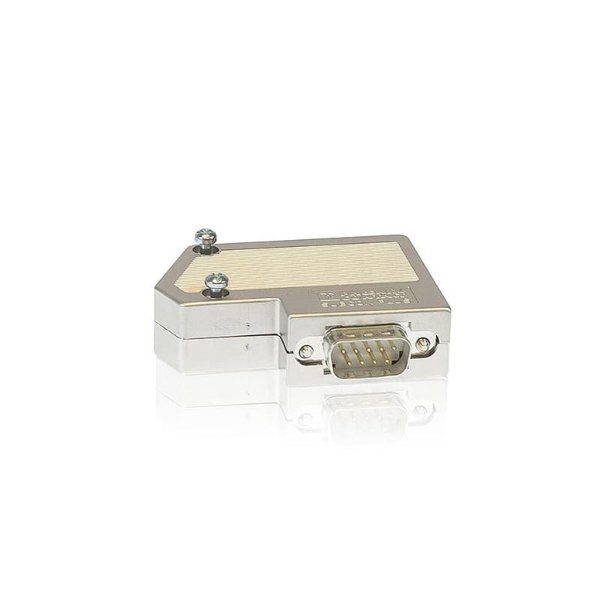

The ABB PCO 011 3BDZ000370R1 PROFIBUS DP Connector is an industrial-grade connector designed to provide secure, stable, and high-performance communication for PROFIBUS DP networks. As part of ABB’s comprehensive automation portfolio, this connector ensures reliable data transmission between field devices, controllers, and distributed I/O systems in harsh industrial environments.

Engineered for fast installation and robust performance, the PCO 011 3BDZ000370R1 supports quick-connect technology and provides secure shielding to minimize signal interference. It is essential for maintaining consistent communication in PROFIBUS DP networks used across process control, factory automation, and substation automation applications.

This connector is compatible with standard PROFIBUS DP cables and supports both stationary and mobile installations, ensuring maximum flexibility and long-term reliability in demanding industrial operations.

Key Features

• Industrial-grade PROFIBUS DP connector with reliable performance

• Quick-connect terminal technology for fast, tool-free installation

• Shielded housing for optimal electromagnetic interference (EMI) protection

• Supports data rates up to 12 Mbps for high-speed communication

• Integrated diagnostic LED for communication status indication (on applicable variants)

• Compact, space-saving design suitable for confined installation spaces

• Fully compatible with ABB controllers, I/O systems, and standard PROFIBUS devices

• Durable construction designed for industrial and substation environments

Technical Specifications

Product Applications

The ABB PCO 011 3BDZ000370R1 PROFIBUS DP Connector is specifically designed for use in automation systems requiring reliable, high-speed fieldbus communication. Typical application scenarios include:

• Process Automation Plants: Reliable connection for sensors, actuators, and remote I/O devices

• Factory Automation Systems: Secure communication for PLCs, controllers, and drives

• Substation Automation: Ensuring robust fieldbus links for ABB protection and control devices

• Power Generation Facilities: PROFIBUS network connectivity for turbine, generator, and auxiliary equipment

• Chemical and Petrochemical Plants: Harsh environment connectivity for distributed I/O systems

• Industrial Machinery: Connection of HMI panels, control modules, and diagnostic equipment

This connector plays a crucial role in establishing stable PROFIBUS DP networks, enabling seamless data exchange and contributing to increased system reliability, operational uptime, and process safety.

Product Advantages

• Fast Installation: Quick-connect terminals simplify wiring, reducing setup time

• High Data Integrity: Shielded metal housing ensures protection against electromagnetic interference

• Integrated Termination: Optional built-in termination resistor for proper bus configuration

• Compact and Durable: Space-saving design with industrial-grade materials for long service life

• Broad Compatibility: Fully compliant with PROFIBUS DP standards and ABB automation equipment

• Improved Diagnostics: Versions with LED indicators provide real-time communication status feedback

• Optimized for Harsh Environments: Operates reliably under demanding temperature and environmental conditions

Frequently Asked Questions (FAQ)

1. What type of network is this connector designed for?

It is specifically designed for PROFIBUS DP networks used in industrial automation and process control.

2. Is this connector compatible with ABB systems only?

No, while optimized for ABB products, it fully complies with PROFIBUS DP standards and works with third-party devices.

3. What is the maximum supported data transmission rate?

The connector supports data rates ranging from 9.6 kbps up to 12 Mbps.

4. Does it include a termination resistor?

Yes, applicable versions feature an integrated switchable termination resistor for proper bus termination.

5. Can this connector be used in outdoor installations?

The connector itself has IP20 protection but can be used in outdoor applications when installed inside suitable cabinets.

6. How is the connector installed?

It features quick-connect, screwless terminals for fast and secure cable termination without special tools.

7. What is the housing material of this connector?

It has a robust metal housing that provides mechanical strength and effective EMI shielding.

8. Is there an LED indicator for status monitoring?

Yes, certain variants include integrated LED indicators for visual communication status feedback.

9. What types of cables are compatible with this connector?

It supports standard PROFIBUS DP cables with shielded twisted-pair conductors.

10. What industries commonly use this connector?

Industries such as power generation, chemical processing, substation automation, factory automation, and machinery manufacturing rely on this product for stable PROFIBUS communication.
