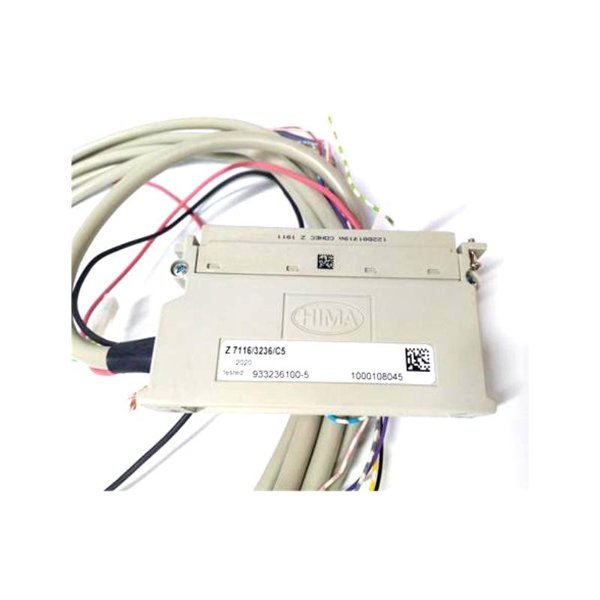

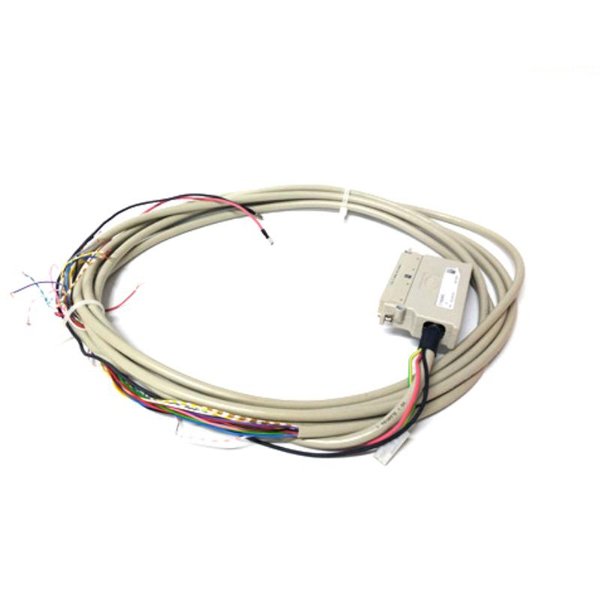

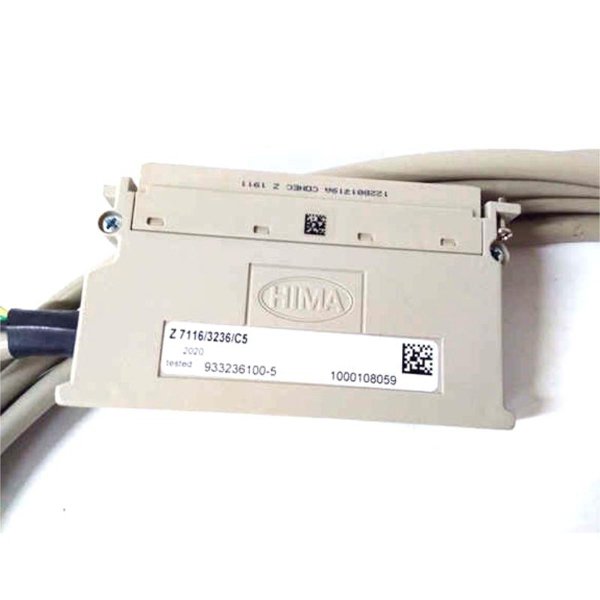

The HIMA Z7116/3236/C5 Cable Plug is an industrial-grade connector designed to facilitate secure and reliable connections in safety and automation systems. Manufactured by HIMA Paul Hildebrandt GmbH, it serves as a vital interface between control modules and field wiring in safety instrumented systems.

Built with rugged materials and engineered for precision, the Z7116/3236/C5 ensures exceptional electrical contact and mechanical robustness. Its design caters to demanding environments where system integrity and operational safety cannot be compromised. This cable plug is widely used in process industries such as oil & gas, power generation, chemical plants, and transportation infrastructure where safety automation is critical.

Product Specifications

Product Applications

The HIMA Z7116/3236/C5 Cable Plug is engineered for use in systems where reliable and fail-safe communication between control devices and field equipment is essential. Its typical applications include:

• Safety Instrumented Systems (SIS) in oil and gas refineries ensuring process safety.

• Power Plants, connecting critical control modules with sensors and actuators.

• Chemical Processing Facilities, for secure interfacing of hazardous area instrumentation.

• Pharmaceutical Manufacturing, supporting compliance with stringent safety standards.

• Railway and Transportation Systems, enabling dependable automation safety connections.

• Water Treatment Plants, ensuring reliable control and monitoring of safety-critical equipment.

Product Advantages

• High Reliability: Gold-plated contacts and robust materials ensure low contact resistance and long-term durability.

• Designed for Safety Systems: Fully compatible with HIMA’s safety PLC platforms, enabling seamless integration.

• Vibration and Shock Resistant: Meets rigorous IEC standards for vibration tolerance, suitable for harsh industrial environments.

• Compact Design: Space-efficient dimensions facilitate installation in dense control cabinets.

• Easy Installation: Snap-in locking mechanism with screw fixation ensures quick and secure mounting.

• Wide Temperature Range: Supports a broad operational temperature window for diverse environmental conditions.

• Regulatory Compliance: Certified to meet international electrical and safety standards, supporting global deployment.

• Low Maintenance: Durable design reduces the need for frequent inspections or replacements.

Frequently Asked Questions (FAQ)

1. What kind of systems is the Z7116/3236/C5 compatible with?

   It is designed for HIMA safety PLC systems such as HIMax and HIQuad.

2. How many pins does this cable plug have?

   It features 32 pins for multi-channel connections.

3. What is the maximum current rating per contact?

   Each pin supports up to 5 Amps.

4. Is the connector suitable for outdoor use?

   The plug itself is rated IP20 and should be used within an enclosure to protect from moisture and dust.

5. What materials are used for the contacts?

   The contacts are gold-plated copper alloy to ensure excellent conductivity and corrosion resistance.

6. Can the cable plug be reused after disconnection?

   Yes, it is reusable provided it is not physically damaged.

7. Does installation require special tools?

   No, standard screwdrivers and wire preparation tools are sufficient.

8. Is the connector vibration resistant?

   Yes, it complies with IEC 60068-2-6 standards for vibration resistance.

9. What are the weight of the plug?

   It weighs about 0.18 kg.

10. How can I avoid wiring errors during installation?

    Always follow the wiring diagram supplied with your HIMA system and double-check each connection before powering up.
