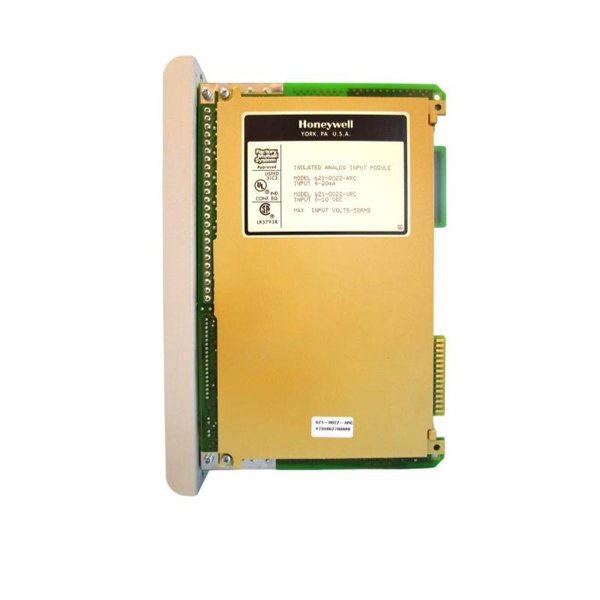

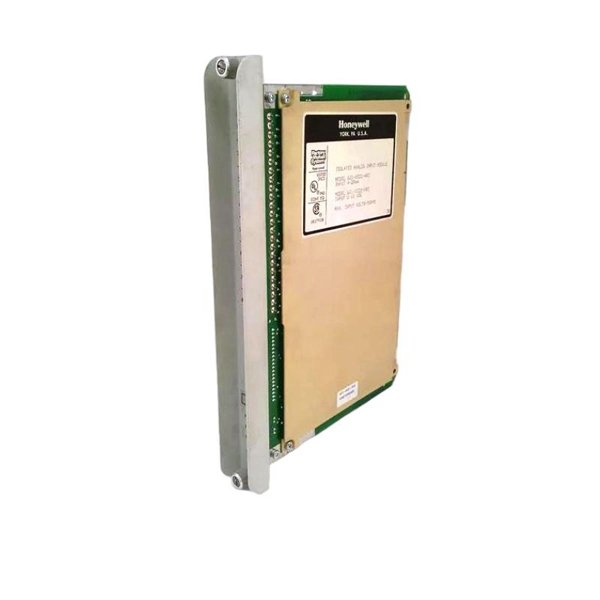

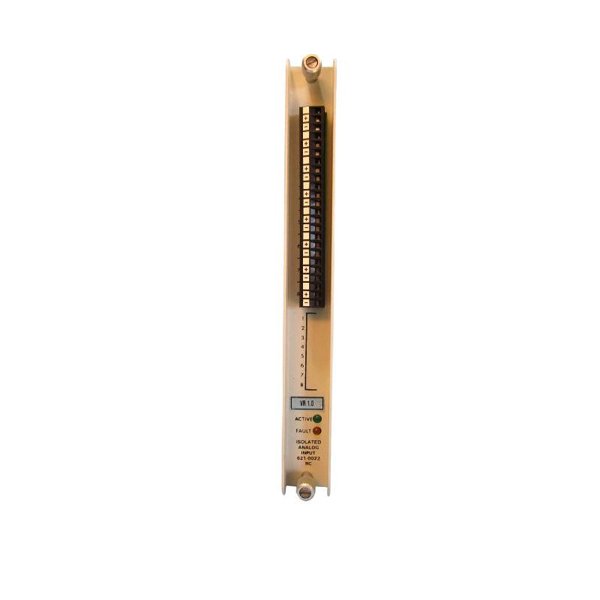

The Honeywell 621-0022-RC Isolated Analog Input Module is a versatile, high-performance device designed to handle analog input signals in process control systems. It ensures electrical isolation between the input and output, providing protection against electrical noise, faults, and surges. This ensures the integrity of the signal being processed, making the module an essential component for any control system requiring reliable data acquisition from analog sensors.

With a compact design of 33 x 274 x 171 mm and a weight of 0.66 kg, the module is easy to integrate into a variety of control systems, from manufacturing plants to chemical processing facilities. The Honeywell 621-0022-RC is designed for environments that demand accuracy, reliability, and protection from electrical interference. Whether monitoring pressure, temperature, or flow in industrial applications, this module ensures precise and uninterrupted signal transmission.

Product Features and Advantages

• Electrical Isolation: The Honeywell 621-0022-RC module provides electrical isolation between input signals and the control system. This protection prevents interference, noise, and power surges from damaging the system.

• Wide Input Compatibility: The module accepts a variety of analog input signals, including 4-20 mA, 0-10 V, and other standard input types, making it versatile for multiple sensor configurations.

• High Accuracy: The module ensures precise signal conversion with minimal distortion, delivering accurate data to the control system, vital for maintaining optimal process control.

• Compact Design: With its 33 x 274 x 171 mm size and 0.66 kg weight, the module is compact and easy to install in most industrial settings, helping save space in crowded control panels.

• Industrial Durability: Built to endure harsh industrial conditions, including temperature variations and electrical interference, the module provides continuous, reliable performance.

• Cost-Effective: By preventing signal corruption, the module minimizes the need for expensive repairs or replacements, making it a cost-effective solution for signal acquisition and protection.

• Wide Operating Range: The module operates efficiently within a wide temperature range, allowing it to be used in various industrial applications, including extreme environments.

• Versatility: Ideal for use in industries like chemical processing, manufacturing, water treatment, and energy generation, it supports a range of sensors and monitoring applications.

Specifications Table

Applications

The Honeywell 621-0022-RC Isolated Analog Input Module is designed for a variety of applications where precise analog signal processing and electrical isolation are crucial. Key applications include:

• Industrial Process Control: Used in industries where accurate monitoring of parameters such as pressure, temperature, flow, and level is required. The module ensures that analog input signals are processed and transmitted correctly.

• Chemical and Petrochemical Processing: This module is essential in managing critical sensors used to monitor chemicals, gases, and other process variables, ensuring reliable data for safety and optimization.

• Manufacturing Automation: The module is used to monitor automation processes in manufacturing plants, such as assembly lines, robotic systems, and material handling equipment, ensuring smooth operations.

• Energy and Power Generation: The Honeywell 621-0022-RC module is used in power plants and energy systems to monitor key performance indicators such as voltage, current, and power consumption, enabling better energy management and efficiency.

• Water and Wastewater Treatment: Used to monitor flow rates, pressure, and water quality parameters in treatment plants, ensuring compliance with environmental standards and improving plant efficiency.

• Building Automation: Integrated into building management systems for HVAC, lighting, and security monitoring, ensuring that building systems operate within predefined parameters.

Advantages

• Protection Against Electrical Faults: The electrical isolation feature protects both the control system and the sensors from high voltage spikes, ensuring that your equipment operates safely and reliably.

• Enhanced Signal Accuracy: The module ensures high-fidelity signal conversion, which means more reliable data, fewer errors, and better system performance.

• Compact and Space-Saving: Its small footprint of 33 x 274 x 171 mm allows for easy installation in control panels and systems with limited space.

• Durability in Harsh Conditions: Designed to operate in challenging environments, the Honeywell 621-0022-RC is resilient against temperature fluctuations, humidity, and industrial interference.

• Versatility for Multiple Applications: With support for a wide range of analog input signals, the module can be used across different industries, from chemical plants to automation systems, ensuring compatibility with various sensor types.

• Long-Term Cost Efficiency: By offering reliable signal transmission, the module reduces the frequency of system malfunctions and the need for costly repairs or replacements.

• Ease of Installation: The module is DIN rail mountable, ensuring quick and easy installation in existing systems, which can reduce downtime during setup.

Frequently Asked Questions (FAQ)

1. Q: What is the purpose of the Honeywell 621-0022-RC Isolated Analog Input Module?

   • A: The module is designed to convert analog input signals into isolated outputs, protecting sensitive equipment from electrical surges and ensuring accurate data transmission.

2. Q: What input signals does the Honeywell 621-0022-RC module support?

   • A: The module supports a range of analog input signals, including 4-20 mA and 0-10 V signals, making it compatible with various sensors.

3. Q: How does the isolation feature of the module work?

   • A: The module electrically isolates the input signals from the control system, protecting the system from electrical noise, faults, and surges.

4. Q: What is the operating temperature range of the Honeywell 621-0022-RC module?

   • A: The module operates within a temperature range of -10°C to +60°C, making it suitable for a wide range of industrial environments.

5. Q: What is the mounting style of the Honeywell 621-0022-RC module?

   • A: The module is designed to be mounted on a DIN rail, which simplifies the installation process.

6. Q: What is the weight of the Honeywell 621-0022-RC module?

   • A: The module weighs 0.66 kg, making it lightweight and easy to handle during installation.

7. Q: What protection does the Honeywell 621-0022-RC module offer?

   • A: The module includes overcurrent protection, which helps protect the system from damage due to electrical faults.

8. Q: Can the Honeywell 621-0022-RC module be used in hazardous environments?

   • A: Yes, the module is designed for industrial use and can operate in challenging environments, but specific hazardous area approvals should be checked based on the application.

9. Q: What is the power supply requirement for the Honeywell 621-0022-RC module?

   • A: The module operates with a 24 V DC power supply, a standard in industrial control systems.

10. Q: How does the Honeywell 621-0022-RC module improve system reliability?

    • A: By isolating input signals, the module ensures that electrical interference and faults do not affect the control system, leading to more reliable operation and less downtime.
