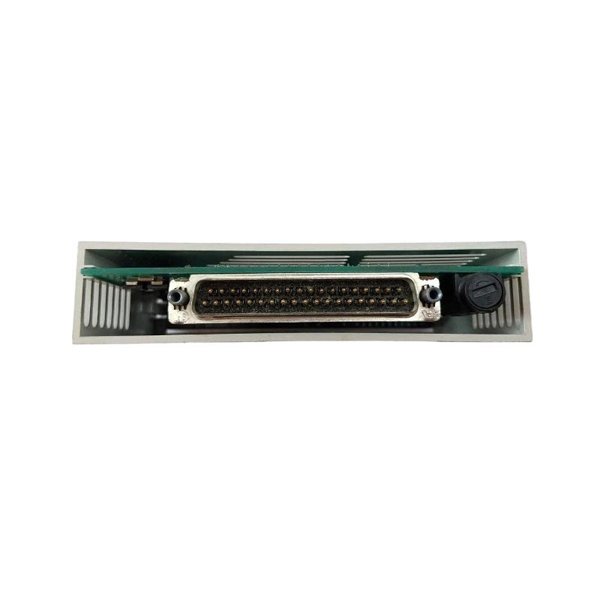

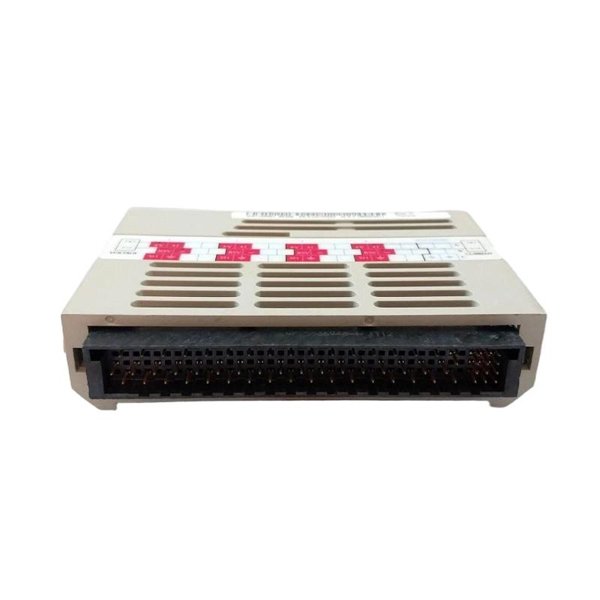

The Ovation 1C31132G02 Analog Output Module is a high-performance device designed for use in industrial automation and control systems. This module provides reliable analog output signals to control systems, enabling precise control of actuators, valves, and other field devices. By converting digital data into continuous analog signals, the module facilitates smooth and accurate control of industrial processes.

Part of the Ovation system, the 1C31132G02 is engineered to integrate seamlessly with other modules and controllers, ensuring smooth communication and operation across the entire system. It supports a variety of analog output ranges, making it suitable for a wide range of applications in industries such as power generation, process control, and manufacturing.

With a compact design and robust construction, this module is ideal for environments where space is limited and reliable performance is crucial. The 1C31132G02 offers precise output with minimal distortion, ensuring the stability and efficiency of control systems.

Technical Specifications

Product Applications

The Ovation 1C31132G02 Analog Output Module is designed to handle precise control of industrial processes and distributed field devices. Its applications include:

• Industrial Automation: The module is used in industrial control systems to provide accurate analog signals to actuators, valves, and motors, ensuring optimal performance in manufacturing and assembly processes.

• Power Generation: In power plants, the module is integral in controlling critical devices such as turbines, boilers, and generators by providing reliable analog signals to maintain safe and efficient operation.

• Process Control: The module is used in industries such as chemical, pharmaceutical, and oil and gas for controlling variables such as pressure, flow rate, and temperature, ensuring that processes are optimized and controlled.

• Water Treatment: In water treatment plants, it enables the accurate control of chemical dosing systems and water flow, improving the efficiency and quality of water treatment processes.

• HVAC Systems: The module is used in heating, ventilation, and air conditioning systems to regulate temperature and humidity levels, contributing to energy-efficient building management.

With its versatility and precision, the Ovation 1C31132G02 ensures efficient system performance across a variety of industries.

Product Advantages

• High Precision: Offering 16-bit resolution, the Ovation 1C31132G02 ensures that small changes in output are accurately captured, making it ideal for applications requiring fine control.

• Versatile Output Ranges: With the ability to provide 4-20 mA and 0-10 V outputs, the module is suitable for a wide range of industrial control applications.

• Easy Integration: As part of the Ovation system, the module integrates seamlessly with other components, ensuring reliable and efficient operation of the entire control system.

• Wide Operating Temperature: The module operates in a temperature range of -20°C to 60°C, allowing it to be used in a variety of industrial environments.

• Compact Design: Its small form factor (41 × 159 × 108 mm) makes it ideal for installations where space is limited.

• Reliability: Built with industrial-grade components, the Ovation 1C31132G02 offers long-term, reliable performance, ensuring minimal downtime and maintenance costs.

FAQ

1. How many output channels does the Ovation 1C31132G02 have?

The Ovation 1C31132G02 has 8 analog output channels, providing flexibility for controlling multiple devices simultaneously.

2. What output ranges are supported by the Ovation 1C31132G02 module?

The module supports 4-20 mA and 0-10 V output ranges, making it suitable for a wide variety of applications.

3. What is the resolution of the Ovation 1C31132G02 module?

The Ovation 1C31132G02 module offers a 16-bit resolution, ensuring highly accurate analog signal output.

4. What is the power consumption of the Ovation 1C31132G02?

The power consumption of the module is 3 W, making it efficient and suitable for integration into various systems without significant power draw.

5. What is the operating temperature range of the Ovation 1C31132G02?

The module operates within a temperature range of -20°C to 60°C, ensuring it performs reliably in a variety of industrial environments.

6. How is the Ovation 1C31132G02 mounted?

The Ovation 1C31132G02 module is designed for DIN rail mounting, which is common in industrial automation systems.

7. What is the accuracy of the Ovation 1C31132G02?

The module has an accuracy of ±0.1% of full scale, ensuring precise control in demanding applications.

8. What is the voltage supply requirement for the Ovation 1C31132G02?

The module requires a 24 VDC supply voltage to operate.

9. Can the Ovation 1C31132G02 module be used in process control applications?

Yes, the Ovation 1C31132G02 module is ideal for process control applications, where it can regulate critical parameters such as pressure, flow, and temperature.

10. What is the mounting type for the Ovation 1C31132G02 module?

The module is mounted using DIN rail, making installation easy and convenient for system integrators.
