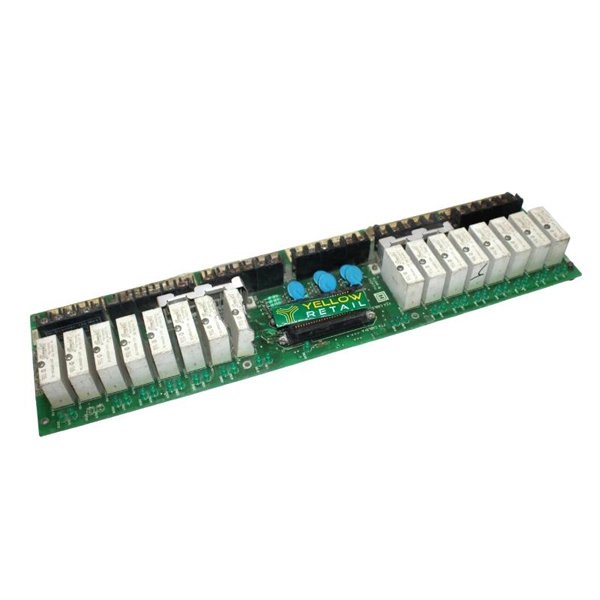

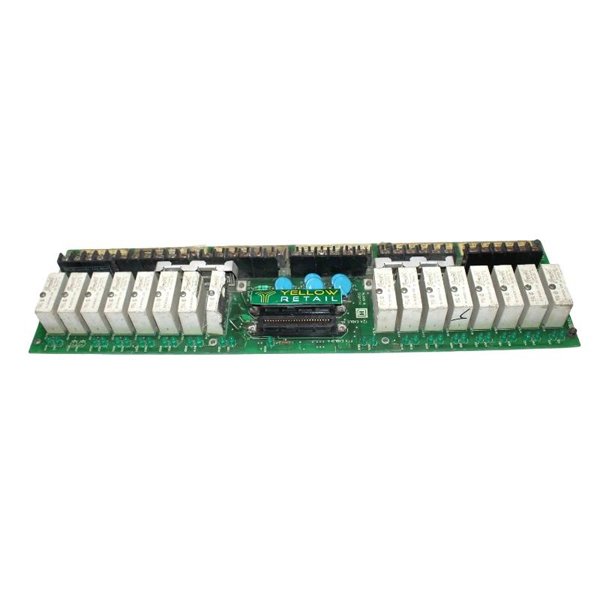

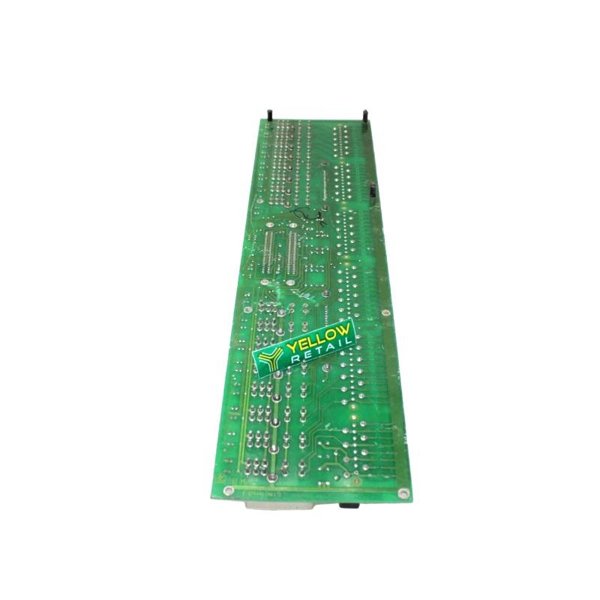

The Honeywell MU-TDID52 51304441-225 Digital Input Module is a high-performance digital input module designed for use in industrial automation systems. This module is part of Honeywell’s wide range of input/output modules, offering reliable and accurate digital signal processing in demanding environments. The MU-TDID52 51304441-225 module is engineered to handle a wide array of digital inputs, making it suitable for use in process control, machine automation, and other industrial applications that require the reliable monitoring of digital signals.

This input module supports up to 32 digital input channels, offering flexible connectivity for monitoring and controlling on/off signals from various field devices such as switches, sensors, and relays. It is designed to integrate seamlessly into Honeywell’s control systems, providing fast and accurate data transmission for real-time decision-making and automated control.

The MU-TDID52 is built with rugged durability to withstand harsh industrial environments. It operates efficiently in high-temperature conditions, making it ideal for use in diverse industrial and process automation systems. With its ease of integration and reliability, this module helps reduce system complexity and improve operational efficiency.

Technical Specifications

Applications

The Honeywell MU-TDID52 51304441-225 Digital Input Module is designed for a variety of industrial automation and control applications. Its ability to handle up to 32 digital input signals makes it highly effective in scenarios where numerous digital signals must be monitored and processed. Some of the key applications include:

• Industrial Automation Systems: This module is widely used in automated systems to monitor digital signals from devices such as relays, switches, and sensors, ensuring seamless integration with larger control systems.

• Process Control: It is ideal for real-time monitoring of on/off signals in process control applications, helping to ensure smooth operation of industrial processes.

• Machine Control Systems: Used in machine automation systems to monitor and control the operation of machines by capturing on/off digital signals from various sources.

• Control Panels: Employed in control panels for monitoring digital inputs from field devices, improving operational efficiency and accuracy in data handling.

• Alarm and Fault Monitoring: The module is used in safety systems to monitor alarms, fault indicators, and emergency stop signals, ensuring timely responses to critical system events.

• PLC Integration: Integrated with PLC systems for collecting digital inputs from a range of connected field devices, enabling real-time decision-making in automation processes.

Advantages

• High Channel Density: The MU-TDID52 offers support for up to 32 digital input channels, providing a highly efficient solution for handling multiple signals in a compact module.

• Reliable Performance: Designed for reliable operation in harsh industrial environments, the module ensures consistent signal processing with minimal downtime, even under extreme conditions.

• Flexible Input Configuration: The module supports both sinking and sourcing input types, providing greater flexibility in choosing compatible devices and sensors.

• Fast Response Time: With a response time of less than 1ms, the MU-TDID52 ensures real-time data processing, making it ideal for systems requiring fast reactions and control.

• Low Power Consumption: The module consumes just 100mA at 24V DC, offering energy-efficient performance while maintaining high processing capabilities.

• Easy Installation: The MU-TDID52 is designed for easy DIN rail mounting, simplifying the installation process and reducing the complexity of system integration.

• Status Indicators: The built-in LED indicators provide real-time status updates, allowing operators to monitor the module’s performance and quickly identify issues.

• Temperature Resistance: With an operating temperature range of -20°C to +60°C, the module can perform effectively in diverse and challenging industrial environments.

• Compact Design: The module’s compact form factor (462.3 x 120.7 mm) makes it easy to install in tight spaces, ensuring a neat and organized control panel.

• Compliance with Industry Standards: The MU-TDID52 is CE, UL, and RoHS certified, ensuring it meets the required safety and environmental standards.

FAQs

1. What is the Honeywell MU-TDID52 51304441-225 Digital Input Module used for?

The MU-TDID52 is used to monitor and process digital signals from various field devices such as sensors, switches, and relays, enabling real-time control in automation and process control systems.

2. How many digital input channels does the MU-TDID52 support?

The module supports up to 32 digital input channels.

3. What is the input voltage range for the MU-TDID52?

It operates within a 24V DC ±20% voltage range.

4. Can the MU-TDID52 handle both sinking and sourcing digital inputs?

Yes, it supports both sinking and sourcing digital inputs, offering flexibility for various field devices.

5. What is the power consumption of the MU-TDID52?

The MU-TDID52 consumes 100mA at 24V DC.

6. What is the response time of the MU-TDID52 module?

The response time is less than 1ms, allowing for real-time signal processing in fast control systems.

7. How is the MU-TDID52 module installed?

The module is DIN rail mountable, making it easy to install in industrial control panels or automation systems.

8. What are the dimensions of the MU-TDID52?

The module has dimensions of 462.3 x 120.7 mm.

9. Is the MU-TDID52 suitable for use in outdoor environments?

No, the module is rated IP20, meaning it is intended for indoor use only.

10. Does the MU-TDID52 comply with international safety standards?

Yes, the module is CE, UL, and RoHS certified, ensuring it meets international safety, quality, and environmental standards.
