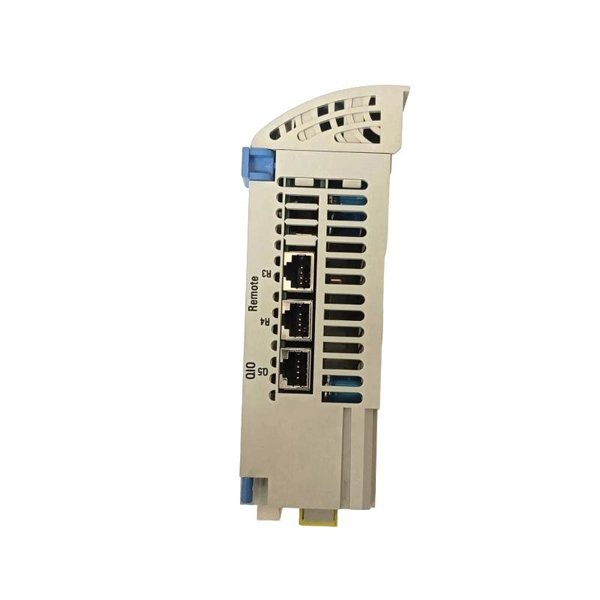

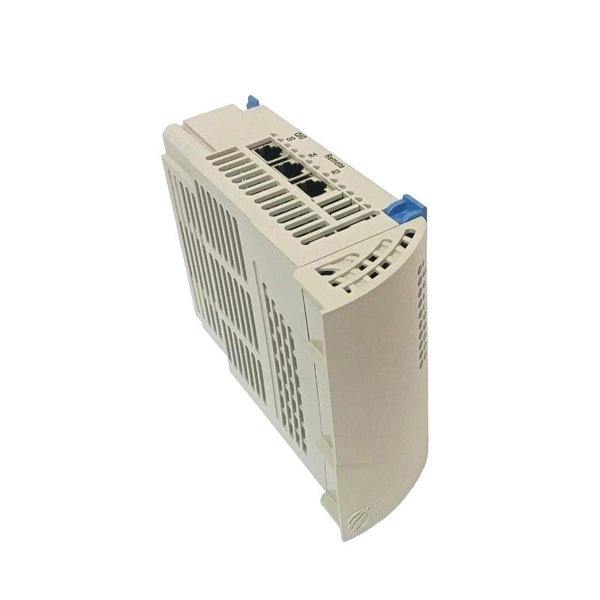

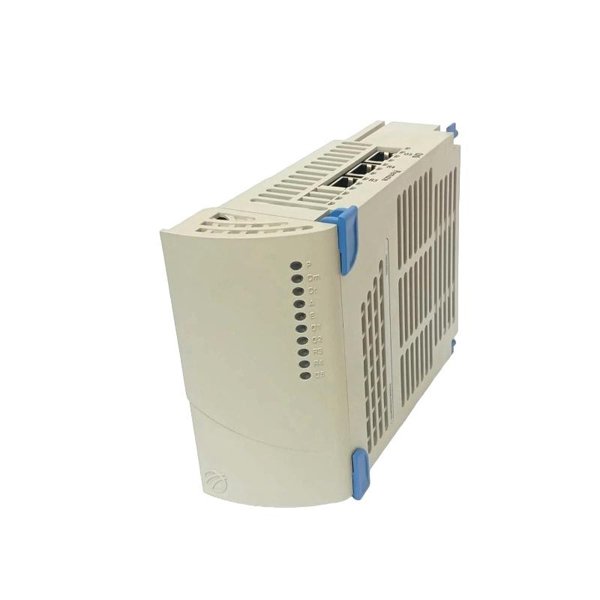

The Ovation 5X00226G01 is a versatile I/O Interface Module developed by Emerson for its industry-leading Ovation Distributed Control System (DCS). As a critical component of the I/O subsystem, this module provides the interface between field wiring and the controller’s internal processing logic, ensuring smooth signal routing, isolation, and communication reliability.

Capable of supporting a wide range of I/O signal types, the 5X00226G01 facilitates seamless integration of analog, digital, and specialty signals within power plants, water treatment facilities, and process industries. Its modular form factor and hot-swappable design allow for rapid installation and maintenance without system disruption.

Engineered for high-speed data exchange and rugged operation, this module forms the backbone of scalable control architectures, maintaining Emerson’s reputation for quality and performance in industrial automation.

Product Specifications

Product Applications

The 5X00226G01 I/O Interface Module is designed for mission-critical applications requiring stable and secure communication between field instruments and the Ovation controller:

• Power Generation (Thermal, Hydro, Nuclear)

  Interfaces sensors and actuators in turbines, boilers, and auxiliaries for real-time control and monitoring.

• Water & Wastewater Management

  Facilitates measurement and control of pump stations, flow meters, and chemical dosing units.

• Oil & Gas Processing

  Integrates with field transmitters, emergency shutdown systems, and fire/gas sensors.

• Chemical & Petrochemical Industries

  Supports data acquisition from process vessels, reactors, and rotating equipment.

• Pulp & Paper Manufacturing

  Connects temperature, pressure, and motor feedback signals in continuous and batch processes.

• Industrial Automation & Building Systems

  Offers high-reliability interfacing in HVAC, SCADA, and environmental monitoring systems.

Product Advantages

• Multi-Signal Compatibility

  Supports both analog and digital field signals, simplifying system integration.

• Efficient Signal Routing

  Acts as a signal highway between the Ovation controller and field devices, improving data throughput.

• Modular and Scalable

  Designed for flexible expansion of I/O capacity with minimal engineering effort.

• High Availability

  Supports hot-swap replacement and provides real-time diagnostics to minimize downtime.

• Robust Isolation

  Protects control system components from surges and cross-channel interference.

• Full Integration with Ovation DCS

  Designed specifically for Emerson’s Ovation system for smooth software and hardware compatibility.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 5X00226G01 module?

   It provides the physical and logical interface between Ovation control logic and external field I/O signals.

2. Does this module support hot-swapping?

   Yes, it can be inserted or removed without powering down the I/O rack.

3. What signal types can be used with this interface?

   Analog inputs/outputs, digital inputs/outputs, thermocouples, RTDs, and other specialty signals depending on connected cards.

4. How many signals can it support?

   Typically supports up to 16 I/O points per interface depending on the configuration and connected I/O modules.

5. Is the module electrically isolated?

   Yes, it features optical or galvanic isolation (depending on signal type) to protect against electrical faults.

6. What Ovation components does it directly interface with?

   It connects field wiring to I/O modules, which in turn link to the controller CPU.

7. Are LED indicators included?

   Yes, it includes LEDs for power, signal activity, and fault diagnostics.

8. Can it be used with legacy Ovation systems?

   Yes, it is backward-compatible with earlier Ovation infrastructure (check firmware revisions).

9. What mounting options are available?

   The module mounts into a standard Ovation I/O chassis; DIN-rail compatibility may vary with carriers.

10. Does it require external power?

    No, it draws power directly from the I/O rack backplane.
