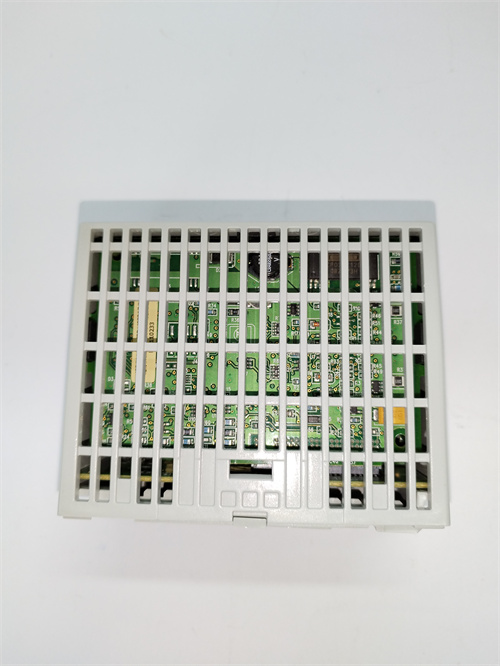

A-B 1440-DYN02-01RJ Product Details

A-B 1440-DYN02-01RJ dynamic measurement module is an electronic machine condition monitoring and protection device produced by Allen-Bradley(Rockwell Automation).It is designed to measure vibration,pressure and strain on dynamic inputs,can be connected to a variety of inputs,and provide accurate machine condition monitoring.

Main features

Multi-function input

Supports non-contact eddy current probe input,standard integrated electronic piezoelectric(IEPE)accelerometer input,speed sensor input and DC voltage measurement input.

The tachometer input function provides speed measurement and order analysis functions,which helps to fully understand the operating status of the machinery.

Wide sensor compatibility

Compatible with eddy current probes,non-powered magnetic probes,and other powered and non-powered tachometer sensors.

Applicable to a variety of different application environments.

Intelligent monitoring

As a machine safety status monitoring element,it provides the information needed to protect the machine from catastrophic failures.

Key vibration parameters can be processed using existing automation and control systems such as PLCs and displays.

Network integration

Must be installed on its network with a dedicated 1440-ACNR ControlNet adapter module.

Up to ten 1440-DY12-01RJ modules can be connected,but other XM series modules cannot be connected to the dynamic measurement module on the same network.

Rugged

Designed to be rugged and durable to withstand harsh industrial environments.

Should always be installed in a protected enclosure away from high temperature,high humidity and dusty environments.

Application areas

The A-B 1440-DYN02-01RJ dynamic measurement module is mainly used to provide common monitoring solutions for steam turbines,gas turbines,water turbines,motors,compressors,pumps,fans,blowers and most other rotating machinery.It is an intelligent dual-channel universal monitor that can measure a variety of dynamic inputs and more accurately monitor the shaft vibration,shell vibration and bearing seat vibration of rotating equipment through a built-in tachometer.

Technical specifications(partial)

Brand:A-B(Allen-Bradley)

Model:1440-DYN02-01RJ

Function:dynamic measurement,machine status monitoring and protection

Input type:non-contact eddy current probe input,IEPE accelerometer input,velocity sensor input,DC voltage measurement input

Network requirements:a dedicated 1440-ACNR ControlNet adapter module must be installed

Environmental requirements:installed in a protected enclosure,away from high temperature,high humidity and dusty environments
