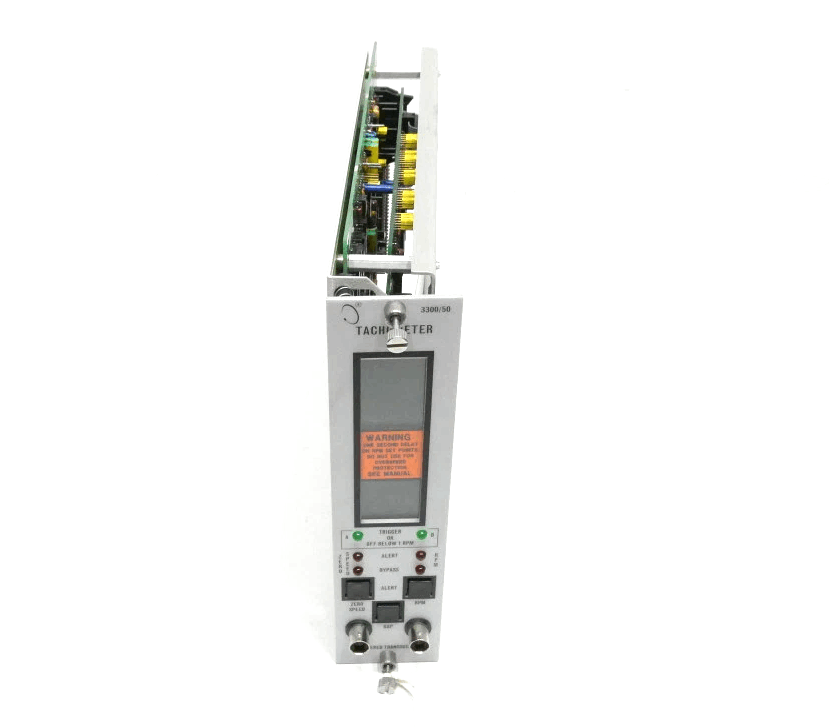

Bently Nevada 3300/50-02-01-00-00 Tachometer
Item Number: 3300/50-02-01-00-00
Brand: Bently Nevada
Lead Time: In stock
Description: Tachometer
Payment: T/T
Product Description
Bently Nevada 3300/50-02-01-00-00 Tachometer is a single-channel monitoring module for continuous monitoring of the speed, acceleration and zero speed status of rotating mechanical shafts. It supports dual sensor inputs and has built-in voting logic to reduce false alarms when a single sensor fails. The tachometer provides proportional voltage/current output and outputs Alert status signals through relay contacts for easy connection to external alarm panels.
Function & Features
- Multi-function monitoring: The 3300/50-02-01-00-00 Tachometer measures the shaft rotation speed (Rotative Speed) and acceleration (Acceleration) in real time. It provides a zero speed indication (Zero Speed Indication) output for equipment start and stop protection.
- Dual sensor input and voting logic: The 3300/50-02-01-00-00 Tachometer supports two speed sensor inputs, and automatically selects reliable signals through internal logic to avoid false alarms caused by single sensor failure.
- Output signal: Proportional voltage/current signal (output through the rear terminal block), which is easy to connect to the control system or recorder. Relay contact output (Alert state) can directly drive external alarm devices.
Specification
|
Parameter |
Details |
|
Model |
3300/50-02-01-00-00 |
|
Character Size |
84 mm x 38 mm (0.33 in x 0.15 in) |
|
RPM Range |
1 to 99,999 rpm |
|
RPM Resolution |
±1 rpm |
|
RPM Accuracy |
±1 rpm |
|
Acceleration Range |
-9,999 to 9,999 rpm/min |
|
Acceleration Resolution |
±1 rpm/min |
