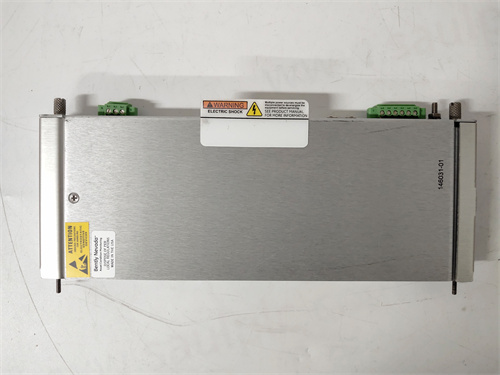

BENTLY 146031-01 Product Introduction

BENTLY 146031-01 is a 10Base-T/100Base-TX I/O module component of the 3500/22M system.It is designed to connect to the 3500 monitoring system and related software(such as System 1 status monitoring and diagnostic software,3500 system configuration software)to achieve data transmission and processing through the transient data interface(TDI).

Main functions

Data acquisition:The module has a high sampling rate and can capture and record short-term transient events to provide key data for subsequent analysis.At the same time,it has a data storage function that can record transient data and transmit it to the monitoring system or data analysis tool for processing.

Multi-channel input:Equipped with multiple input channels,it can simultaneously collect transient data from different locations or devices,improving the efficiency and accuracy of data acquisition.

Communication interface:supports multiple communication interfaces to communicate data with other monitoring systems or control devices,realize real-time monitoring and remote data access.

Mechanical condition monitoring:In addition to vibration monitoring,it can also monitor other status parameters of mechanical equipment,such as bearing temperature,oil pressure and speed.

Alarm and alarm:When the equipment status is abnormal,it can issue an alarm to remind the operator to take timely measures.

Application field

BENTLY 146031-01 I/O module is widely used in various industrial fields that require high-performance and high-reliability monitoring systems,such as

Power plant:used to monitor the vibration of key equipment to ensure that generators,turbines,etc.operate well.

Oil and gas:used to monitor the vibration of oil well pumps,compressors and other key equipment to prevent equipment failure.

Manufacturing:used to monitor various rotating equipment to ensure normal operation and reduce the risk of sudden failure.

Transportation:In transportation tools such as ships,trains and airplanes,vibration monitoring of key components can improve the reliability of the transportation system.

Technical Specifications

Operating temperature:-30 degrees Celsius to+65 degrees Celsius

Storage temperature:-40 degrees Celsius to+85 degrees Celsius

Humidity:up to 95%(non-condensing)

Product Features

Modular design:easy to install and use,which can improve efficiency and reduce maintenance costs.

Industrial-grade reliability:designed for industrial applications,with industrial-grade reliability and stability to ensure stable operation in various industrial environments.

High sampling rate:able to capture and record short transient events for subsequent analysis.

Multiple input channels:can simultaneously collect transient data from different locations or devices
