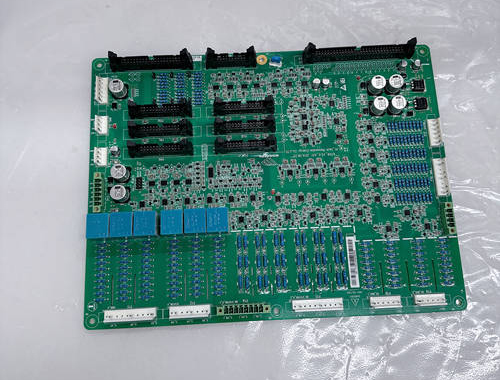

WINGREEN 03ZSTI4-00-501 Digital Control Board Product Overview

WINGREEN 03ZSTI4-00-501 digital control board is a core control module used in industrial automation and process control systems, mainly for the acquisition and output of digital signals (switch values). It is usually used as an extension module for distributed control systems (DCS), programmable logic controllers (PLC), or dedicated control platforms, responsible for managing digital input and output, and achieving high-speed and stable interaction between field devices and the main controller.

Technical parameters (typical features)

Module type: Digital I/O Control Board

Function: Digital input acquisition, digital output drive, logic control

Input/output points: Typically 16 points, 32 points, or 64 points, depending on the model configuration

Input signal type: switch signal (common 24V DC), supports high and low level detection

Output signal type: relay output/transistor output, driving field execution components

Interface method: Standard industrial terminal block or backplane bus interface

Working environment: Industrial grade, anti-interference, wide temperature range, suitable for continuous operation

Application scenarios

Semiconductor/Display Panel Equipment Control

Manage digital signals such as valve switches, pump start stop, and process chamber door control.

Automatic production line

Control on-site equipment such as conveying systems, packaging machinery, assembly robots, etc.

Power and Energy Systems

Collect switch status, drive circuit breakers, relays, and protection devices.

process control system

Collaborate with subsystems such as gas panels, vacuum systems, and heaters to execute digital logic control.
