Manufacturer:Woodward
Product Number:8406-003
Product Type:Operator Interface
Origin:USA
Dimensions:120 × 100 × 60 mm
Weight:1.13 kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

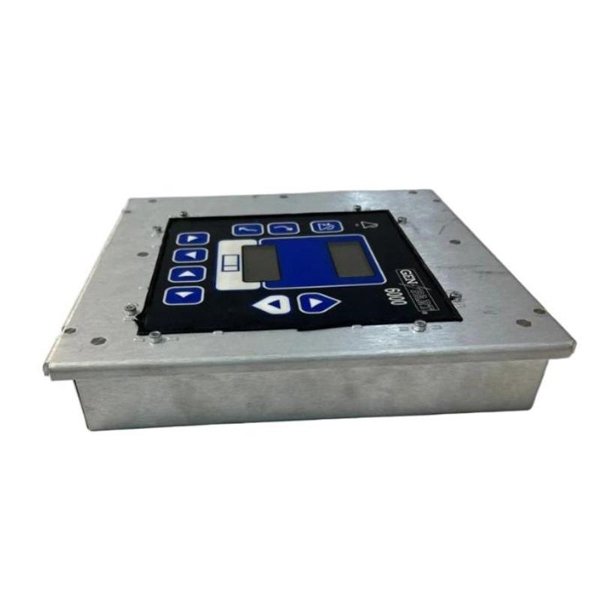

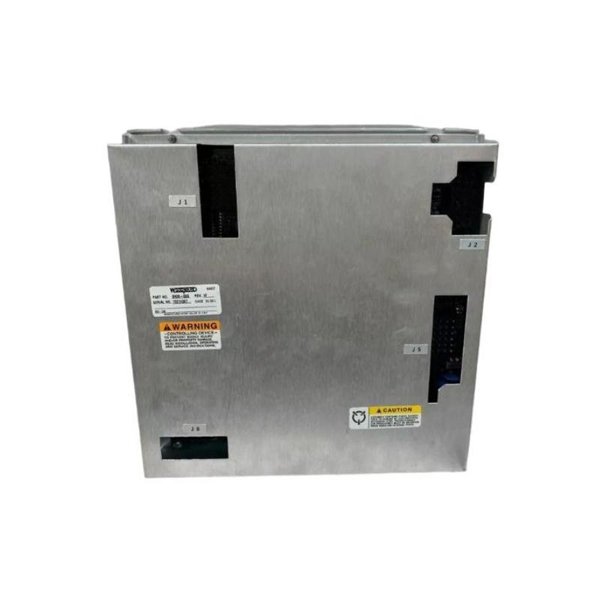

The Woodward 8406-003 Operator Interface is a high-performance human-machine interface (HMI) specifically engineered for use with Woodward’s control systems. Designed to facilitate seamless interaction between operators and automation equipment, this unit provides real-time visualization, data access, and system diagnostics in complex industrial environments.
Built for rugged applications, the 8406-003 offers an intuitive interface, customizable screen layouts, and reliable communication protocols to help operators monitor, control, and optimize machinery operation efficiently. Its industrial-grade construction ensures durability in harsh operating conditions, including temperature fluctuations, vibrations, and electrical noise.
Whether deployed in power generation, marine, oil & gas, or manufacturing sectors, the Woodward 8406-003 stands as a trusted interface solution to enhance control system responsiveness and minimize downtime.
| Parameter | Details |
|---|---|
| Model Number | 8406-003 |
| Type | Operator Interface (HMI) |
| Display Size | 6.5″ TFT LCD |
| Display Resolution | 640 x 480 pixels (VGA) |
| Touchscreen | Resistive touchscreen |
| Processor | ARM-based processor |
| Memory | 128 MB Flash / 64 MB RAM |
| Communication Ports | 2 x RS-232, 1 x RS-485, 2 x USB, 1 x Ethernet |
| Power Supply | 24 VDC |
| Mounting Style | Panel mount |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions (W x H x D) | 120 × 100 × 60 mm |
| Weight | 1.13 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
The Woodward 8406-003 is suitable for a wide array of industrial applications, including:
Power Generation Systems: For monitoring and controlling turbines, generators, and auxiliary equipment.
Marine Automation: Used in ship engine monitoring and control consoles.
Oil & Gas Platforms: For interface with compressor and pump control systems.
Manufacturing & Automation: Seamlessly integrated with PLCs and SCADA systems.
Utility & Energy Sectors: Supervisory interface for grid and substation control.
Transportation Systems: Embedded into control cabinets in rail and industrial vehicle systems.
Robust Design: Industrial-grade build ensures longevity in demanding environments.
Intuitive Operation: User-friendly interface with clear visuals and responsive touch.
Flexible Connectivity: Multiple communication interfaces support system integration.
Fast Data Access: Efficient data retrieval and diagnostics in real time.
Compact & Efficient: Space-saving form factor with high performance.
Seamless Woodward Integration: Fully compatible with Woodward control systems, reducing configuration time.
What is the display size of the 8406-003 Operator Interface?
It has a 6.5-inch TFT LCD with VGA resolution.
Is the screen touch-enabled?
Yes, it features a resistive touchscreen for operator input.
Can this interface connect via Ethernet?
Yes, it includes an Ethernet port for network communication.
What power supply is required for the 8406-003?
It operates on a 24 VDC power supply.
Is the front panel waterproof or dustproof?
The front panel has an IP65 rating, offering protection against dust and water spray.
Which Woodward systems are compatible with the 8406-003?
It is compatible with most Woodward control products such as easYgen™, Micronet™, and other embedded controllers.
Can the interface be panel-mounted?
Yes, it is designed specifically for panel mounting.
Is the software interface customizable?
Yes, screen layouts and functions can be customized using Woodward tools.
Is it possible to update firmware on the device?
Yes, firmware updates can be performed via USB or Ethernet.
What is the weight of the device?
It weighs 1.13 kg.
