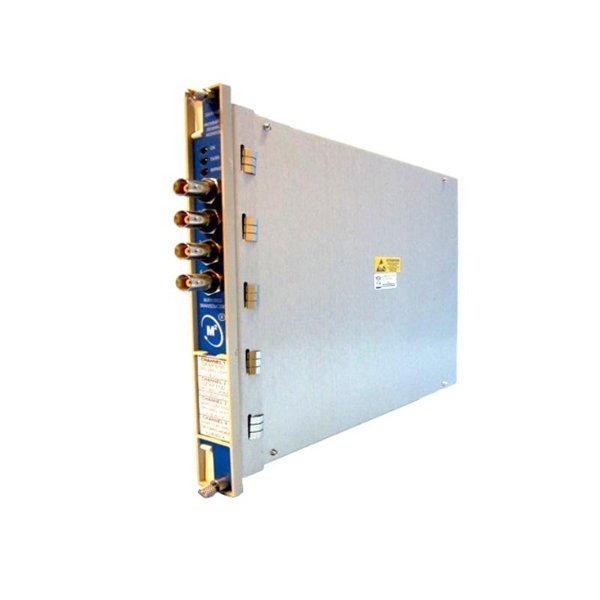

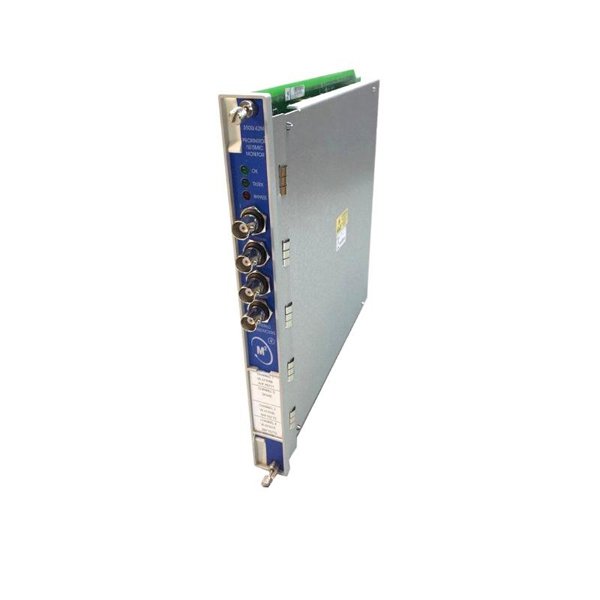

The Bently Nevada 3500/42 140471-01 + 176449-02 Proximitor Seismic Monitor is a robust and highly accurate seismic detection device designed for monitoring vibration and seismic activity in industrial machinery. As part of the Bently Nevada 3500 series, this system plays a critical role in machinery protection by detecting and monitoring potential seismic events or abnormal vibrations, which could otherwise lead to machinery damage or failure.

Engineered for use in harsh industrial environments, the 3500/42 Proximitor Seismic Monitor ensures high reliability and precision, even in extreme conditions such as high temperatures, humidity, and rugged industrial settings. It helps identify early warning signs of machine failure, allowing for timely maintenance and reducing the risk of catastrophic damage and downtime.

The device is designed to integrate seamlessly with other Bently Nevada products, providing a comprehensive monitoring system that improves asset reliability and optimizes operational efficiency. Whether deployed in power plants, oil & gas facilities, or manufacturing environments, the 3500/42 serves as a critical tool in enhancing the operational longevity of machinery.

Product Specifications

Product Applications

The 3500/42 Proximitor Seismic Monitor is widely used across multiple industries where machinery vibration and seismic activity need to be continuously monitored. Some of the common applications include:

1. Power Plants – Monitoring turbine vibrations and ensuring that generators, pumps, and other critical equipment operate smoothly.

2. Oil & Gas – Detecting seismic disturbances that may affect offshore rigs or onshore equipment, ensuring operational continuity.

3. Mining – Providing real-time monitoring of mining machinery to detect any seismic events that could compromise stability.

4. Manufacturing – Monitoring large-scale industrial machines, such as presses and rollers, to prevent premature wear or failure.

5. HVAC Systems – Ensuring proper functioning of HVAC units by detecting any abnormal vibrations or movements within the system.

Product Advantages

• Precise Monitoring: The 3500/42 provides high-accuracy seismic and vibration monitoring to detect early signs of potential failures, ensuring that equipment stays operational.

• Seamless Integration: Easily integrates with other Bently Nevada monitoring systems, allowing for an all-encompassing machinery protection solution.

• Built for Harsh Environments: With its NEMA 4X-rated enclosure, the 3500/42 can be deployed in outdoor environments and harsh industrial settings, such as oil rigs, power plants, and mining operations.

• Real-Time Alerts: The system offers real-time alerts to notify operators of any abnormal seismic activity or vibration levels, enabling quick corrective actions before damage occurs.

• Long-Term Reliability: Designed to last with minimal maintenance, ensuring the equipment provides reliable performance over the long term in industrial environments.

FAQ (Frequently Asked Questions)

1. What is the purpose of the Bently Nevada 3500/42 Proximitor Seismic Monitor?

   • The 3500/42 monitors seismic activity and vibrations to detect early signs of potential equipment failure, ensuring that machinery remains in optimal working condition.

2. How is the device powered?

   • The monitor is powered by a 24 VDC supply.

3. What type of output does the 3500/42 provide?

   • The device provides a digital output through an RS-485 interface.

4. Can the 3500/42 be used outdoors?

   • Yes, the 3500/42 is designed with a NEMA 4X-rated enclosure, making it ideal for outdoor use in harsh environmental conditions.

5. What is the operating temperature range for the 3500/42?

   • The 3500/42 operates within a temperature range of -40°C to 70°C.

6. How is the device mounted?

   • The 3500/42 is designed for panel mounting, making installation straightforward.

7. Can the 3500/42 be integrated with other Bently Nevada systems?

   • Yes, it integrates seamlessly with other Bently Nevada monitoring systems to provide a comprehensive solution for machinery protection.

8. What types of sensors can be connected to the 3500/42?

   • The 3500/42 supports seismic sensors with inputs such as 4-20 mA and 0-10 VDC.

9. Which industries benefit from the 3500/42?

   • Industries such as power generation, oil & gas, mining, manufacturing, and HVAC systems benefit from its seismic and vibration monitoring capabilities.

10. What are the key benefits of using the 3500/42?

    • The key benefits include high precision, reliable real-time monitoring, seamless integration with other systems, and early fault detection.
