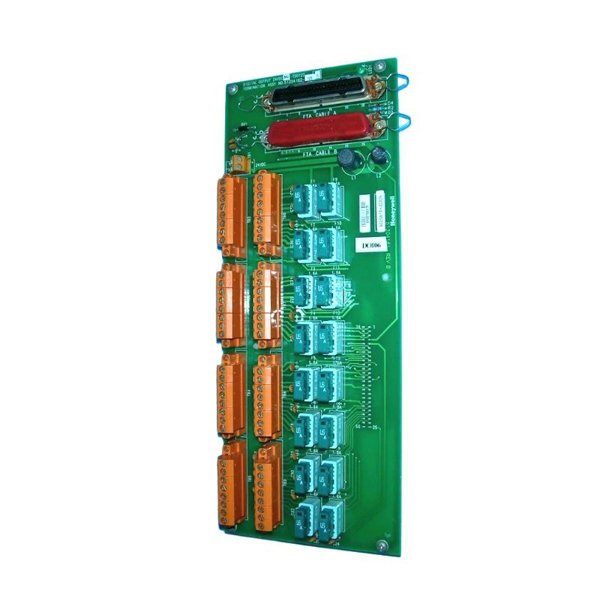

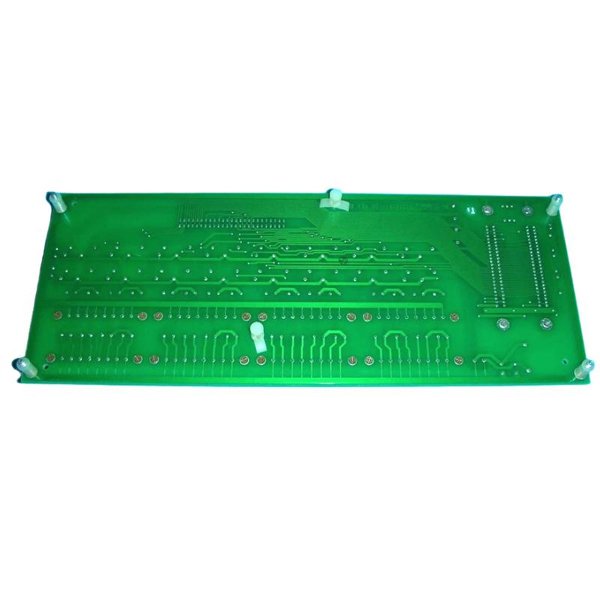

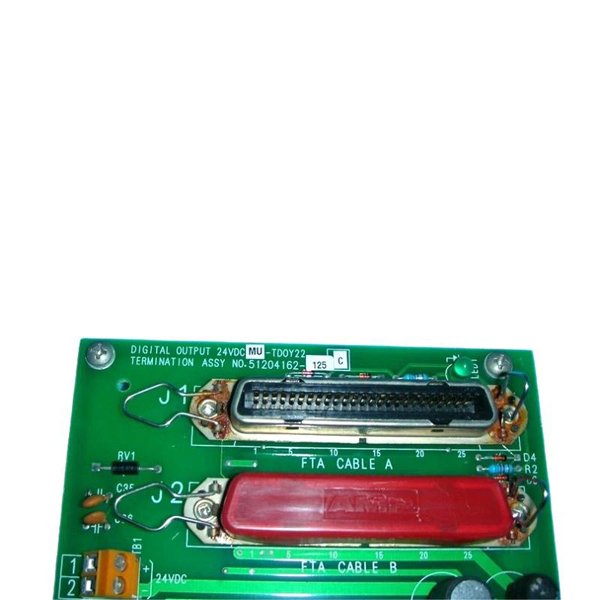

Honeywell’s MU-TDOY22 51204162-125 Digital Output Field Termination Assembly is an industrial-grade output interface module designed to provide reliable signal termination for distributed control systems (DCS). A key component of Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS), it enables seamless connectivity between control hardware and field devices. Supporting multiple digital output channels, it ensures accurate transmission of control commands to actuators, solenoid valves, relays, and other output devices in process automation environments.

The MU-TDOY22 is designed for durability and precision and optimized for high-performance industrial applications where stable signal transmission and robust isolation are critical. It is designed to handle demanding process control tasks in the oil and gas, petrochemical, power generation, and manufacturing industries. Manufactured to Honeywell’s stringent quality standards, the module ensures long-term reliability, minimal maintenance costs, and compatibility with existing system architectures.

Product Specifications

Applications

• Distributed Control Systems (DCS): Interfaces with Honeywell TDC 3000 and Experion PKS systems to provide reliable digital output termination.

• Process Automation: Controls actuators, solenoids, and relays in critical industrial processes.

• Power Generation: Ensures stable output control in turbine and generator management systems.

• Oil & Gas and Petrochemical Plants: Provides reliable output signaling in hazardous and high-demand environments.

• Manufacturing Automation: Supports industrial machinery control systems for efficient production lines.

• Water and Wastewater Treatment: Handles output control for pumps, valves, and process actuators in utility systems.

Product Advantages

• High Channel Density: Supports up to 32 digital outputs in a compact assembly, optimizing panel space.

• Robust Isolation: Provides 1500V AC isolation between field wiring and control logic to protect sensitive equipment.

• Fast Response: Ensures near real-time output signal transmission for precise control operations.

• Integrated Protection: Built-in overcurrent and short-circuit protection enhances system reliability.

• Easy Integration: Fully compatible with Honeywell TDC 3000 and Experion PKS architectures.

• Durable Industrial Design: Built to withstand harsh operating environments and extended duty cycles.

• Low Maintenance: Engineered for long-term reliability with minimal service requirements.

• Global Compliance: Certified to meet international industrial safety and quality standards.

FAQ

1. How many digital output channels does the MU-TDOY22 support?

   It supports 32 independent digital output channels for high-density field termination.

2. What is the maximum output current per channel?

   Each channel can typically supply up to 0.5A of output current, depending on the system design.

3. Is the MU-TDOY22 compatible with both TDC 3000 and Experion PKS systems?

   Yes, it is designed to seamlessly integrate with both Honeywell DCS platforms.

4. What is the isolation voltage between field wiring and control logic?

   The module provides 1500V AC isolation to ensure system safety and anti-interference capabilities.

5. Does the MU-TDOY22 offer any built-in protection features?

   Yes, it includes overcurrent, short circuit, and reverse polarity protection.

6. What is the typical response time for output signal switching?

   Response times are typically less than 1 millisecond, ensuring precise control action.

7. Can this module operate in high electrical noise environments?

   Yes, it has a noise-immune design and is suitable for industrial EMI environments.

8. Does the field output require a separate power supply?

   Yes, it uses an external 24V or 48V DC field power supply depending on the configuration.

9. Is the MU-TDOY22 hot-swappable within the system chassis?

   In most configurations, it is hot-swappable without affecting system performance.

10. Can it interface with non-Honeywell control systems?

    Yes, it can be adapted to other DCS or PLC systems as long as the wiring is correct and the signals are matched.
