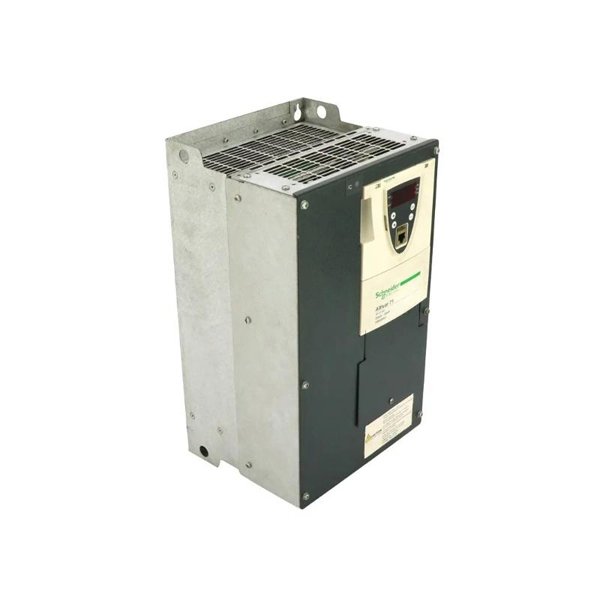

Schneider ATV71HU22Y Variable Speed Drive
Manufacturer:Schneider
Product Number:ATV71HU22Y
Product Type:Variable Speed Drive
Origin:France
Dimensions:420 x 236 x 240 mm
Weight:30 kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider ATV71HU22Y is a high-performance variable speed drive designed to control three-phase asynchronous and synchronous motors. It delivers precise motor control, high energy efficiency, and reliable operation in demanding industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ATV71HU22Y |
| Power Rating | 2.2 kW (3 HP) |
| Input Voltage | 380–480 V AC, 50/60 Hz |
| Output Current | 5.6 A |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | V/F, vector control, sensorless |
| Protection Level | IP20 |
| Dimensions (H x W x D) | 420 x 236 x 240 mm |
| Weight | 30 kg |
| Operating Temperature | -10°C to +50°C |
Applications
The ATV71HU22Y is widely used in:
-
Pumps and fans for HVAC systems
-
Conveyors and hoists
-
Mixers and centrifuges
-
Machine tools and processing equipment
Advantages
-
High torque at low speed with vector control
-
Energy savings through precise motor control
-
Compact design suitable for control panels
-
Advanced protection features for reliable operation
-
User-friendly interface and flexible communication options
FAQ
Q1: What is the maximum motor power supported by ATV71HU22Y?
A1: It supports motors up to 2.2 kW (3 HP).
Q2: Can it operate with synchronous motors?
A2: Yes, it supports both asynchronous and synchronous motors.
Q3: What is the enclosure protection rating?
A3: The standard protection level is IP20.
Q4: What is the output frequency range?
A4: It can output frequencies from 0.1 Hz to 599 Hz.
Q5: Does it support sensorless vector control?
A5: Yes, it offers sensorless vector control for high performance.
Q6: Can it be mounted in a vertical position?
A6: Yes, it should be mounted vertically for proper ventilation.
Q7: What communication options are available?
A7: It supports Modbus and optional communication cards.
Q8: What is the operating temperature range?
A8: The drive can operate from -10°C to +50°C.
Q9: Is it compatible with regenerative braking?
A9: Yes, it can be used with braking resistors for dynamic braking.
Q10: Does it have built-in protection features?
A10: Yes, it includes thermal, overload, short-circuit, and phase-loss protections.
