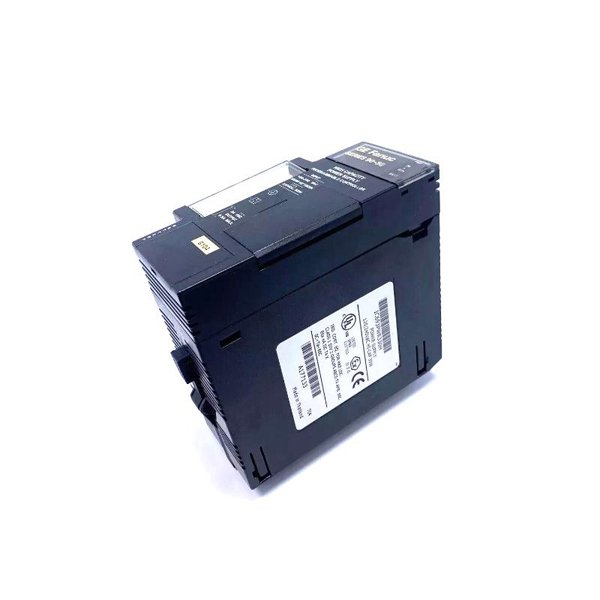

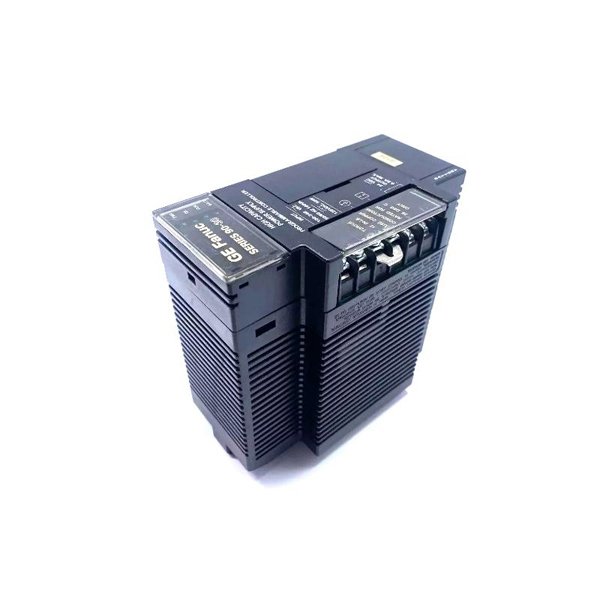

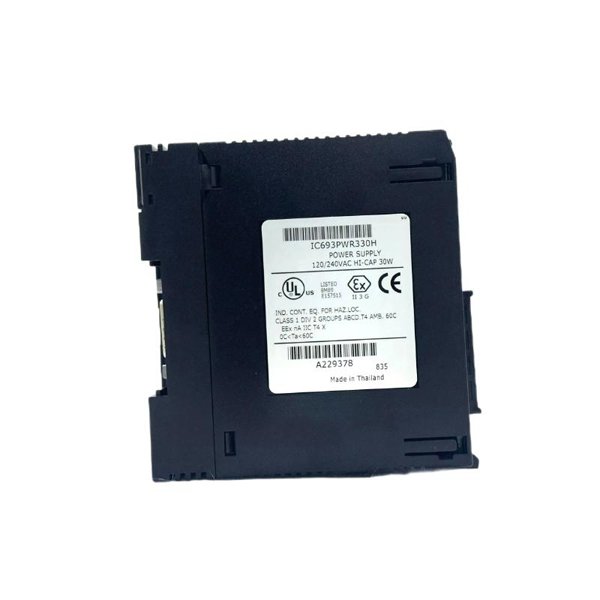

The GE IC693PWR330H Power Supply Module is a key component of the GE Series 90-30 PLC system. This module provides reliable power conversion and distribution for the PLC system, ensuring stable operation in industrial automation applications. It is designed to deliver continuous power to the PLC rack and modules, making it crucial for uninterrupted performance in industrial settings.

The IC693PWR330H features high efficiency, low ripple, and effective noise suppression, which contributes to the overall performance and longevity of the system. With a power output rating of 5V DC, this module ensures smooth and consistent power distribution for all connected components in the system, supporting the PLC’s diverse operational needs.

This module is ideal for various industrial environments where precise control and reliability are paramount, offering power stability to industrial control systems, machinery, and complex automation networks.

Product Specifications

Below is a detailed table of the product specifications:

Product Applications

The GE IC693PWR330H Power Supply Module is widely used in industrial automation and control applications. Here are some key areas where this module excels:

1. Industrial Automation: Used to power the GE Series 90-30 PLC system and other automated industrial machinery, ensuring smooth operation.

2. Machine Control: Provides stable power to control machines and robotic systems, enabling precise and efficient operation.

3. Manufacturing Systems: Powers conveyor belts, assembly lines, and other production equipment to keep manufacturing systems running continuously.

4. Energy Management: Supports control systems in power plants and industrial energy systems, where consistent and reliable power is essential.

5. Building Automation: Can be used to power control systems for HVAC, lighting, and other automated building systems.

6. Process Control: Ensures the stable operation of sensors, actuators, and controllers in process industries such as chemical, oil & gas, and pharmaceuticals.

7. Transportation Systems: Powers control systems used in automated transportation networks, including automated guided vehicles (AGVs) and conveyor systems.

Product Advantages

1. High Efficiency: The IC693PWR330H delivers a high efficiency of 85%, ensuring optimal energy consumption while reducing heat generation.

2. Reliable Power Supply: Designed to provide stable 5V DC output with minimal ripple, the module ensures smooth and reliable operation of the connected systems.

3. Wide Input Voltage Range: Capable of accepting both 120V and 240V AC input, making it versatile for various industrial setups.

4. Compact Design: The module is compact and easy to install on DIN rails, saving valuable space in control panels and cabinets.

5. Thermal Protection: The module is built with robust thermal management to protect the system from overheating.

6. Enhanced Safety: UL and CE certifications ensure that the IC693PWR330H meets high safety standards, making it suitable for use in a wide range of applications.

7. Long-Lasting Performance: The power supply module is engineered for durability, designed to provide reliable power over extended periods of operation.

8. Noise Suppression: With low ripple and noise suppression capabilities, the module helps maintain signal integrity in sensitive applications.

FAQ

1. What is the input voltage range of the GE IC693PWR330H?

   • The IC693PWR330H accepts an input voltage range of 120/240V AC.

2. What is the output voltage of the IC693PWR330H?

   • The output voltage is 5V DC.

3. How many amps of current can the IC693PWR330H supply?

   • It provides a maximum output current of 10A.

4. What is the power rating of the IC693PWR330H?

   • The power rating is 50W.

5. What are the efficiency and ripple specifications for the IC693PWR330H?

   • The efficiency is 85%, and the ripple is less than 1%.

6. What is the operating temperature range for the IC693PWR330H?

   • The operating temperature range is from 0°C to 60°C.

7. Is the IC693PWR330H compatible with GE Series 90-30 PLCs?

   • Yes, it is designed specifically for the GE Series 90-30 PLC system.

8. How is the IC693PWR330H mounted?

   • It is mounted on a DIN rail.

9. Does the IC693PWR330H come with any safety certifications?

   • Yes, it is UL Listed and CE certified.

10. What is the weight of the IC693PWR330H?

    • The module weighs 0.544 kg.
