Manufacturer:Schneider
Product Number:ATV630D30N4
Product Type:Variable Speed Drive
Origin:France
Dimensions:226 x 673 x 271 mm
Weight:28 kg
Views:49
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

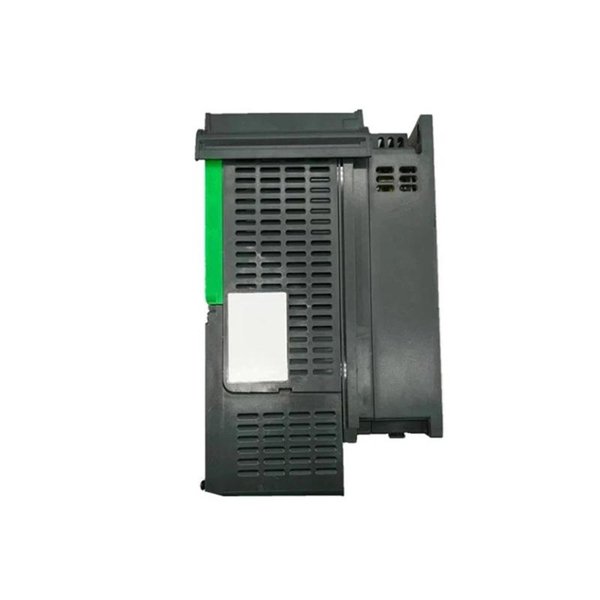

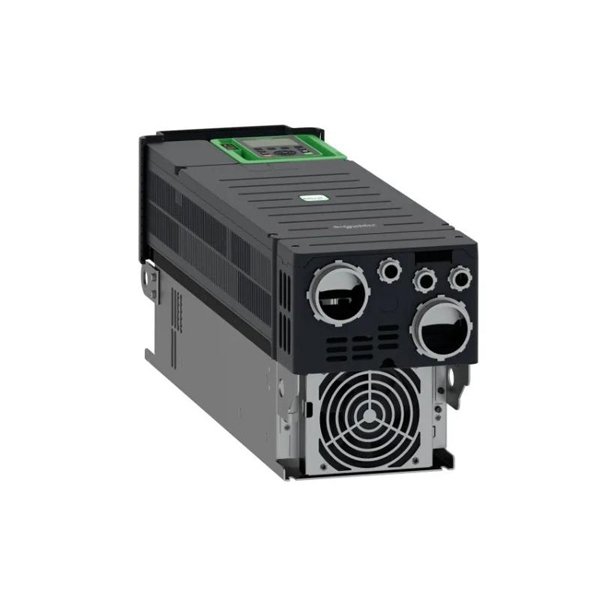

The Schneider ATV630D30N4 is a robust and energy-efficient variable speed drive designed for controlling three-phase asynchronous and synchronous motors. It is ideal for industrial and commercial applications, delivering high performance, reliability, and easy integration into automation systems.
| Parameter | Value |
|---|---|
| Model | ATV630D30N4 |
| Power Supply | 380…480 V, 50/60 Hz |
| Motor Power Range | 30 kW (40 HP) |
| Output Frequency | 0.1…500 Hz |
| Control Method | Vector control / V/F control |
| Communication Ports | Modbus, Ethernet (optional) |
| Protection Level | IP21 / UL Type 1 |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W x H x D) | 226 x 673 x 271 mm |
| Weight | 28 kg |
HVAC systems (fans, pumps, compressors)
Water and wastewater treatment plants
Material handling systems
Food and beverage processing lines
General-purpose industrial automation
High energy efficiency with advanced motor control
Built-in EMC filters and safety features
Flexible communication options for seamless integration
Intuitive HMI for easy configuration and monitoring
Robust design suitable for harsh environments
Q1: What is the rated motor power supported?
A1: The ATV630D30N4 supports motors up to 30 kW (40 HP).
Q2: Can this drive operate in high humidity environments?
A2: Yes, it is designed with conformal coating and protection up to IP21, suitable for most indoor industrial environments.
Q3: Does it support synchronous motors?
A3: Yes, it can control both asynchronous and synchronous motors.
Q4: What is the maximum output frequency?
A4: The maximum output frequency is 500 Hz.
Q5: Is there a built-in EMC filter?
A5: Yes, it comes with integrated EMC filters to reduce harmonics.
Q6: Can it be connected to a building management system?
A6: Yes, via Modbus or optional Ethernet modules.
Q7: What kind of motor control methods are available?
A7: It supports both vector control and V/F control.
Q8: What is the cooling method of the drive?
A8: Forced air cooling with internal fans.
Q9: Can the drive be mounted in a vertical position?
A9: Yes, vertical mounting is recommended for proper ventilation.
Q10: Is it compliant with international standards?
A10: Yes, it complies with IEC, UL, and CE standards.
