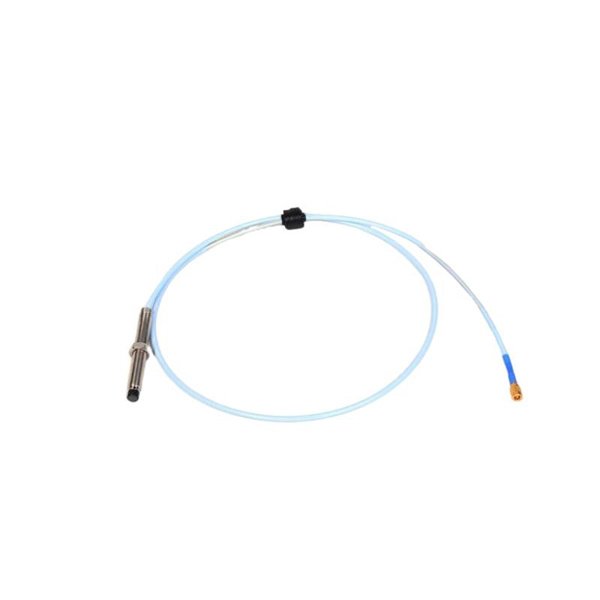

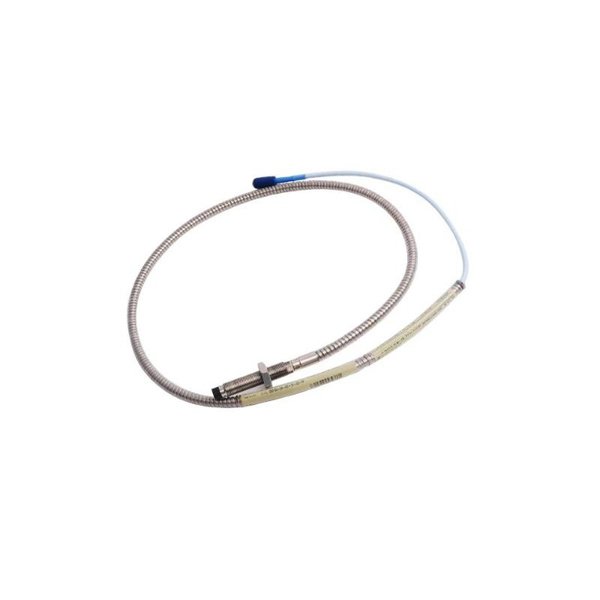

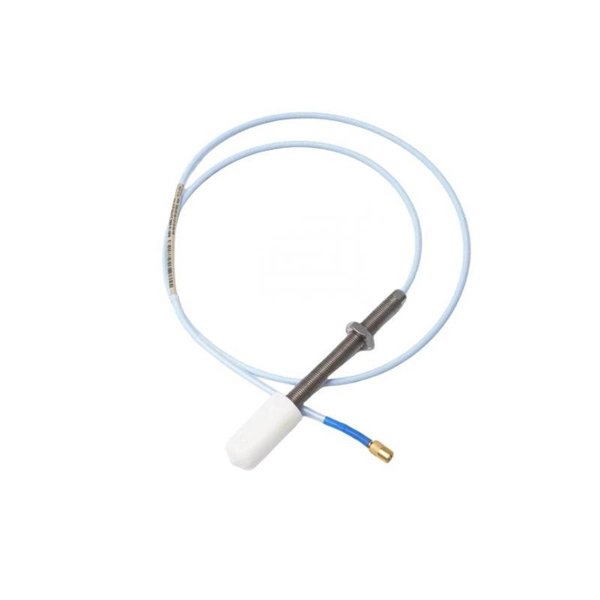

The Bently Nevada 330103-30-10-40-00-61-02-00 3300 XL 8 mm Proximity Probe is a high-precision displacement sensor designed for industrial applications where monitoring the position and displacement of rotating machinery components is critical. Part of the 3300 XL series, this probe utilizes advanced eddy current technology to measure machinery displacement with high accuracy. It is ideally suited for use in demanding environments such as power plants, refineries, and manufacturing facilities where reliability and durability are key.

With a total length of 4.0 meters and a weight of 1.292 kg, the 3300 XL 8 mm Proximity Probe is capable of measuring shaft displacement and vibration levels, ensuring that machinery operates at peak efficiency and helping to prevent costly breakdowns. Its rugged design, combined with its precise measuring capabilities, makes it indispensable for the maintenance and monitoring of critical rotating equipment.

This probe supports a 4-20 mA analog output, allowing for seamless integration into condition monitoring systems. It provides continuous real-time data, enabling operators to track machine health and take preemptive action before failures occur. The 3300 XL series is known for its robustness and reliability, making it one of the most trusted solutions for industrial machine condition monitoring.

Product Parameters

Product Applications

The 3300 XL 8 mm Proximity Probe is ideal for use in a wide variety of industrial applications, particularly in environments that require precise and continuous monitoring of machinery displacement and vibration. Some of the key applications include:

• Condition Monitoring for Rotating Machinery: Provides accurate data for monitoring machinery components such as shafts, bearings, and gears, enabling early detection of wear, misalignment, or vibration issues.

• Turbine and Generator Monitoring: Essential for monitoring turbine and generator shafts, ensuring they operate efficiently and preventing failures due to misalignment or excessive vibration.

• Pump and Motor Performance Monitoring: Monitors the alignment and displacement of pumps and motors, ensuring they operate within safe parameters and reducing the likelihood of unexpected breakdowns.

• Power Generation: Widely used in power plants to monitor the health of critical machinery such as turbines, compressors, and pumps, helping prevent downtime and ensuring smooth operations.

• Oil & Gas Industry: In the oil and gas industry, the probe is used to monitor machinery in offshore rigs, refineries, and processing plants, where reliability is paramount to maintaining operations.

• Manufacturing and Process Industries: Monitors the performance of machines in industrial plants, helping to optimize machine utilization, reduce downtime, and extend machinery lifespan.

Product Advantages

• High Precision and Sensitivity: With an accuracy of ±0.001 mm, the 3300 XL 8 mm Proximity Probe delivers exceptional precision, making it suitable for monitoring even the smallest displacements in machinery.

• Long Measurement Range: With a total length of 4.0 meters, this probe is ideal for larger systems, offering flexibility and convenience for monitoring over long distances.

• Durable Construction: The IP67 rating ensures the probe is dustproof and water-resistant, making it suitable for use in harsh industrial environments where exposure to moisture and dust is common.

• Wide Temperature Range: The probe operates effectively within a temperature range of -40°C to +85°C, allowing it to be used in a variety of industrial environments, from extremely cold to hot conditions.

• Non-Contact Measurement: Using eddy current technology, the probe provides accurate measurements without physical contact with the machinery, reducing the potential for damage to both the probe and the machine components.

• Easy Integration with Monitoring Systems: The 4-20 mA analog output makes the probe easy to integrate into existing machine condition monitoring systems, providing continuous data for predictive maintenance.

• Low Maintenance: Designed for long-term reliability, the 3300 XL 8 mm Proximity Probe requires minimal maintenance, reducing the operational costs of monitoring systems.

• Versatile Mounting Options: The probe can be mounted using either DIN rail or direct mount, providing flexibility for different installation requirements.

• Compact and Lightweight: Despite its long length, the probe is lightweight (1.292 kg) and compact, making it easy to install in space-constrained environments.

• High-Frequency Range: The probe supports a frequency range of 100 Hz to 5 kHz, allowing it to be used for both low and high-speed machinery applications.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A1: The primary function of the 3300 XL 8 mm Proximity Probe is to measure the displacement of rotating machinery components, providing accurate and real-time data for machine condition monitoring.

Q2: What is the total length of the 3300 XL 8 mm Proximity Probe?

A2: The total length of the probe is 4.0 meters.

Q3: What is the weight of the probe?

A3: The weight of the probe is 1.292 kg.

Q4: What is the accuracy of the probe?

A4: The accuracy of the 3300 XL 8 mm Proximity Probe is ±0.001 mm, ensuring highly precise measurements.

Q5: Can the probe be used in extreme industrial environments?

A5: Yes, the probe is built to withstand harsh environments with an IP67 protection rating, making it resistant to dust and water.

Q6: What is the operating temperature range of the probe?

A6: The probe operates within a temperature range of -40°C to +85°C, making it suitable for use in diverse industrial settings.

Q7: What type of output does the probe provide?

A7: The probe provides a 4-20 mA analog output, which is compatible with most machine monitoring systems.

Q8: How is the Bently Nevada 3300 XL 8 mm Proximity Probe mounted?

A8: The probe can be mounted using either DIN rail or direct mount, depending on the installation requirements.

Q9: Is the Bently Nevada 3300 XL 8 mm Proximity Probe suitable for high-speed machinery?

A9: Yes, the probe supports a frequency range of 100 Hz to 5 kHz, making it suitable for both low and high-speed machinery.

Q10: What industries can benefit from using the Bently Nevada 3300 XL 8 mm Proximity Probe?

A10: The probe is ideal for use in industries such as power generation, oil and gas, manufacturing, and process industries, where precision monitoring of machinery displacement is critical.
