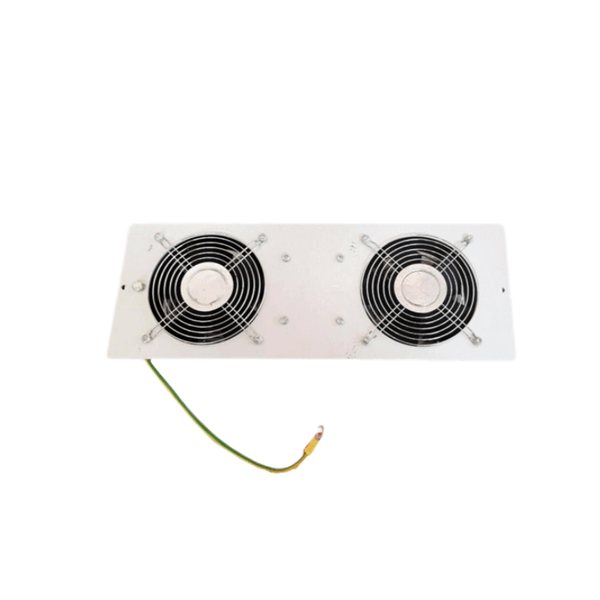

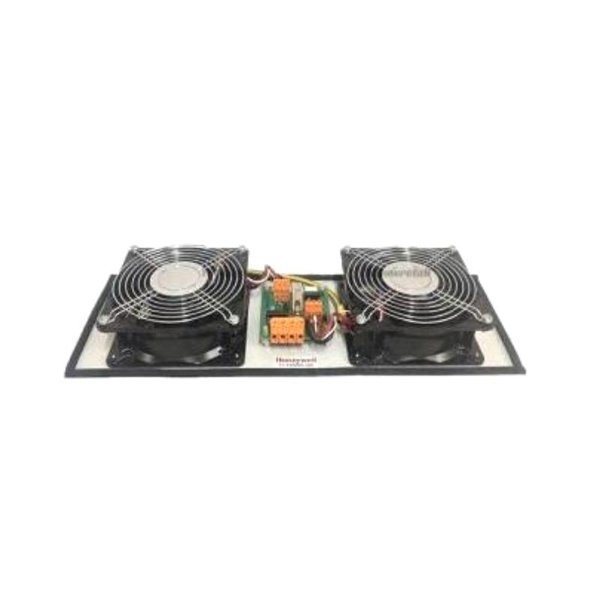

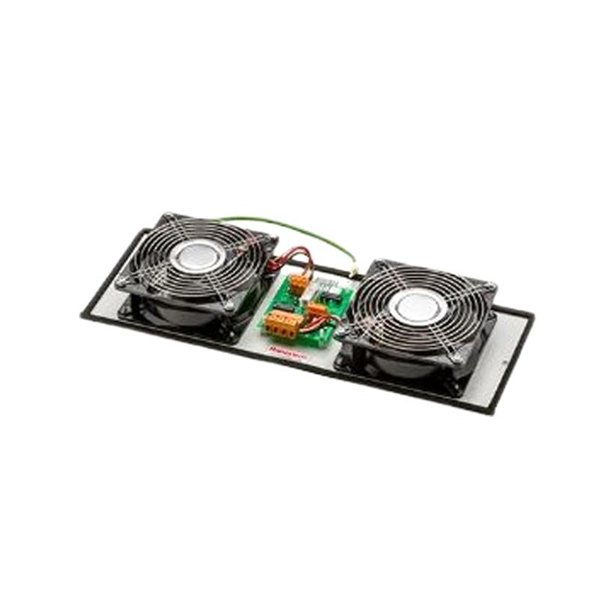

The Honeywell FC-FANWR-24R Fan Assembly Kit is an industrial-grade thermal management solution specifically designed for Honeywell’s Series C process control systems and other compatible enclosures. Engineered to ensure reliable and continuous airflow, this fan kit is a critical component in maintaining ideal internal temperatures within control cabinets housing CPUs, I/O modules, power supplies, and other heat-sensitive electronics.

With the increasing demand for compact, high-density industrial automation systems, effective thermal regulation has become essential. The FC-FANWR-24R provides a dependable solution with its 24V DC operation, integrated reliability feedback wire (denoted by the “-R” suffix), and a rugged construction that withstands industrial environments.

Technical Specifications

Applications

• Industrial Automation: Provides cooling for control panels and enclosures in manufacturing environments.​

• HVAC Systems: Ensures efficient airflow in heating, ventilation, and air conditioning setups.​

• Process Control Systems: Maintains optimal temperatures for sensitive equipment in process industries.​

• Power Generation: Assists in cooling components within power plants and substations.​

• Data Centers: Enhances airflow to prevent overheating of servers and networking equipment.​

Product Advantages

• Efficient Cooling: High airflow design ensures effective heat dissipation.

• Compact Design: Small footprint allows for easy integration into existing systems.​

• Durable Construction: Built to withstand demanding industrial environments.​

• Easy Installation: DIN rail mounting simplifies the installation process.​

• Reliable Performance: Designed for continuous operation with minimal maintenance.​

Frequently Asked Questions (FAQs)

1. What is the primary purpose of the FC-FANWR-24R fan assembly?

This unit is designed to maintain optimal operating temperatures within Honeywell industrial control enclosures by providing consistent airflow, reducing the risk of overheating sensitive components.

2. Is the FC-FANWR-24R fan kit compatible with all Honeywell cabinets?

It is compatible with most standard Honeywell Series C and related cabinets. However, always cross-check your enclosure’s specifications before installation to ensure compatibility.

3. What voltage does the FC-FANWR-24R operate on?

It operates on 24V DC, making it suitable for low-voltage industrial control environments where stable, efficient cooling is needed.

4. Does the unit support remote monitoring or diagnostics?

Yes, the “-R” suffix indicates that it includes a feedback wire, allowing integration with a controller or monitoring system to confirm fan operation.

5. Can this fan assembly be installed horizontally or vertically?

Yes, it supports flexible mounting in both orientations, as long as airflow direction is maintained and unobstructed.

6. What is the expected lifespan of the fan under normal conditions?

Under standard ambient conditions (below 50°C, moderate dust), the fan typically exceeds 50,000 hours of continuous operation.

7. Is the fan thermally controlled or always running?

The FC-FANWR-24R is designed to run continuously, but it can be wired to an external thermal switch or PLC for conditional operation, depending on system design.

8. What protections are built into the fan assembly?

The fan includes reverse polarity protection, over-voltage safeguarding, and in some variants, soft-start circuitry to minimize power surges on startup.

9. How do I clean or maintain the fan after installation?

It’s recommended to shut off power, remove the filter (if equipped), and clean the blades and housing using low-pressure compressed air every 6–12 months, depending on the environment.

10. Can the FC-FANWR-24R be used in high-vibration environments like compressors or turbines?

Yes, it is built with industrial-grade bearings and reinforced mounting design, making it suitable for environments with moderate vibration. However, if vibration exceeds 2 G RMS, additional damping or isolation may be required.
