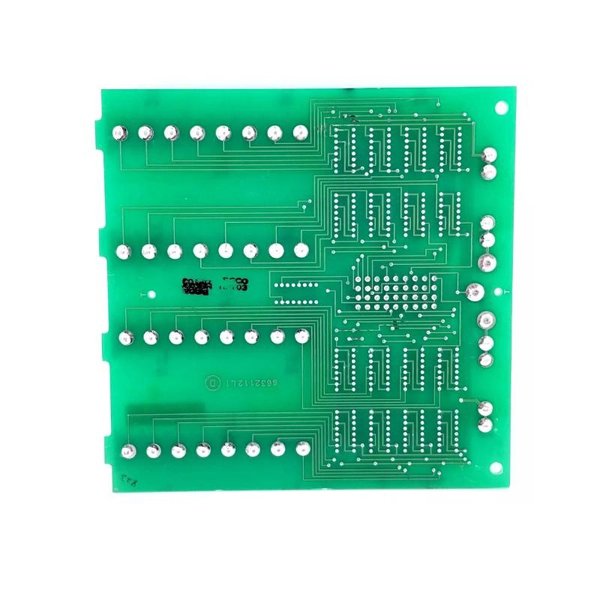

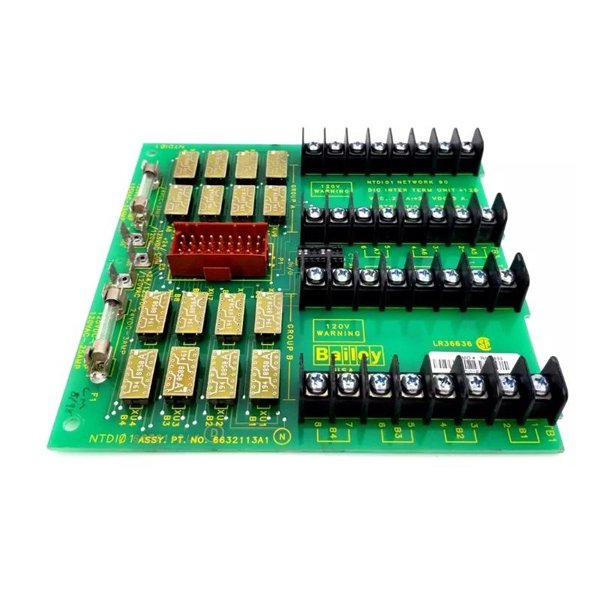

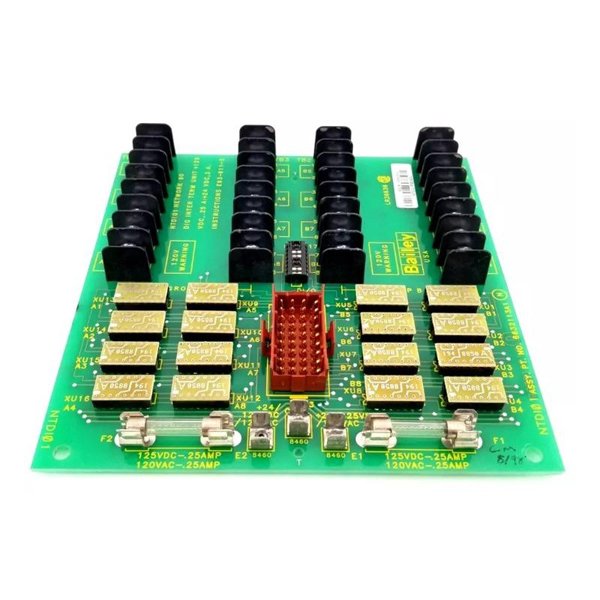

The ABB Bailey NTDI01 6632113A1 is a digital input/output termination unit designed for integration into the INFI 90 and Symphony series distributed control systems (DCS). Its primary function is to serve as the structured termination point for digital signals—typically discrete field inputs or outputs—facilitating reliable communication between plant-level devices (such as sensors and actuators) and the automation controller.

Known for its durability and precision, the NTDI01 module provides a secure interface that helps ensure signal clarity and robust wiring organization in control cabinets. It is engineered for long-term industrial operation and provides technicians with a well-labeled, easy-to-maintain wiring infrastructure.

The NTDI01 is a core component of ABB’s legacy Bailey control architecture and continues to play a critical role in plant modernization, expansion, and long-term maintenance strategies.

Technical Specifications

Applications

The NTDI01 6632113A1 module is widely used in industrial environments where reliable termination and management of digital I/O signals are essential. Typical applications include:

• Power Plants – Relay status indication, circuit breaker control, and turbine protection systems.

• Oil & Gas Facilities – Interface with limit switches, solenoid valves, and emergency shutdown systems.

• Water/Wastewater Treatment – Control for pump start/stop, level switches, and remote monitoring points.

• Metals and Mining – Interlocks, motor control logic, and conveyor safety switches.

• Chemical Processing – Digital field signal routing for alarms, valve actuation, and batch sequence logic.

• Manufacturing Automation – Integration of sensors, position detectors, and operator panel signals.

Product Advantages

• Dedicated Digital Signal Termination: Specifically optimized for clean routing of discrete signals with minimal cross-talk or noise.

• Clear Terminal Identification: Marked terminal layout enables quick and accurate wiring, reducing commissioning errors.

• Robust Build for Harsh Conditions: Industrial-grade plastic housing with reinforced terminal construction supports long-term use in demanding environments.

• Flexible Mounting Options: DIN rail or panel mounting provides easy adaptation to various cabinet designs.

• Low Maintenance Requirements: Requires only basic physical inspections; no software or firmware configuration necessary.

• Full ABB DCS Integration: Seamlessly connects with INFI 90 and Symphony digital I/O cards for legacy and modernized systems.

Frequently Asked Questions (FAQ)

1. What is the primary function of the NTDI01 module?

   It acts as a structured termination point for digital (discrete) input and output signals in a DCS cabinet.

2. Can NTDI01 handle mixed signal types on the same terminal block?

   No, it is designed specifically for digital signals; analog signals should be terminated using a dedicated analog termination module.

3. Does NTDI01 support shielded digital wiring?

   Yes, it includes provisions for grounding shielded cables to protect signal integrity in electrically noisy environments.

4. Is the NTDI01 suitable for use in safety interlock circuits?

   Yes, it is commonly used for hardwired interlocks, emergency stops, and other safety-related discrete control functions.

5. How are the terminals labeled for field wiring identification?

   The unit features labeled terminal blocks, and ABB provides terminal mapping in the installation documentation.

6. What wire size is compatible with NTDI01 terminals?

   Typically supports 0.5 mm² to 2.5 mm² (AWG 20 to 14) conductors, but check the ABB manual for exact specifications.

7. How should this unit be grounded inside a cabinet?

   Use the designated grounding strip or rail and ensure proper bonding to the cabinet’s common ground bus.

8. Can this module be installed in outdoor environments?

   No, it must be installed within a properly sealed and temperature-controlled control cabinet or enclosure.

9. How often should the NTDI01 be inspected?

   Visual checks every 6 to 12 months are typically sufficient, focusing on terminal tightness and corrosion.

10. Does this unit require firmware updates or software tools?

    No, the NTDI01 is a passive hardware component and does not require firmware or software configuration.
