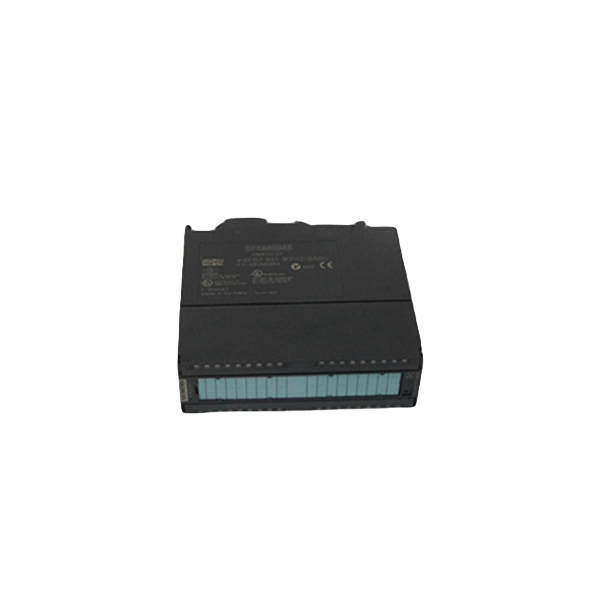

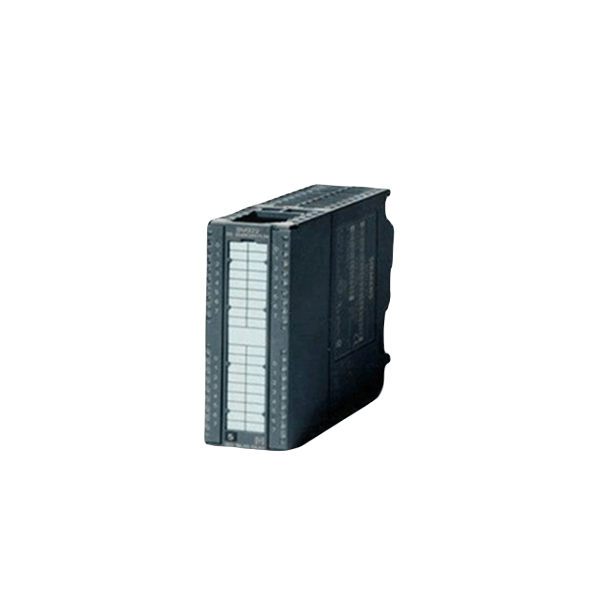

Siemens 6ES7331-7SF00-0AB0 Analog Input Module

The Siemens 6ES7331-7SF00-0AB0 is an isolated analog input module designed for the SIMATIC S7-300 series of programmable logic controllers (PLCs). It features 8 channels for thermocouples and 4 channels for Pt100 sensors, enabling measurement of signals from hazardous areas. The module is 1 x 20-pole and weighs 0.657 lbs. Additionally, it is diagnostics-capable and has undergone PTB testing for reliability.

Features

The module offers several notable features:

• Galvanic isolation: The input channels are galvanically isolated from the PLC, safeguarding it against potential damage from high voltages or currents.
• Hazardous area certification: It holds certification for use in hazardous environments, making it well-suited for industries such as oil and gas, chemical, and manufacturing.
• Diagnostics capability: The module incorporates built-in diagnostics that aid in identifying and troubleshooting issues.
• PTB testing: It has undergone testing and certification by the Physikalisch-Technische Bundesanstalt (PTB), Germany’s national metrology institute.

Technical Specifications

The module’s technical specifications include:

• Number of channels: 8 thermocouples, 4 Pt100 sensors
• Voltage range: 125V to 0 – 10V
• Current range: 20mA to 4mA
• Accuracy: ±0.1%
• Resolution: 16 bits
• Isolation voltage: 3kVrms
• Temperature range: -25°C to +70°C

Benefits

The Siemens 6ES7331-7SF00-0AB0 provides several benefits, including:

• Safety and reliability through its isolated design
• Certification for usage in demanding hazardous environments
• Convenient troubleshooting with built-in diagnostics
• Accurate and reliable performance confirmed by PTB testing

Applications

The module finds applications in various fields, such as:

• Temperature measurement
• Pressure measurement
• Flow measurement
• Level measurement
• Weight measurement
• Other process control applications
